Product Overview

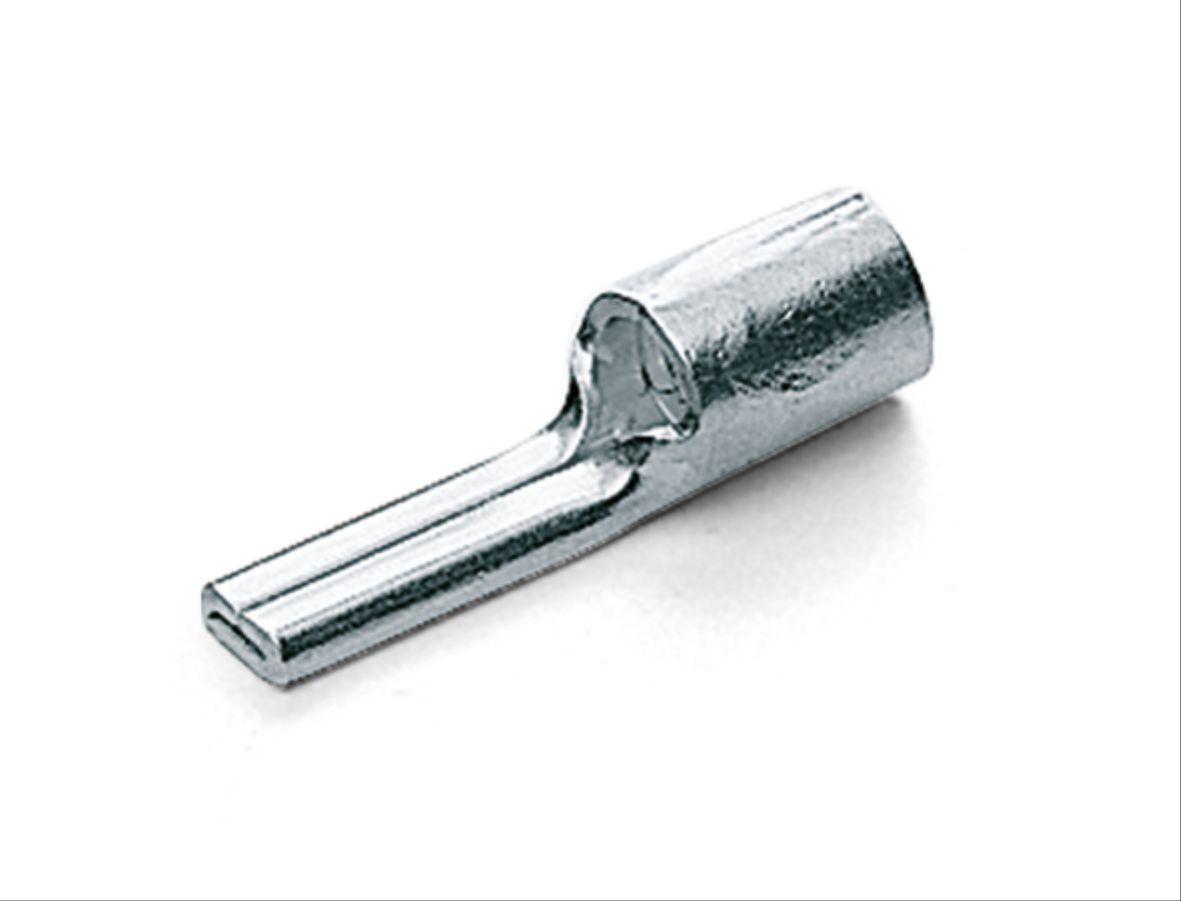

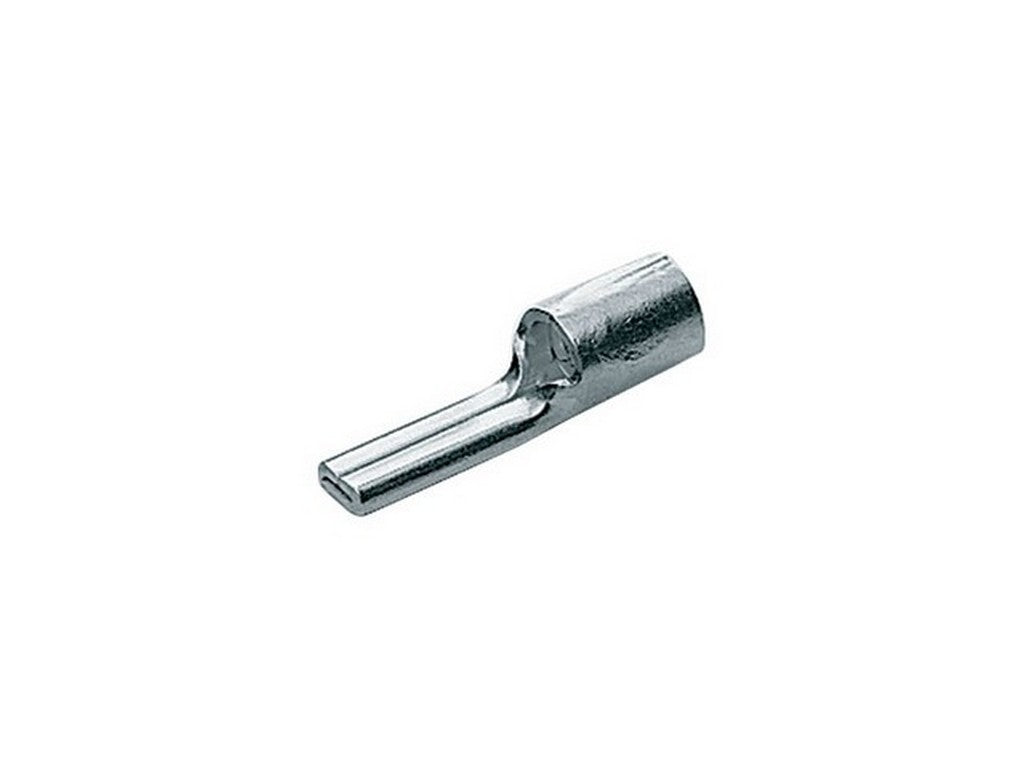

The A2-P12 from CEMBRE is a pin terminal from the A-P series, designed for terminating conductors in terminal blocks. The A2-P12 is specified for a conductor size of 10 mm² and is made from high-purity copper strip. The product's construction and surface treatment are specified by the manufacturer.Material and Treatment
- Made from copper strip with purity > 99.9%.
- Rolled, brazed seam, and tin-plated surface.
- Tip-type: flat and annealed.
Function and Application
The A2-P12 is used to create a mechanical and electrical connection between a conductor and a terminal block by inserting the pin terminal into the block. The manufacturer's specification of the compatible conductor size (10 mm²) and the dimensions provided for this type make the A2-P12 suitable for situations where precise dimensioning of the pin's length and fit is necessary.Typical Applications
The A2-P12 is designed to terminate conductors in terminal blocks, as indicated by the manufacturer.Practical Information

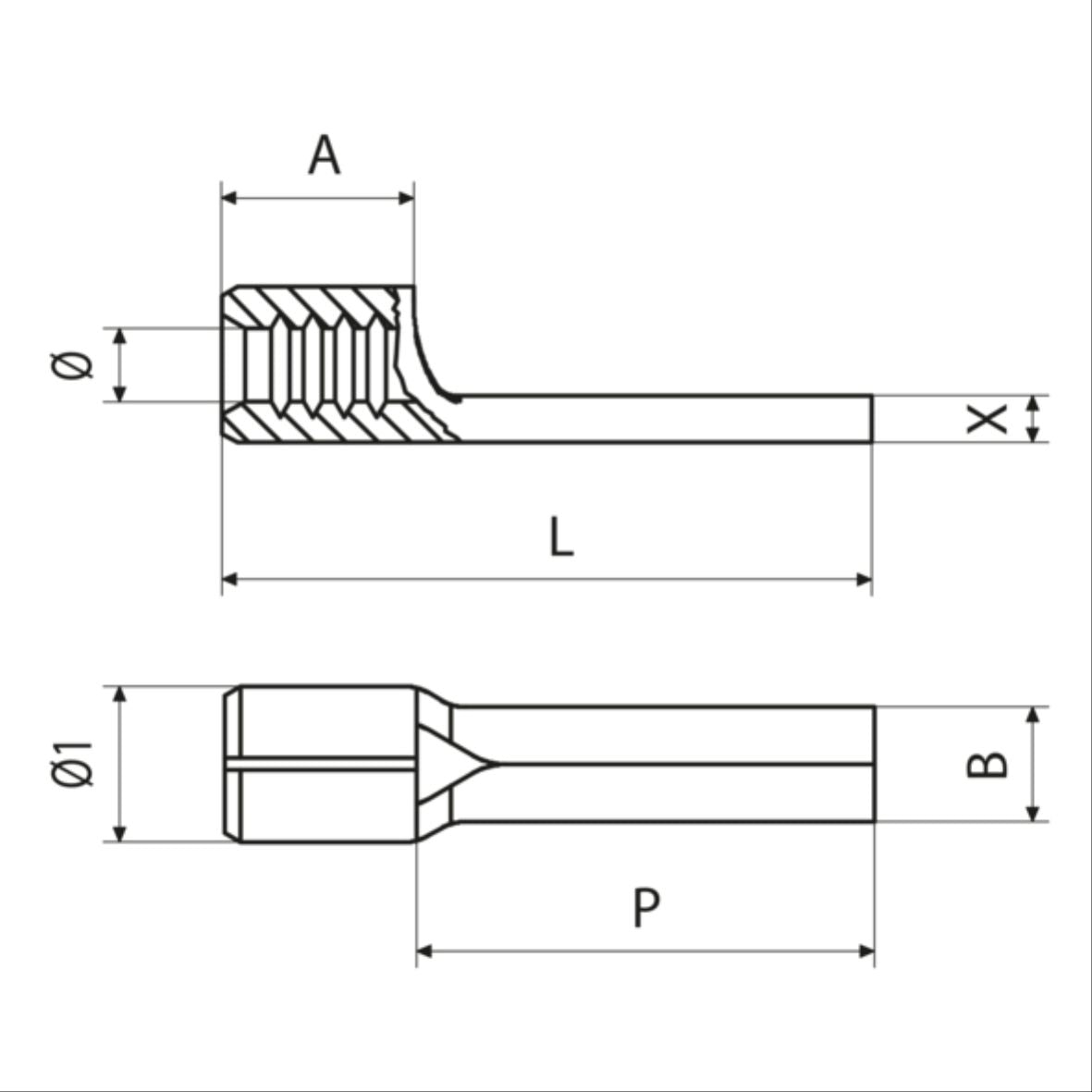

- Specified physical dimensions for A2-P12: P = 14.5 mm, L = 23.5 mm.
- Manufacturer's product family: A-P series.
Specifications
- Manufacturer: CEMBRE
- Product name / type: A2-P12 (A-P series)
- Manufacturer's part number: 2170650
- Specified conductor cross-section: 10 mm²
- Material: Copper strip, purity > 99.9%
- Surface treatment: Tin-plated
- Annealed: Yes
- Brazed seam: Yes
- Tip-type: Flat
- Specified dimensions: P = 14.5 mm; L = 23.5 mm
- Minimum operating temperature: -50 °C
- Maximum operating temperature: 150 °C
- RoHS: Yes
- Unit in minimum packaging: 100 pcs.
- Unit in standard packaging: 1500 pcs.
