Flat Pin Terminal: A5-P16
Description

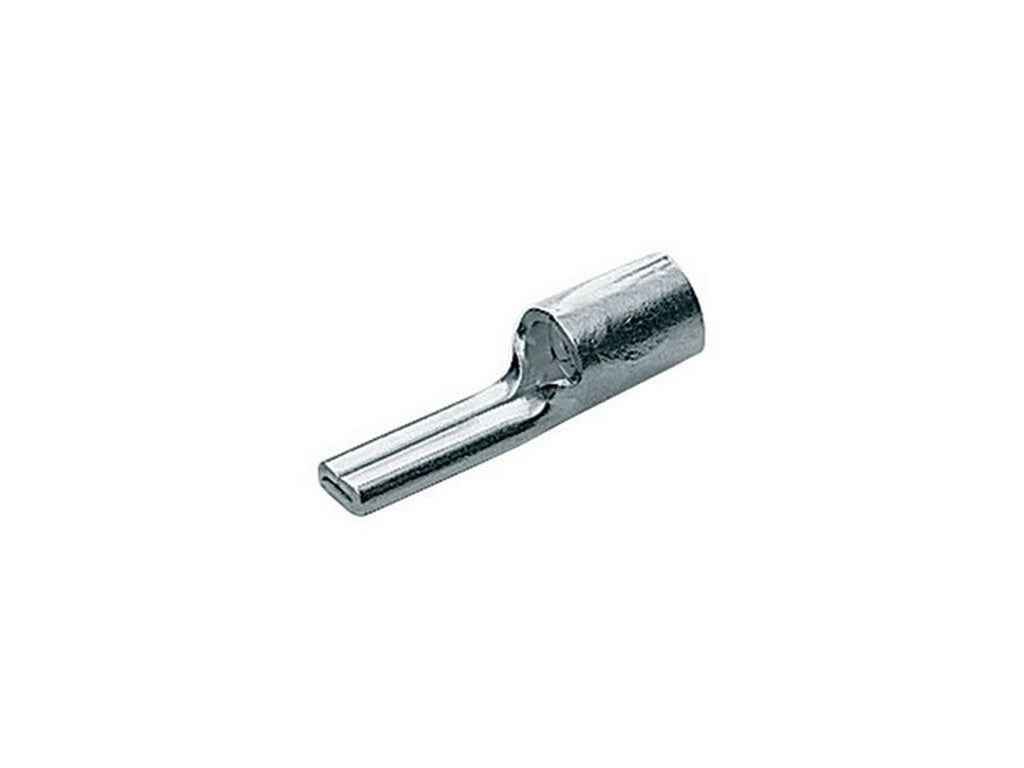

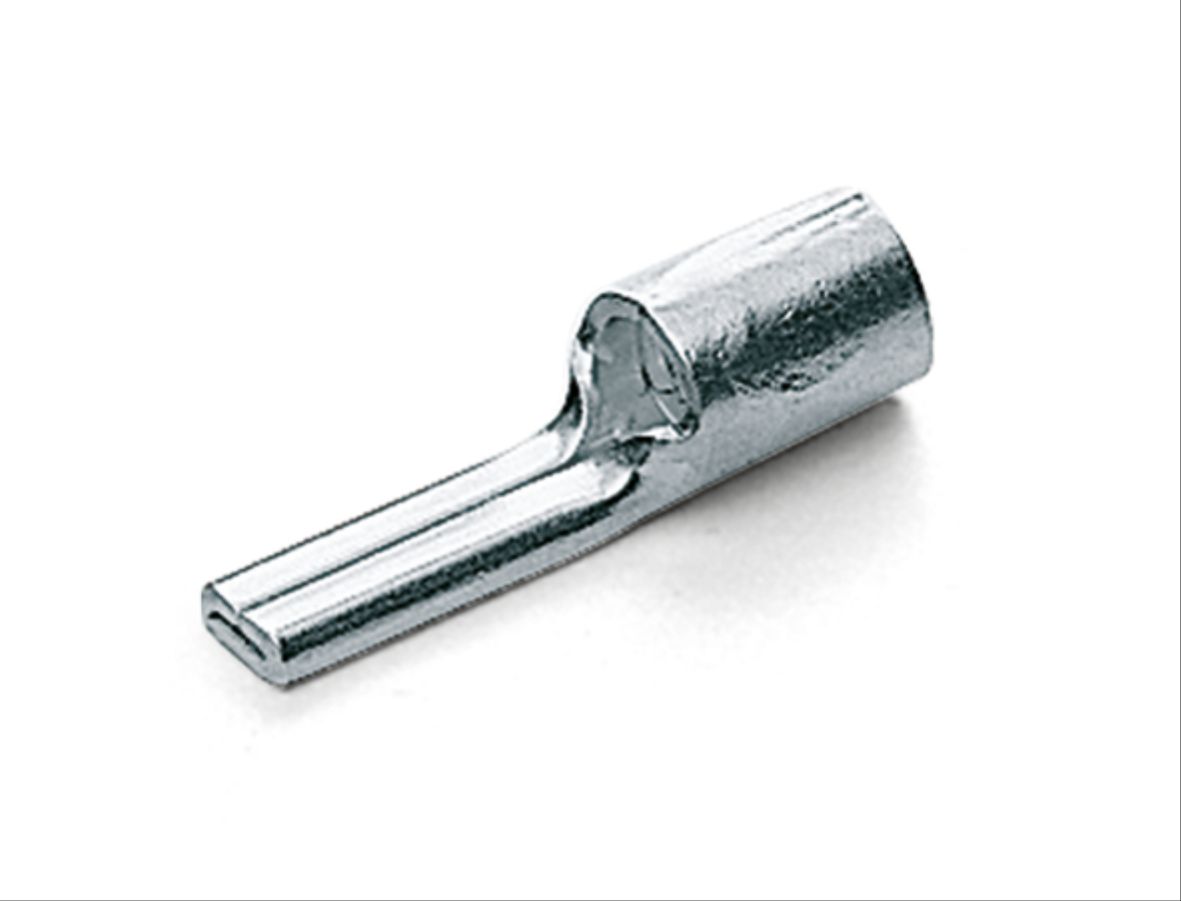

A5-P16 is a flat pin terminal in CEMBRE's A-P series, designed for the termination of copper conductors in contact blocks. The product is manufactured from copper strip with a documented high purity (stated as higher than 99.9%), and is annealed, brazed, and tin-plated.Function and Application
As a flat pin terminal, the A5-P16 is used to create a mechanical and electrical connection between a prepared copper conductor and a contact or terminal block. The terminal's profile and flat pin tip make it suitable for insertion into contact openings where a flat contact surface is required.Technical Properties (overview)
- Material and treatment: copper strip with purity >99.9%; annealed, brazed, tin-plated.
- Specified operating temperatures: minimum -50 °C, maximum 150 °C.
- Pin (P) length, cross-section and stripping: see specifications below.
Packing and Logistics
- A5-P16 is delivered in detailed packaging units with specified minimum and standard packaging size.
Specifications
- Product name: A5-P16
- Manufacturer: CEMBRE
- Manufacturer's item number: 2191510
- Product category: Flat pin terminal (A-P series) for copper conductors
- Recommended conductor cross-section: 25 mm²
- Material and treatment: copper strip with purity >99.9%; annealed, brazed, tin-plated

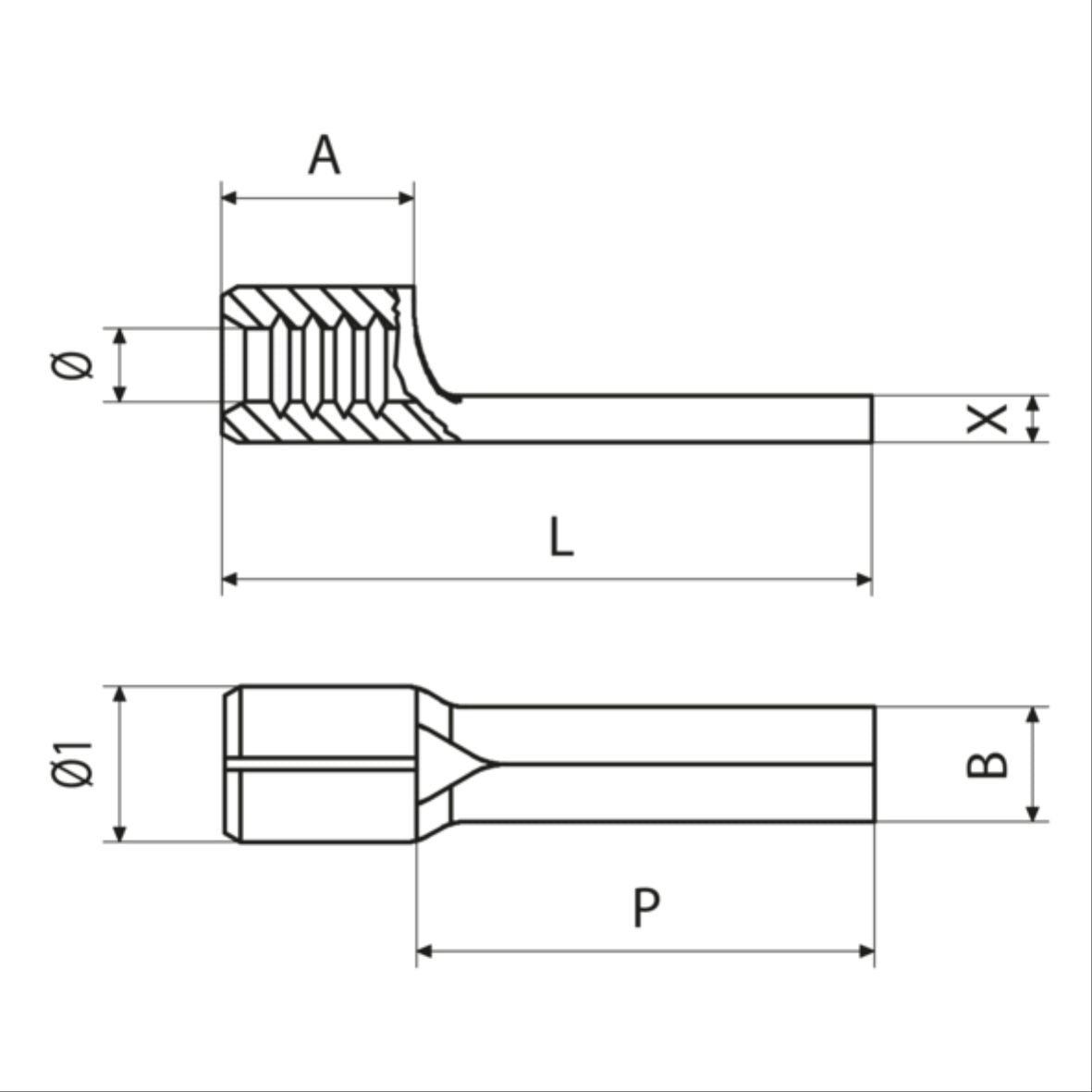

- Pin (P) length: 20.3 mm
- B: 7 mm
- L: 32 mm
- Stripping length (cable stripping length): 13 mm
- Surface treatment: Tin plating
- Minimum operating temperature: -50 °C
- Maximum operating temperature: 150 °C
- Packaging units: minimum 100 pcs, standard 500 pcs.
