Product Overview

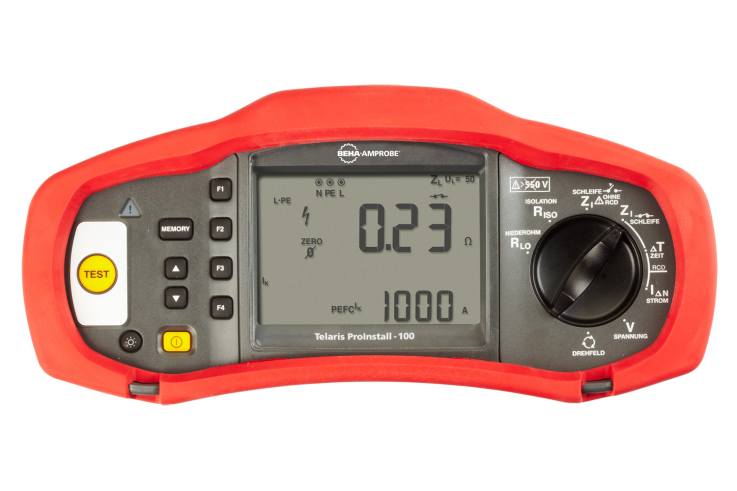

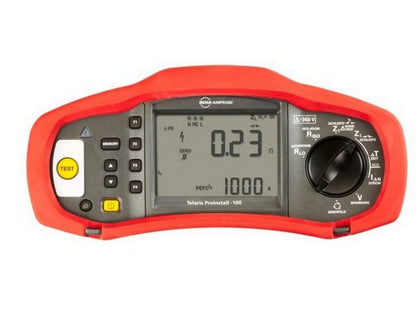

The ProInstall-100-DK is a multifunctional installation tester from Beha-Amprobe (AMPROBE). The device is configured to measure loop impedance, internal network impedance, short-circuit current, low resistance/continuity, insulation resistance, RCD/FI (touch voltage, trip time, trip current at rising current), as well as voltage and frequency. The ProInstall-100-DK includes an integrated socket test with contact electrode to identify incorrectly wired sockets or missing protective earth conductors.
Features and Storage
- Memory for approximately 400 measured values with 3 levels for assigning distribution and circuit numbers.
- IR/USB interface for transferring stored measured values to a PC (logging software is listed as an option on the manufacturer's website).
- Large, backlit LCD with wide viewing angle and automatic shut-off function.
- Probe with test button and option for measuring loop resistance and short-circuit current without tripping the RCD/FI.
- Illuminated weight: 1500 g (listed as a product highlight on the manufacturer's website).
Typical Applications
The ProInstall-100-DK is used to verify the safety of electrical installations in residential, commercial, and industrial settings, including testing and documentation of:
- Loop and short-circuit conditions in fixed installations.
- Insulation resistance and continuity for conductors and protective conductors.
- RCD/FI function: touch voltage, trip time, and trip current at rising current.
- Measurement and logging of voltage and mains frequency.
Documentation
Product information and article number (4399247) are taken from the manufacturer's product page. Source: Beha-Amprobe product page - https://www.beha-amprobe.com/en/products/installation-testers/proinstall-100-dk
Specifications
- Product Name: ProInstall-100-DK.
- Manufacturer: Beha-Amprobe (AMPROBE).
- Article number / manufacturer no.: 4399247.
- Measured parameters: loop resistance, internal network resistance, short-circuit current, low resistance/continuity, insulation resistance, RCD/FI (touch voltage, trip time, trip current), voltage and frequency.
- Memory: approx. 400 measurements, 3 assignment levels.
- Data transfer: IR/USB interface.
- Integrated socket test with contact electrode.
- Display: large backlit LCD.
- Functions: Auto Power Off; probe with test button.
- Weight indicated: 1500 g.
