Product Overview

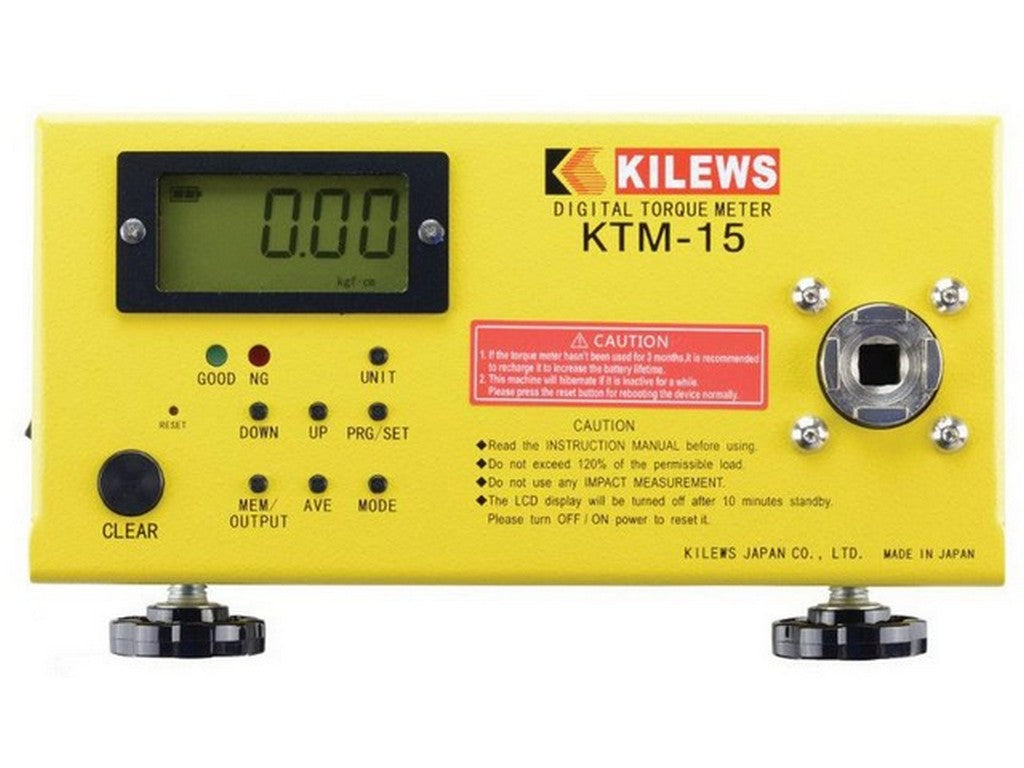

This KTM-15 torque meter from KILEWS is a measuring instrument for quantitative determination of torque in the range 0.015–1.500 N·m. The unit is specified with an accuracy of ±0.5% and comes with a rechargeable Ni‑MH battery. The KTM-15 has a built-in USB connection for data output and functions for automatic calculation of maximum, minimum, and average values, as well as an auto-zero function.
Key Features
- Measuring range: 0.015–1.500 N·m.
- Accuracy: ±0.5%.
- Power supply: 4.8V DC (Ni‑MH rechargeable battery, 1.2V × 4 cells, 1650 mAh).
- USB connector for data output.
- Functions: auto-zero and automatic calculation of maximum, minimum, and average values.
- Included measuring adapters: AJ-15 and AJ-3.
Typical Applications
The product is stated as suitable for use with "shut off type" screwdrivers. The KTM-15 is used for measuring and verifying torque from this type of tool, where USB data output and automatic registration of extreme values are desired.
Documentation
The information in this text is based on the manufacturer's product page for the KTM-15 from KILEWS.
Specifications
- Model: KTM-15.
- Measuring range (N·m): 0.015–1.500 N·m.
- Accuracy: ±0.5%.
- Power supply: 4.8V DC Ni‑MH (1.2V × 4 cells, 1650 mAh).
- Charging time: 3 hours.
- Operating time: approx. 12 hours (specified).
- Battery life: Rechargeable ≥300 times (depends on operating conditions).
- Size: 230 × 125 × 65 mm.
- Weight: 1.8 kg.
- Exclusive charger: Input AC100V–240V 50/60Hz, Output DC12V 400mA.
- Interface: USB connector for data output.
- Functions: Auto-zero; automatic maximum, minimum, and average values.
- Included accessories: Torque measuring adaptors AJ-15 and AJ-3.
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
