Fluke T6-600 Electrical Tester
This electrical tester from FLUKE, the Fluke T6-600 Electrical Tester, uses FieldSense technology to measure AC voltage, current, and frequency without the need for metallic contact with the live conductor. The instrument can also measure AC/DC voltage and resistance using test leads. Information and technical details are based on Fluke's official documentation.
Function and Measurement Methods
- FieldSense measurement for AC voltage without test leads: up to 600 V AC.
- FieldSense measurement for AC current: 0.1–200 A AC (no test leads).
- With test leads: measurement of AC/DC voltage up to 600 V and resistance from 1 Ω to 2000 Ω.
- FieldSense frequency measurement stated in documentation (45 Hz–66 Hz).
The product comes with attached test leads with detachable 4 mm probe caps and a Quick Reference Guide. Official manufacturer manuals and data sheets are available via Fluke's website.
Further technical documentation: See data sheet from manufacturer
Typical Applications

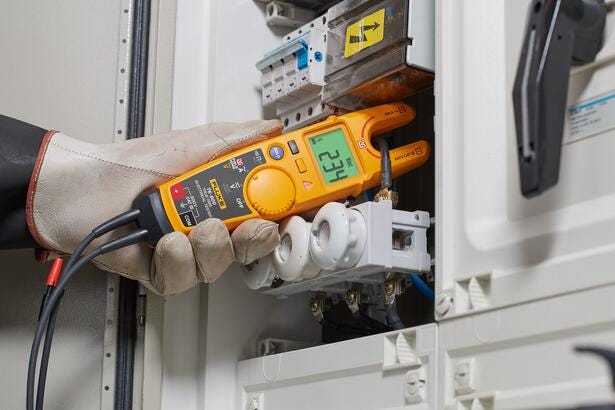

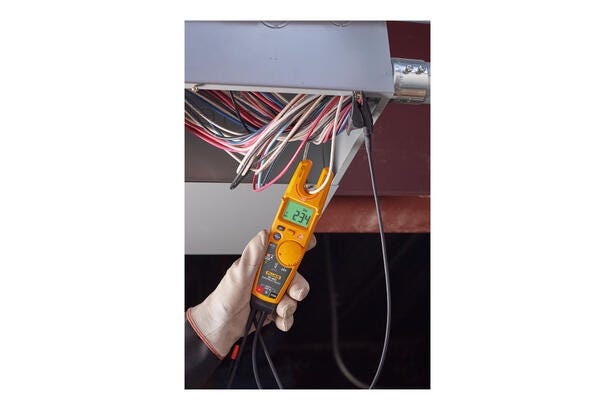

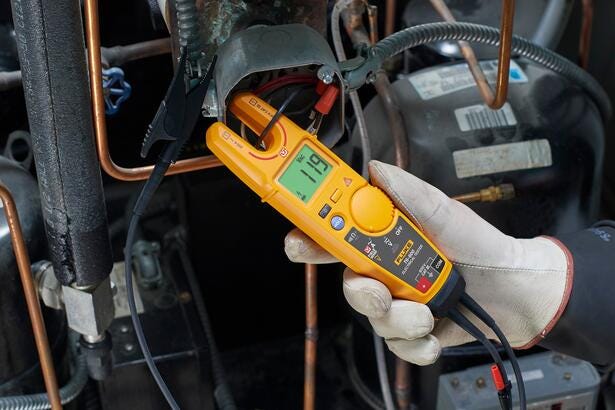

- Used to measure AC voltage without direct metallic contact to the conductor (FieldSense).
- Used to measure AC current without test leads within the measurement ranges specified by the manufacturer.
- Used to measure AC/DC voltage and resistance by connecting test leads.
- Used for frequency measurement within the specified range (45 Hz–66 Hz).
Specifications
- Product name: Fluke T6-600 Electrical Tester
- Technology: FieldSense (AC voltage, current, and frequency without metallic contact)
- FieldSense measurement range, AC voltage: up to 600 V AC
- FieldSense measurement range, AC current: 0.1–200 A AC
- With test leads: AC/DC voltage up to 600 V
- Resistance with test leads: 1 Ω to 2000 Ω
- Frequency (FieldSense): 45 Hz–66 Hz
- Fork opening: 17.8 mm
- Conductor tolerance: accepts conductors up to AWG 4/0 (120 mm²)
- Safety category: 600 V CAT III
- Included accessories: attached test leads with detachable 4 mm probe caps, Quick Reference Guide
- Dimensions: 61.1 mm x 259.3 mm x 43.8 mm
- Weight: 0.35 kg
- Battery type and life: 2 x AA; approx. 360 hours continuous, typical (200 hours when using FieldSense)
- Calibration interval: 1 year
