Product Description

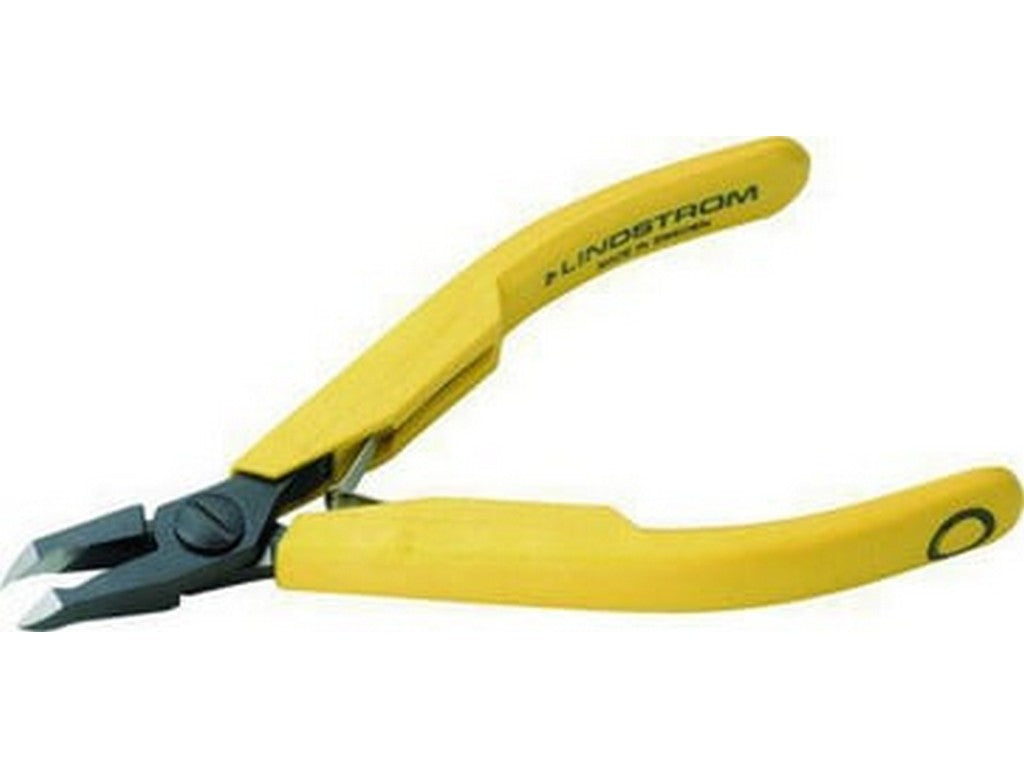

This precision 45° oblique cutter, Lindström 8247, is a hand tool in the 80 series designed for flush-cutting solid copper wire. The Lindström 8247 features a tapered 45° angled head and is designed for precise cuts with minimal wire recoil.Design and Materials
- High-performance alloy steel with burnished finish.
- Cutting edges induction hardened to 63–65 HRC.
- ESD-safe mono-material handles with return spring.
- Screw joint that minimizes friction and maximizes cutting edge alignment.
- Numerically controlled machine grinding for accurate cutting angle and contact.
Documentation
Further technical details and product information can be found in the manufacturer's datasheet:
View datasheet from manufacturer
Typical Applications
- Suitable for rework and close assembly (indicated by the manufacturer as "Ideal for rework & close assembly needs").
Specifications
- Product: Lindström 8247
- Series: 80 series oblique cutter
- Angle: 45° angled head
- Head: Tapered head
- Cutting Capacity (copper wire, solid): 0.2 mm–1.0 mm
- Cutting Edge Hardness: 63–65 HRC (induction hardened)
- Length: 117.5 mm
- Weight: 51 g
- Handles: ESD-safe mono-material with return spring
- Surface: Burnished finish
- Other: Screw joint, numerically controlled machine grinding, indicated as dissipative
Content generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
