SCS/DESCO 770051 ESD Event Diagnostic Kit
The SCS/DESCO 770051 ESD Event Diagnostic Kit is a portable diagnostic kit for the detection and measurement of electrostatic discharge (ESD). The kit provides real-time data to validate an ESD process one area at a time and includes both hardware and software for collecting and storing ESD events.
Content and Functionality
- SMP software license for data collection and storage from continuous ESD monitors.
- Four EM Aware monitors (770066) for continuous monitoring of ESD events, changes in static fields, and ionizer performance.
- 5‑port Ethernet switch and five CAT5E cables for network connection of the monitors.

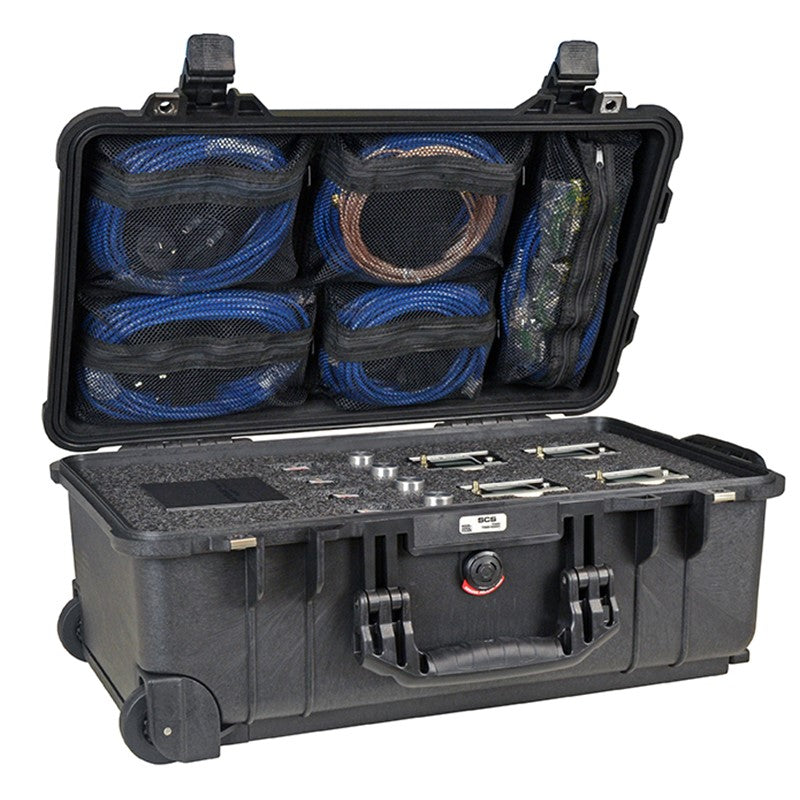

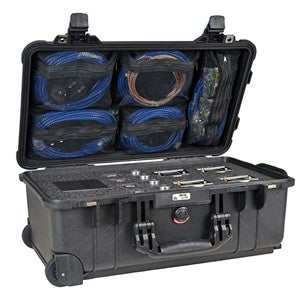

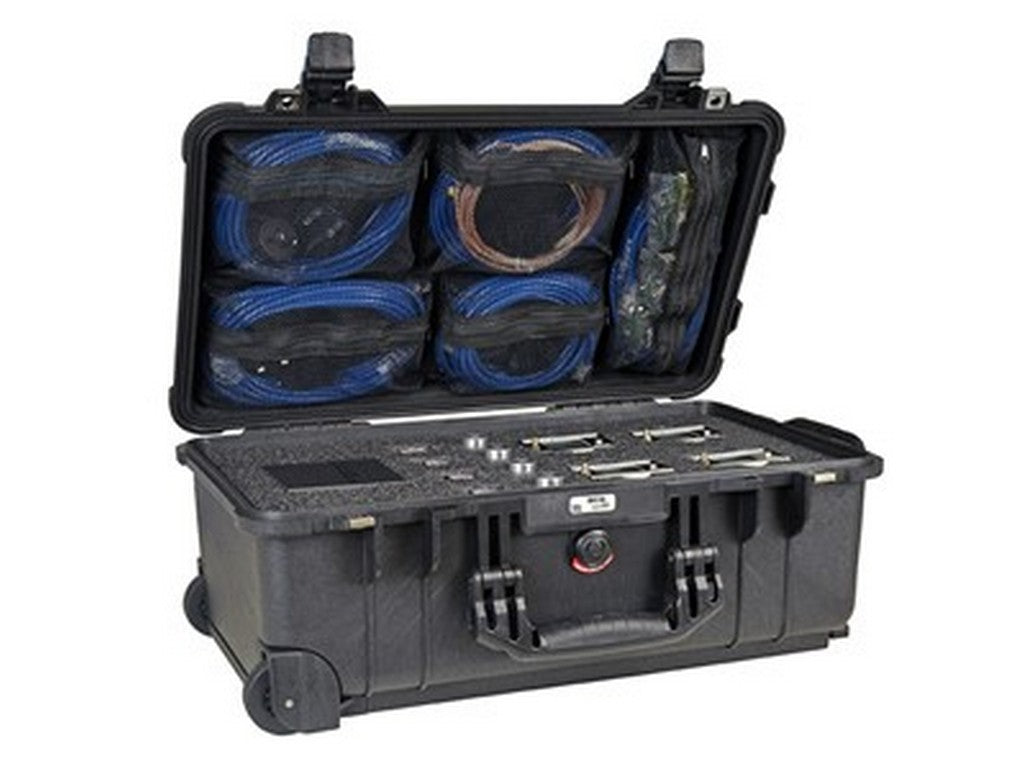

- Pelican 1510 transport case with lid organizer and custom-cut foam for storage.
SMP (Static Management Program) collects data from workstations, equipment, and continuous ESD monitors to provide a real-time picture of the monitored process, with the ability to store activity in a database for quality control and trend analysis.
Note: EM Aware monitors are compatible with critical environment ionizers only if the ionizer has a balance (offset voltage) of ±40 V or better.
For detailed operation and maintenance information, see the manufacturer's user manual:
Typical Applications
- Detection and measurement of ESD events in a defined area.
- Validation of an ESD process one area at a time using real-time data.
Specifications
- Included EM Aware monitors: 4 × 770066
- Network equipment: 5‑port Ethernet switch
- Cables: 5 × CAT5E (25 ft. according to packing list in user manual)
- Transport case: Pelican 1510 Carry-On Case with lid organizer and foam insert
- Dimensions (case): 22.0" x 13.8" x 9.0" (559 mm x 351 mm x 229 mm)
- Weight (total kit): 24.0 lbs (10.9 kg)
- Country of Origin: United States of America
