ESD-Dissipative Turntable

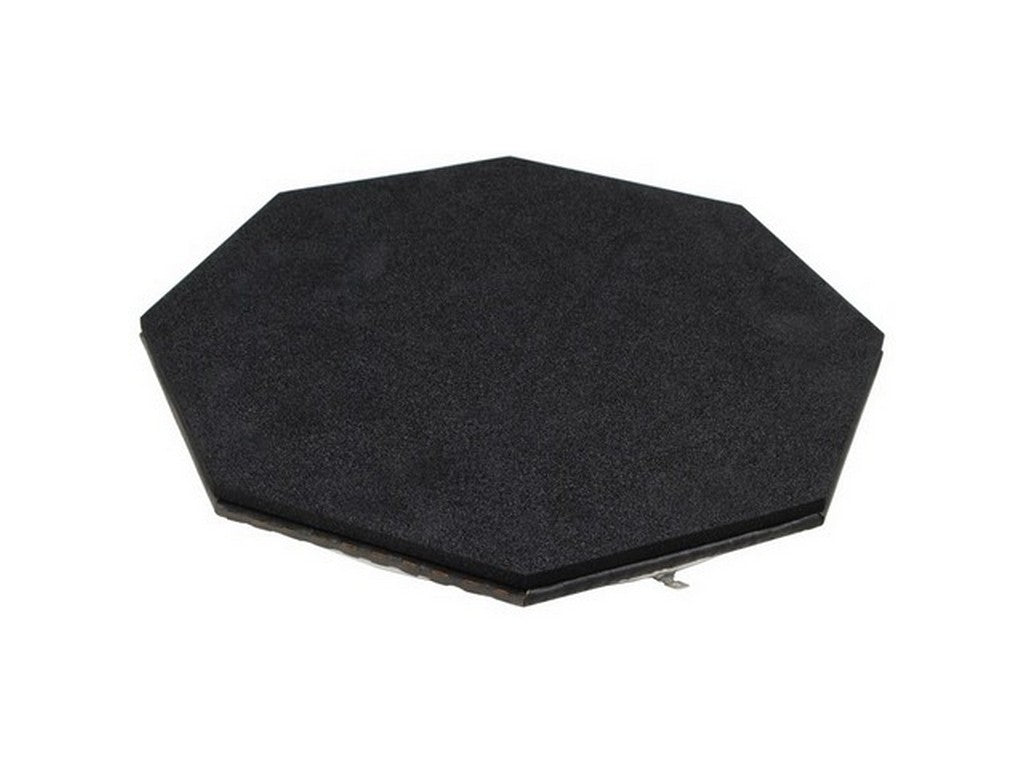

This ESD-dissipative turntable from DESCO, model 47200, is designed as a rotatable, dissipative work surface for handling electrostatic charges. The product is clearly identified in the manufacturer's text as an ESD-dissipative turntable with specified materials, electrical properties, and mounting options.

Product Details

  • Model: 47200 (DESCO).
  • Work Surface: 12.5 in (318 mm) octagonal measured "across flats".
  • Top Material: 1/4 in (6.35 mm) conductive, cross-linked polyethylene foam.
  • Substructure: Galvanized steel turntable located at the base.
  • Profile: Low profile, approximately 1 in (25.4 mm) high.
  • Weight Capacity: 50 lb (23 kg).
  • Electrical Characteristic: Measured volume resistance 1 x 10^6 to < 1 x 10^9 ohms according to ANSI/STM11.12.
  • Worksurface Compliance: Meets ANSI/ESD S20.20 per ANSI/ESD S4.1 and ESD TR53 (stated by manufacturer).
  • Grounding: Electrostatic charges are dissipated to ground via contact with a grounded ESD work surface or by using a ground wire to the ring terminal.
  • Origin: Made in USA (stated by manufacturer).

Documentation

For technical reference and manufacturer information: See manufacturer datasheet

Typical Applications

The 47200 is used to remove electrostatic charges by providing a dissipative, rotatable work surface. Dissipation occurs either through direct contact with a grounded ESD work surface or by connecting a ground wire to the unit's ring terminal.

Specifications

  • Model Number: 47200.
  • Work Surface: 12.5 in (318 mm) octagonal (across flats).
  • Top Material Thickness: 1/4 in (6.35 mm) cross-linked polyethylene foam (conductive).
  • Base Material: Galvanized steel (turntable at the base).
  • Height: approx. 1 in (25.4 mm).
  • Weight Capacity: 50 lb (23 kg).
  • Volume Resistance: 1 x 10^6 to < 1 x 10^9 ohms (ANSI/STM11.12).
  • Compliance: Meets worksurface limits in ANSI/ESD S20.20 per ANSI/ESD S4.1 and ESD TR53.
  • Grounding: Ring terminal for ground wire or contact with grounded ESD work surface.
  • Manufacturer: DESCO. Made in USA.
