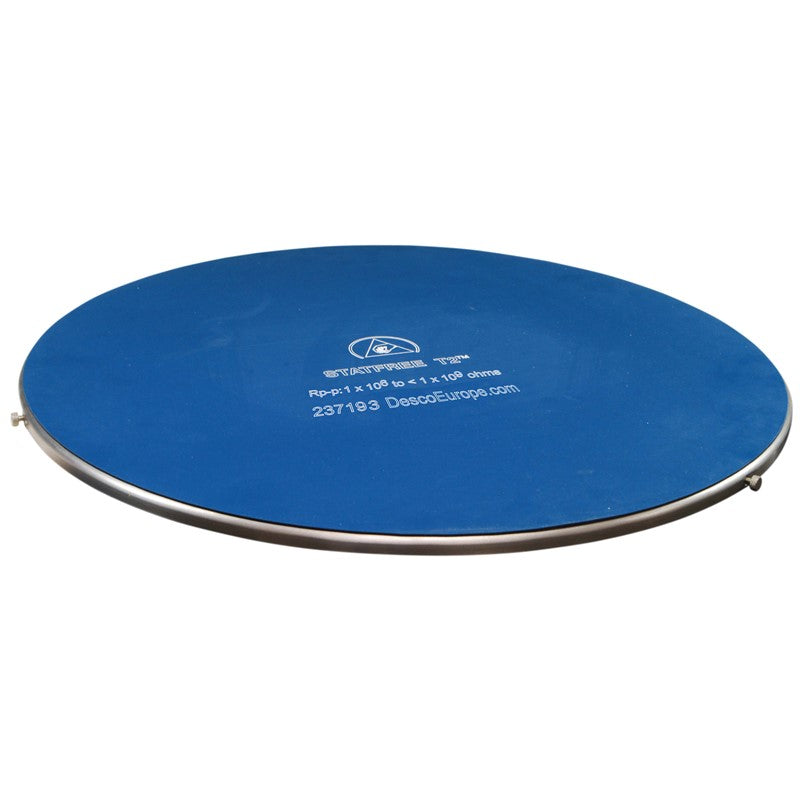

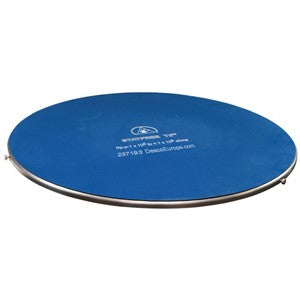

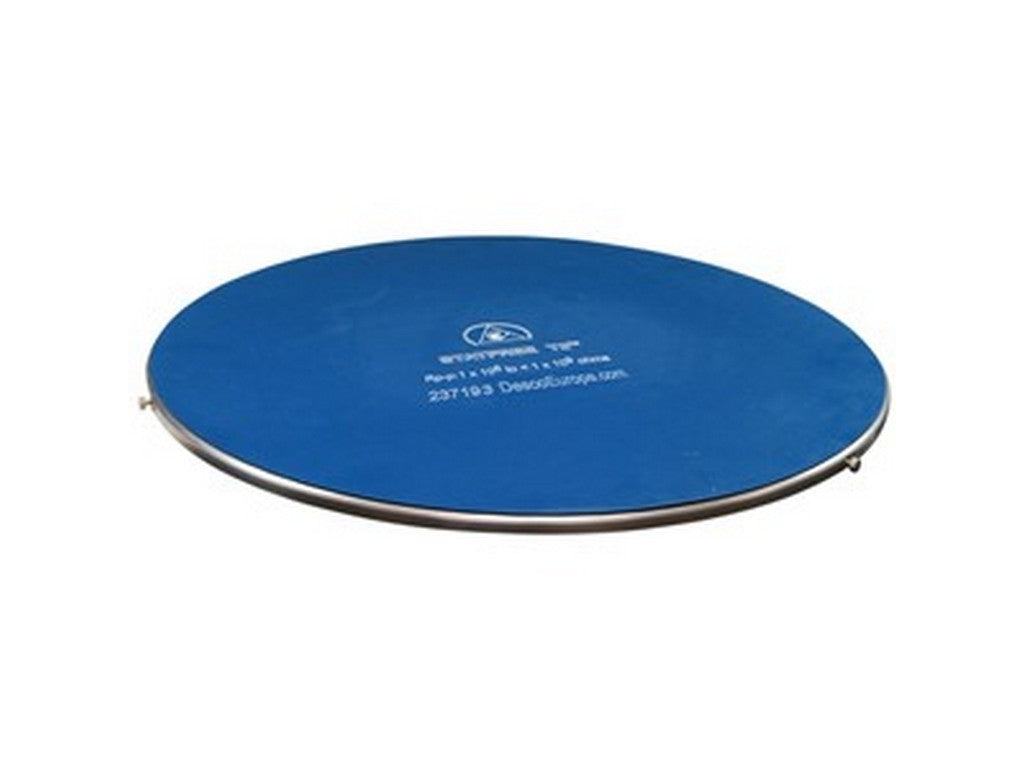

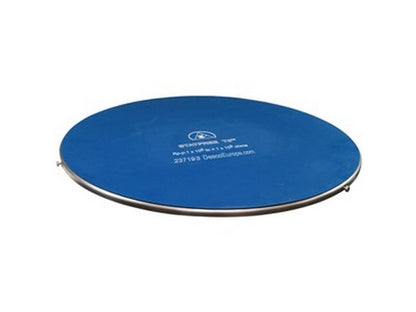

DESCO 237193 Gyro-Stat® Bench Top Turntable — Bench-top ESD turntable
This DESCO 237193 Gyro-Stat® bench-top ESD turntable is designed to allow for the rotation (bidirectional) of heavy, large, or awkward items directly on a workbench without manual handling of the product itself. The unit has a 390 mm diameter and a maximum load capacity of 100 kg. The turntable has a 16 mm low profile and is made of stainless steel.
Technical details
- Diameter: 390 mm
- Profile height: 16 mm
- Base material: Stainless steel
- Max. load: 100 kg
- Volume resistance: 1 x 10^7 to < 1 x 10^9 ohms (specified in product data)
- Bearings: Conductive lubricated ball bearings
- Top mat: Pre-installed Statfree T2™ dissipative two-layer rubber mat
- Mat's electrical value (Rg): 1 x 10^6 to < 1 x 10^9 ohms per IEC 61340-2-3 and ESD TR53
- Locking: Three thumbscrew locks for temporary securing
- Origin: Gyro-Stat® turntable is manufactured in England
The unit can be electrically connected to a grounded ESD mat or a grounded surface to ensure a path-to-ground; Rg can be verified with a resistance meter. Replacement mat is available as part number 237194 (specified in manufacturer documentation).
For detailed manufacturer information and installation instructions, please refer to the manufacturer's technical bulletin:
See datasheet from manufacturer
Typical applications
- Rotation of heavy, large, or awkward assemblies on a workbench to avoid manual repositioning of the product (bidirectional rotation).
Specifications
- Base Material: Stainless steel
- Profile: 16 mm
- Diameter: 390 mm
- Load Rating: 100 kg
- Volume Resistance: 1 x 10^7 to < 1 x 10^9 ohms
- Mat Top: Statfree T2™ dissipative two-layer rubber
- Mat Top Electricals: Rg 1 x 10^6 to < 1 x 10^9 ohms per IEC 61340-2-3 and ESD TR53
- Locking Mechanism: Three thumbscrew locks
- Bearings: Conductive lubricated ball bearings
- Original manufacturer documentation: DESCO technical bulletin TB-7601
