Product Overview
The Fluke 805ES is an external vibration sensor designed for use with the Fluke 805 Vibration Meter. The sensor is specified to measure vibrations within a defined measurement range and frequency range and is made of a robust housing material.
Key Features
- External sensor designed for the Fluke 805 Vibration Meter.
- Low-profile, 90-degree sensor housing with coiled cable.
- Connection via SMB connector.
Documentation
Further product information and specifications can be found on the manufacturer's product page.
Source: Fluke product page for 805ES
Typical Applications

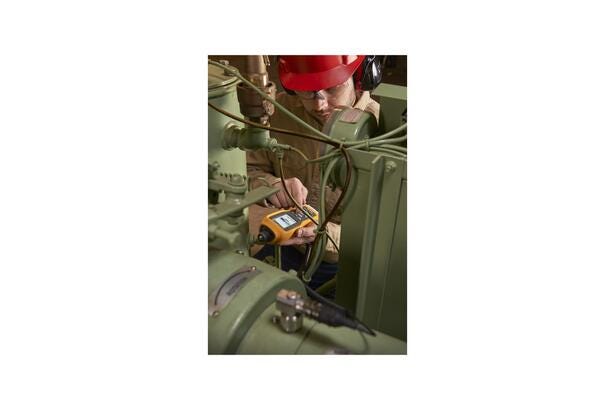

Used as an external vibration sensor for the Fluke 805 Vibration Meter for measuring vibrations within the specified measurement and frequency range.
Technical Description
The Fluke 805ES features an aluminum alloy housing and a magnetic measurement sensor. The sensor has a low-profile design with a 90-degree sensor body, allowing mounting with a 0.25 in (6.4 mm) mounting screw. The sensor comes with a coiled cable and connects to the measuring device via an SMB connector. The ingress protection rating is specified as IP66.
Specifications
- Product Name: Fluke 805ES
- Manufacturer Part Number: 4636786
- Measurement Range: 7 g pk (68.7 m/s² pk)
- Frequency Range: 0 to 6000 cpm (0 to 100 Hz)
- Housing Material: Aluminum alloy
- Measuring Element: Magnet
- Ingress Protection: IP66
- Connection: SMB connector
- Sensor Shape: Low-profile, 90 degrees
- Cable: Coiled cable
- Mounting Hole: 0.25 in (6.4 mm)
Source: Manufacturer's product page for Fluke 805ES.
The content is generated using AI – subject to errors.
Contact HIN for further information about the product.
