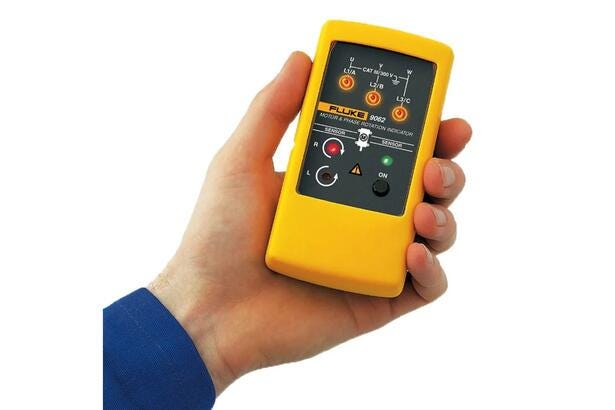

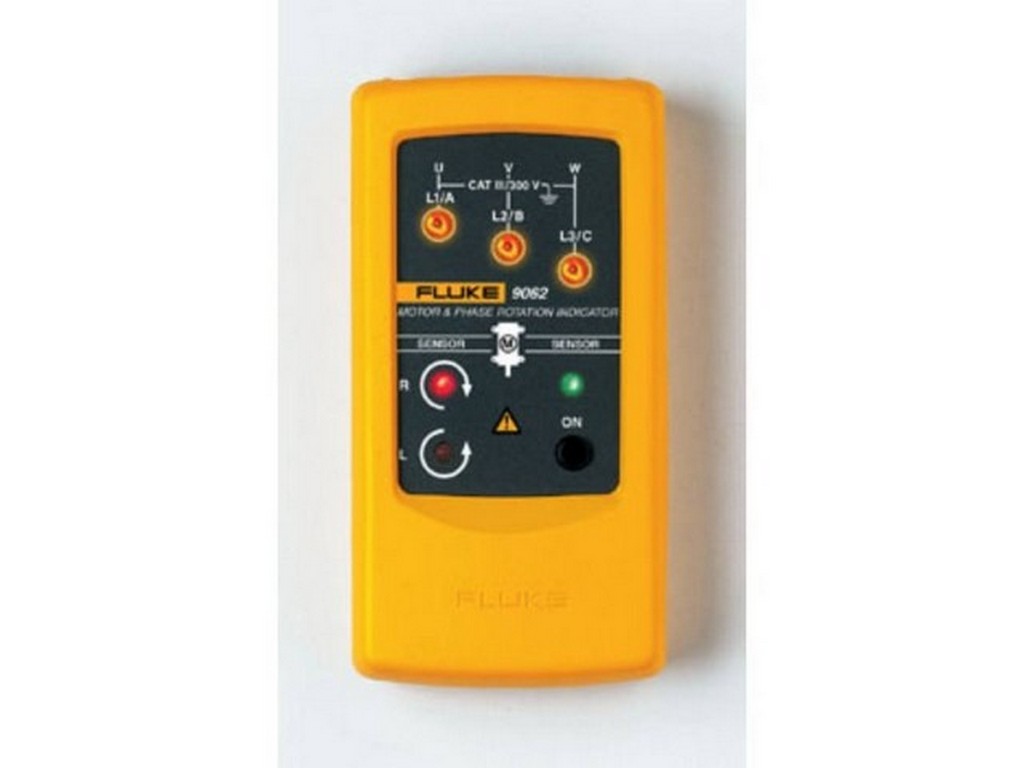

Fluke 9062 motor and phase rotation tester
The Fluke 9062 is a handheld instrument for working on three-phase installations and motors. It is used to determine phase sequence and motor rotation direction, allowing for quick checks to ensure a motor is running in the correct direction before proceeding with troubleshooting or commissioning.
What makes it particularly relevant in practice is its contactless measurement capability on running motors. This means that the rotation direction can be determined without accessing the shaft itself, which is a significant advantage when access is difficult or when a quick check is needed.
The instrument indicates phase sequence at voltages from 120 to 400 V AC and can be used up to 400 V. This covers typical tasks where three-phase supply and motor rotation direction need to be checked. The frequency range is from 2 to 400 Hz, making it suitable for various electrical and motor environments.
It comes with three test leads, three test probes, and three alligator clips. This makes it ready for general use directly in control panels, on terminals, and at measurement points where secure connection is required.
For a professional user, it is a practical control tool for avoiding incorrect motor rotation direction or quickly confirming phase sequence in a three-phase installation.
Specifications
- Handheld motor and phase rotation tester
- Shows phase sequence and motor rotation direction
- Contactless determination of rotation direction on running motors
- Voltage range: up to 400 V
- Phase indication: 120–400 V AC
- Frequency range: 2–400 Hz
- Powered by 1 x 9 V battery
- Supplied with 3 test leads, 3 test probes, and 3 alligator clips
- Complies with EN 61010 and EN 61557-7
- Overvoltage category: CAT III 300 V
- IP40
