PG II — Two-pole Phase Comparator

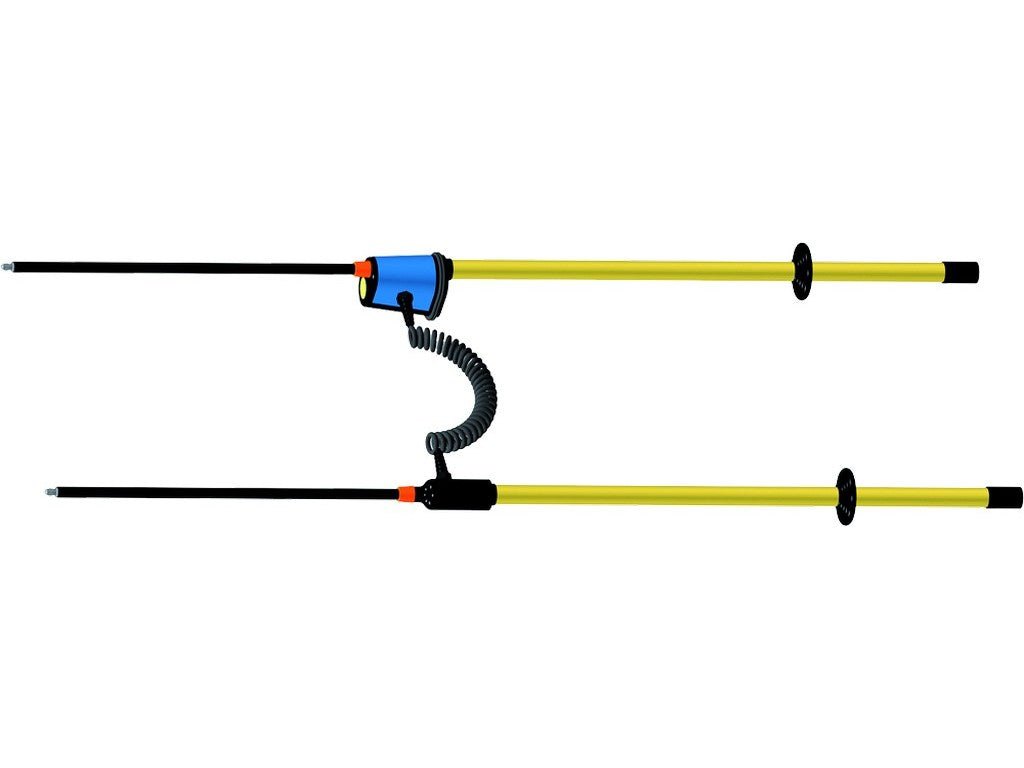

The PG II is a two-pole phase comparator from HORSTMANN for determining phase equality between two live conductors in medium-voltage networks. The system consists of part A, an operating rod with an integrated contact electrode and display unit, and part B, a separate operating rod with a contact electrode for recording the reference value. The insulating rod can be separated from the display unit for safe handling and space-saving transport. The contact electrodes A and B are connected by a spiral, high-voltage-resistant cable designed for medium-voltage use. The unit is intended for indoor use in dry conditions and uses visual indication via three red LEDs to show phase status. The PG II is designed in accordance with IEC 61481-2:2014 and is subject to mandatory retesting every 6 years according to DGUV regulation 3 (table 1c).Typical Applications
- Determination of phase equality between two live conductors in medium-voltage networks.
- Use in switchgear rooms and network areas where clear phase responsibility must be established.
Documentation
Further technical documentation and product specifications can be found on the manufacturer's product page. Source: HORSTMANN product page for PG II.Specifications
- Product: PG II (two-pole phase comparator).
- Manufacturer: HORSTMANN.
- Standard: IEC 61481-2:2014.
- Retesting: Mandatory retesting every 6 years according to DGUV regulation 3 (table 1c).
- Use: In dry conditions, normally indoors.
- Display: Optical, 3 red LEDs.
- Nominal frequency: 50 Hz (optional 60 Hz).
- Max. operating time at voltage: 60 s.
- Connection cable length (spiral cable): 1 m.
- Operating class: B (display of phase imbalance in the range 60°–300°).
- Operating temperature: -25 °C to +70 °C, climate class N and W.
- Components: Part A (operating rod with contact electrode and display), Part B (separate operating rod with contact electrode), spiral high-voltage-resistant cable.
- Version examples (extract): Rated voltage 10–12 kV, total length 1,220 mm, immersion depth 413 mm, item number 51-0102-006.
