Product Overview

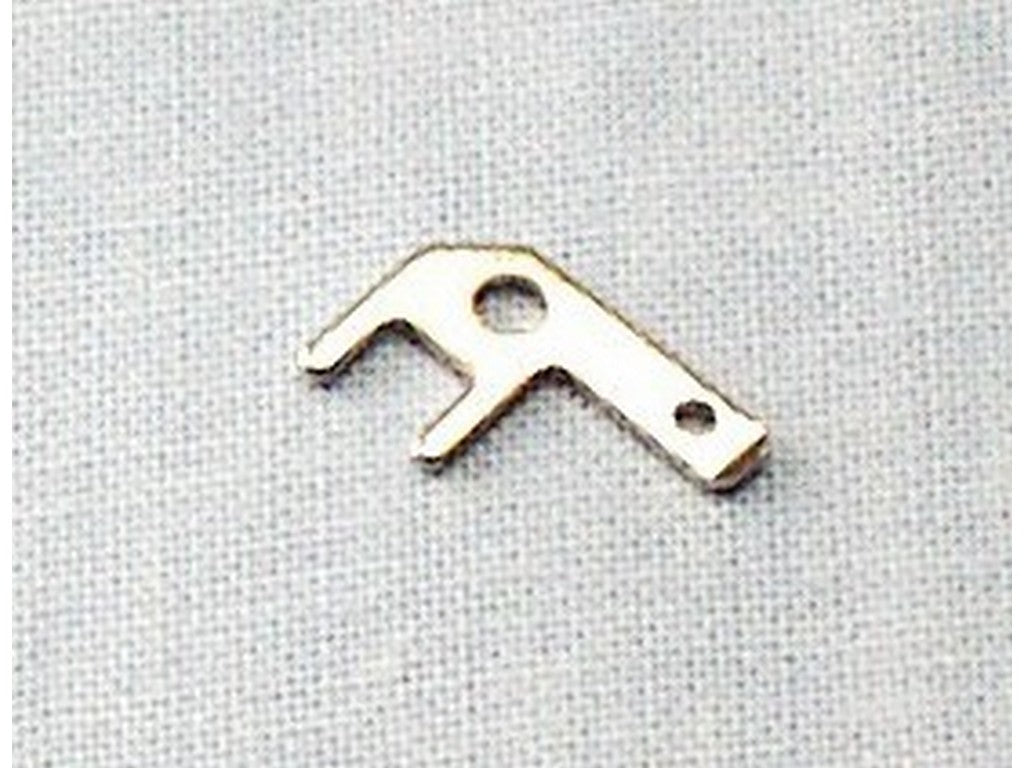

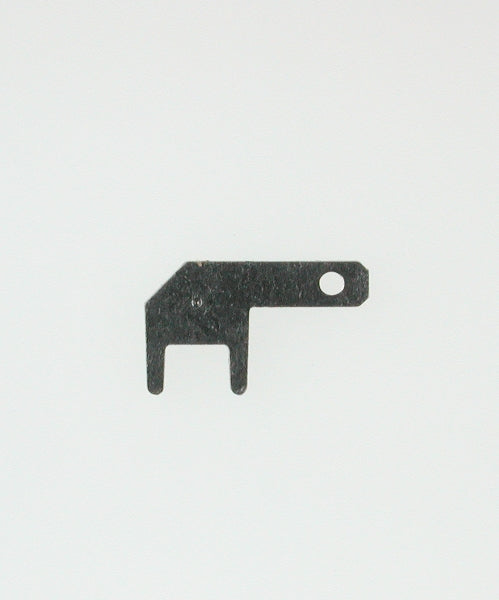

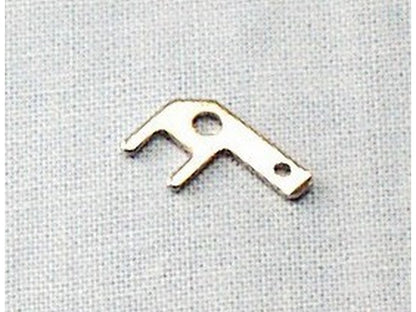

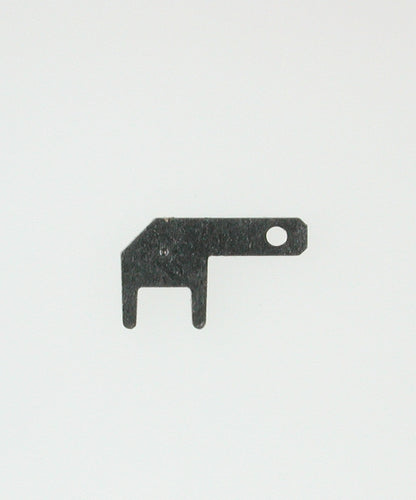

The angled flat plug (Flachstecker, abgewinkelt) F513028113 from EISENACHER is an angled flat plug designed for soldering into printed circuits. The product is specified as type C and supplied as a male plug for soldering. The material is brass with tin plating (verzinnt / gal/sn) according to the manufacturer's datasheet.
What it is and what it does
The angled flat plug (Flachstecker, abgewinkelt) functions as an electrical male connector designed to be soldered into printed circuit boards. The angled shape and specified dimensions describe how the plug occupies space in and on the motherboard, while the tabs indicate the size of the contact surface.
Technical points
- Material: brass, tin-plated (verzinnt)
- Type name: abgewinkelt, Type C
- Tab size: 2.8 × 0.8 mm
- Dimensions (according to datasheet): l1 = 13.4 mm, l2 = 7.1 mm, l3 = 8.0 mm
- Packaging unit: 1,000 pcs per package
Typical applications
The formal application of the product in the manufacturer's documentation is unambiguous: it is intended for soldering into printed circuits as a male connector. The description in the datasheet does not indicate further specific applications or industries.
Specifications
- Manufacturer: EISENACHER
- Product number: F513028113
- Type: Flachstecker, abgewinkelt (Type C)
- Material: Messing, verzinnt (tin-plated brass)
- Tab size: 2.8 × 0.8 mm
- l1: 13.4 mm
- l2: 7.1 mm
- l3: 8.0 mm
- Package size: 1,000 pcs
- EAN: 4251364506776
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
