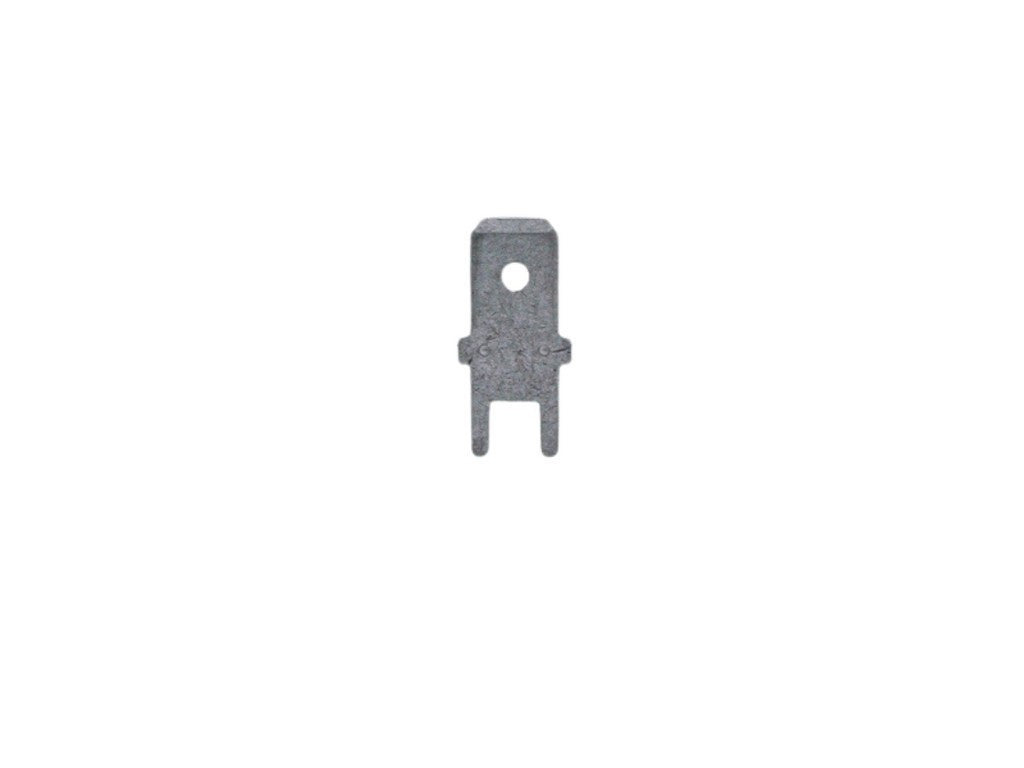

Solder tab (Type C)
F512263012.STANDARD is a flat tab terminal intended for soldering into printed circuit boards. The product is listed by EISENACHER as "Flachstecker zum Einlöten Typ C" and is supplied as straight male terminals for soldering into PCBs. F512263012.STANDARD indicates both the product number and variant on the manufacturer's side.
Construction and material
The terminal is made of tin-plated brass ("Messing verzinnt" / brass tin-plated). The datasheet indicates dimensions and design: the tab size is 6.3 × 0.8 mm, and drawings show a straight (standing) flat tab design intended for soldering.
- Material: Brass, tin-plated
- Tab size: 6.3 - 0.8 mm
For detailed dimensions and drawings, please refer to the manufacturer's datasheet.
Typical applications
The product is specified for soldering into printed circuit boards and is therefore used as a male terminal for solder connections in PCBs. This application is evident directly from the manufacturer's product description and datasheet.
Specifications
- Manufacturer: EISENACHER
- Product number: F512263012 (variant: F512263012.STANDARD)
- Material: Brass, tin-plated
- Tab size: 6.3 - 0.8 mm
- Dimensions: l1 = 16.5 mm; l2 = 8 mm; b = 1.45 mm (stated in the datasheet, Status: 07.02.2019)
- Design: Straight male terminals for soldering into printed circuit boards
- VPE: 1.000
- EAN: 4251364506721
See datasheet from the manufacturer
