Product Overview

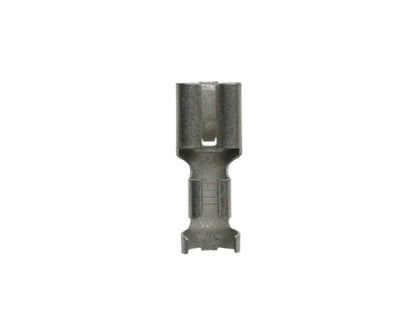

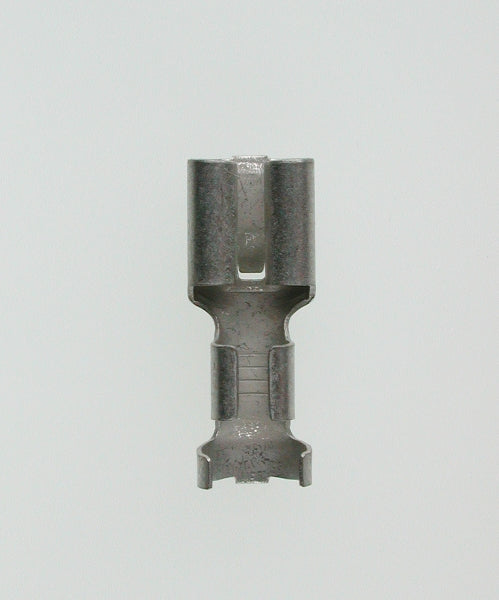

The F504630112 is a female flat disconnect terminal (Flachsteckhülse) from EISENACHER, designed with a locking tab. The product is intended as a female connection for flat tabs and is specified with a tab size of 6.3 × 0.8 mm, as directly stated in the manufacturer's documentation.Application and Function
This female flat disconnect terminal serves as an electrical and mechanical connection between a conductor and a corresponding male flat tab. The locking tab provides mechanical retention, as mentioned in the manufacturer's data. The F504630112 is specified for conductor cross-sections of 4–6 mm² and matches a tab size of 6.3 × 0.8 mm, both points documented in the manufacturer's datasheet.Features
- Part number: F504630112
- Type: Flachsteckhülse (female flat disconnect) with locking tab
- Tab size: 6.3 × 0.8 mm
- Intended conductor cross-section (stated): 4–6 mm²
Specifications
- Manufacturer: EISENACHER
- Product name / item number: F504630112
- Material: Brass
- Surface: verzinnt (tin-plated)
- VPE (packaging unit): 500
- EAN: 4251364505601
- Dimensions l1 / l2: 19.2 mm / 7.4 mm
- Tab size: 6.3 × 0.8 mm
- Recommended conductor cross-section: 4–6 mm²
- Date on datasheet: 12.09.2014
- Type designation in datasheet: Flachsteckhülsen mit Rastzunge
