Flat Receptacles DIN 46340 with Locking Tab
This product is Flat Receptacles DIN 46340 with Locking Tab from WEITKOWITZ, type ICC668FHR. The description and dimensions have been verified against the supplier's product information on Intercable Tools.
Product Overview

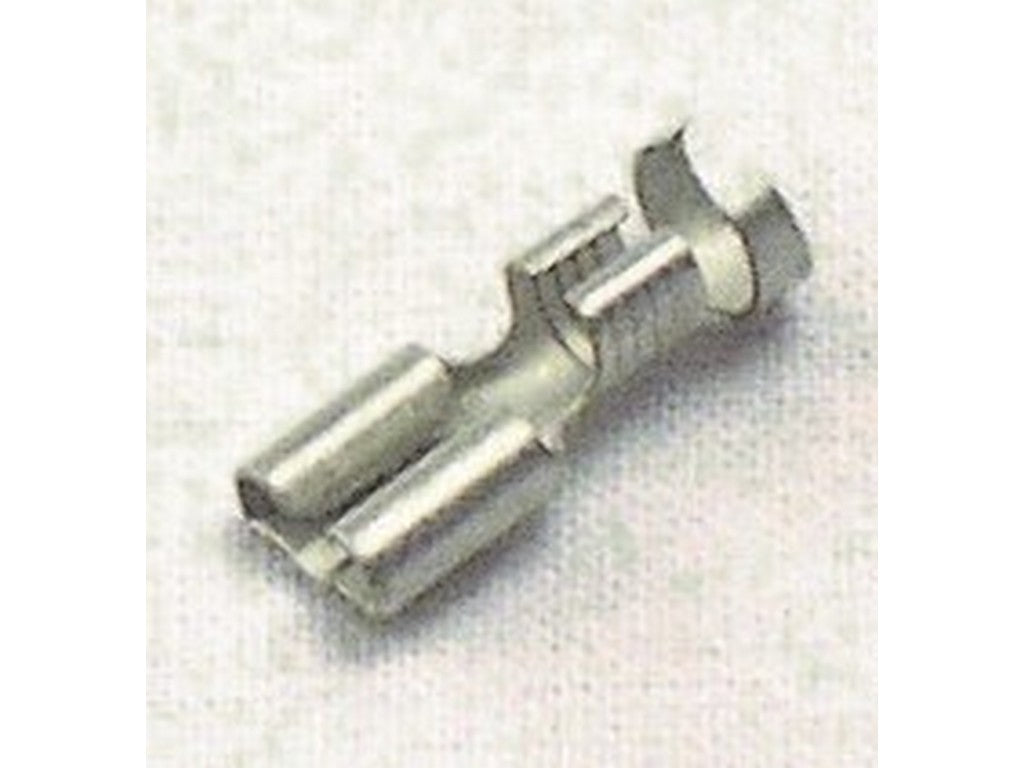

Flat Receptacles DIN 46340 with Locking Tab is a flat push-on connector with a locking tab (Rastzunge). The product is specified for use with "für fein- und feinstdrähtige Leiter" – i.e., for fine and very fine stranded conductors. The type designation ICC668FHR and associated dimensions are provided by the manufacturer/supplier.
Typical Applications
- Used for terminating fine and very fine stranded conductors, as specified by the manufacturer.
Packaging and Weight
- Supplied in packaging units of 100 pcs.
- Net weight for 100 pcs: 0.09 kg.
Specifications
- Product name: Flat Receptacles DIN 46340 with Locking Tab.
- Manufacturer: WEITKOWITZ.
- Type/Part number: ICC668FHR.
- Nominal cross-section: 6 mm².
- Connector dimension: flat 6.3 x 0.8 mm.
- Dimension l1: 19 mm.
- Dimension L2: 7 mm.
- Net weight per 100 pcs: 0.09 kg.
- Packaging quantity: 100 pcs per pack.
The information in this product text is based on Intercable Tools product information for ICC668FHR and should not be interpreted beyond the stated data.
The content is generated using AI – we reserve the right for errors.
Contact HIN for further product information.
