Product Category: Flat Receptacles

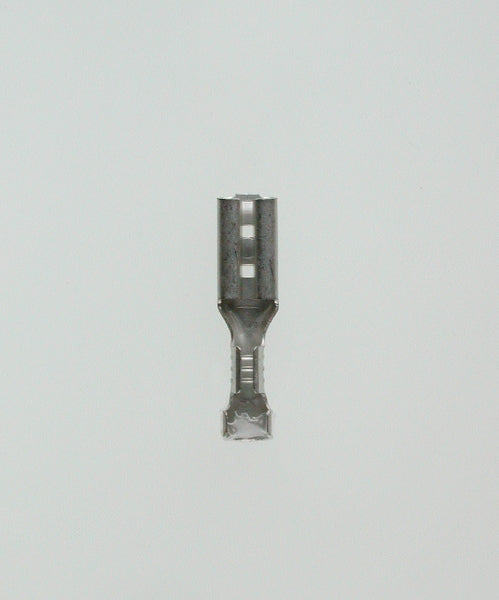

Flat receptacles 2.8x0.5 lg. (EISENACHER art. no. F502281012) is a female disconnect specified in the manufacturer's datasheet. The product is rated for conductor cross-sections of 0.5–1 mm² and is designed to receive a flat tab with dimensions 2.8 × 0.5 mm.Function and Application
Flat receptacles 2.8x0.5 lg. functions as an insulated contact connection between a conductor and a corresponding flat tab. It is used as a female contact, receiving and holding a 2.8 × 0.5 mm tab, according to the manufacturer's specifications. The product's dimensions and approved conductor cross-sections are detailed in the official datasheet.
Material and Finish
- Material: Brass
- Surface: Galvanized tin (specified in the datasheet as galv. Sn 0.24/1000 1.000)
Documentation
The official measurement values and material description can be found in the manufacturer's datasheet:
See datasheet from the manufacturer
Specifications
- Product Name: Flat receptacles 2.8x0.5 lg.
- Manufacturer: EISENACHER
- Article Number: F502281012
- Conductor Cross-section: 0.5–1 mm²
- Material: Brass
- Surface: galv. Sn 0.24/1000 1.000
- Dimensions: l1 = 14.5 mm, l2 = 6.2 mm
- Tab size: 2.8 × 0.5 mm
- Packaging: 500 PCS per unit
- Datasheet date: 11.09.2014
