Description

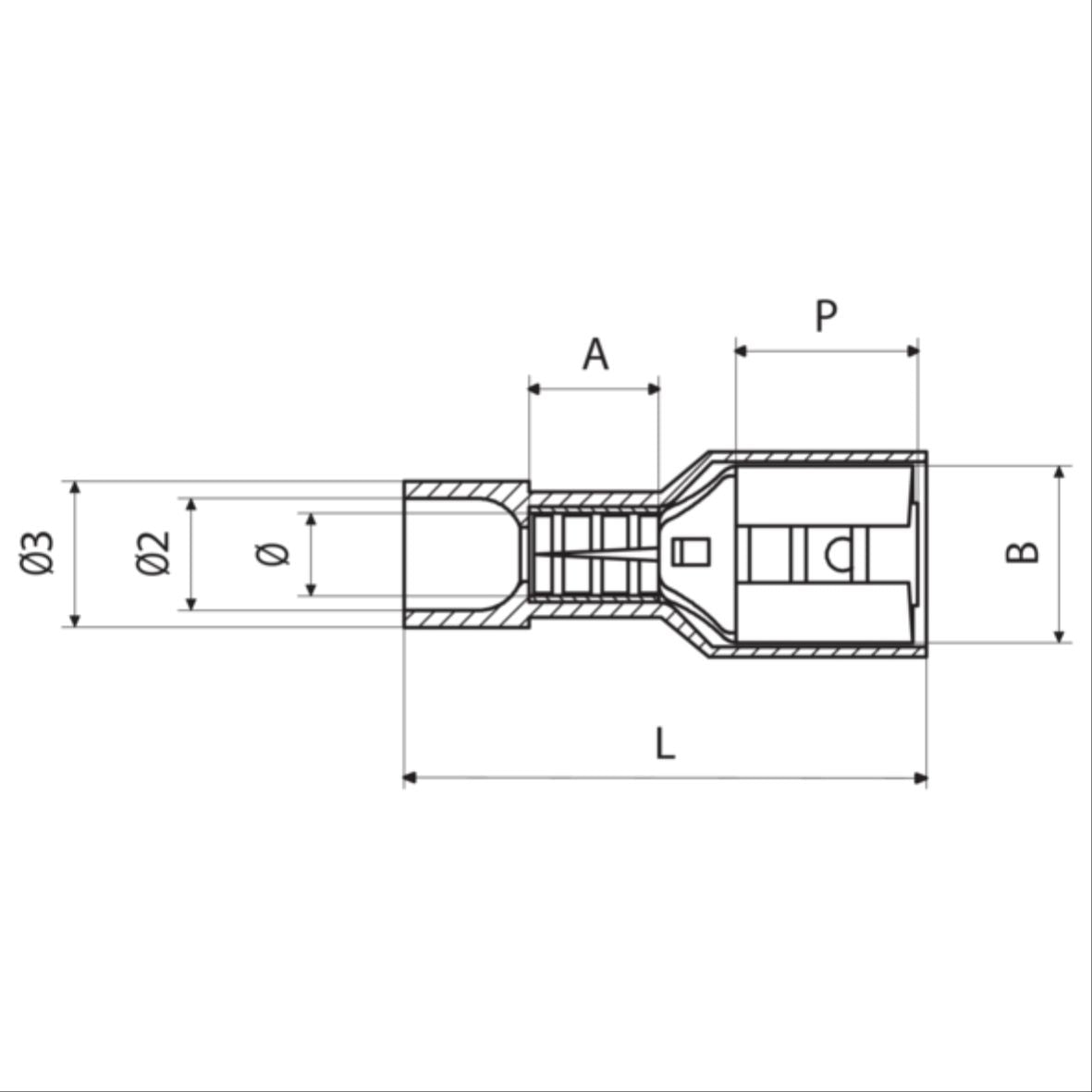

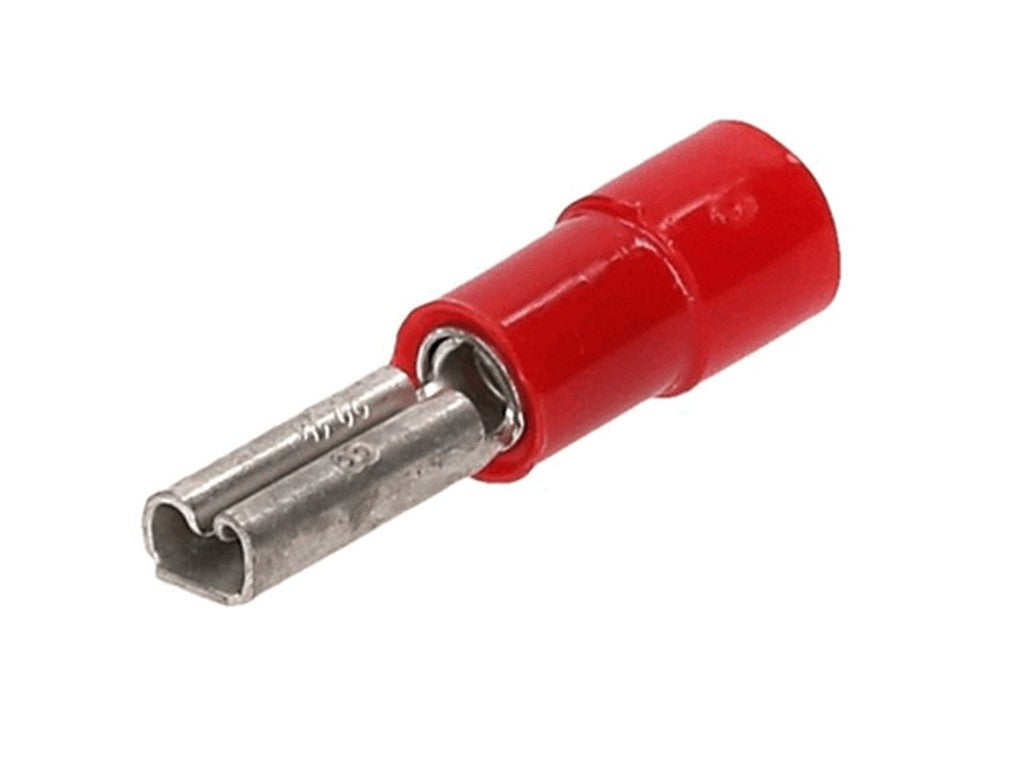

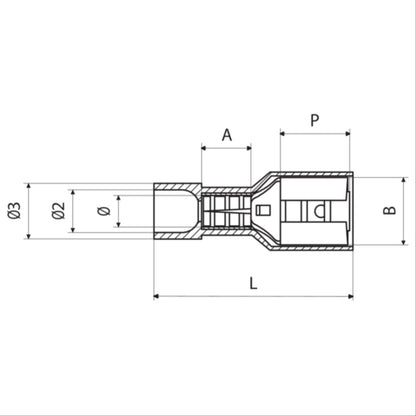

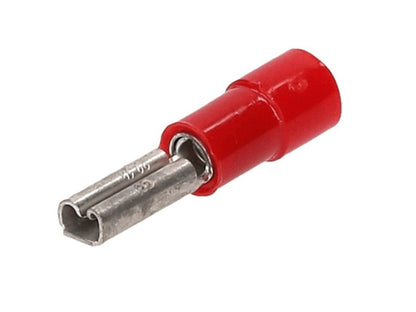

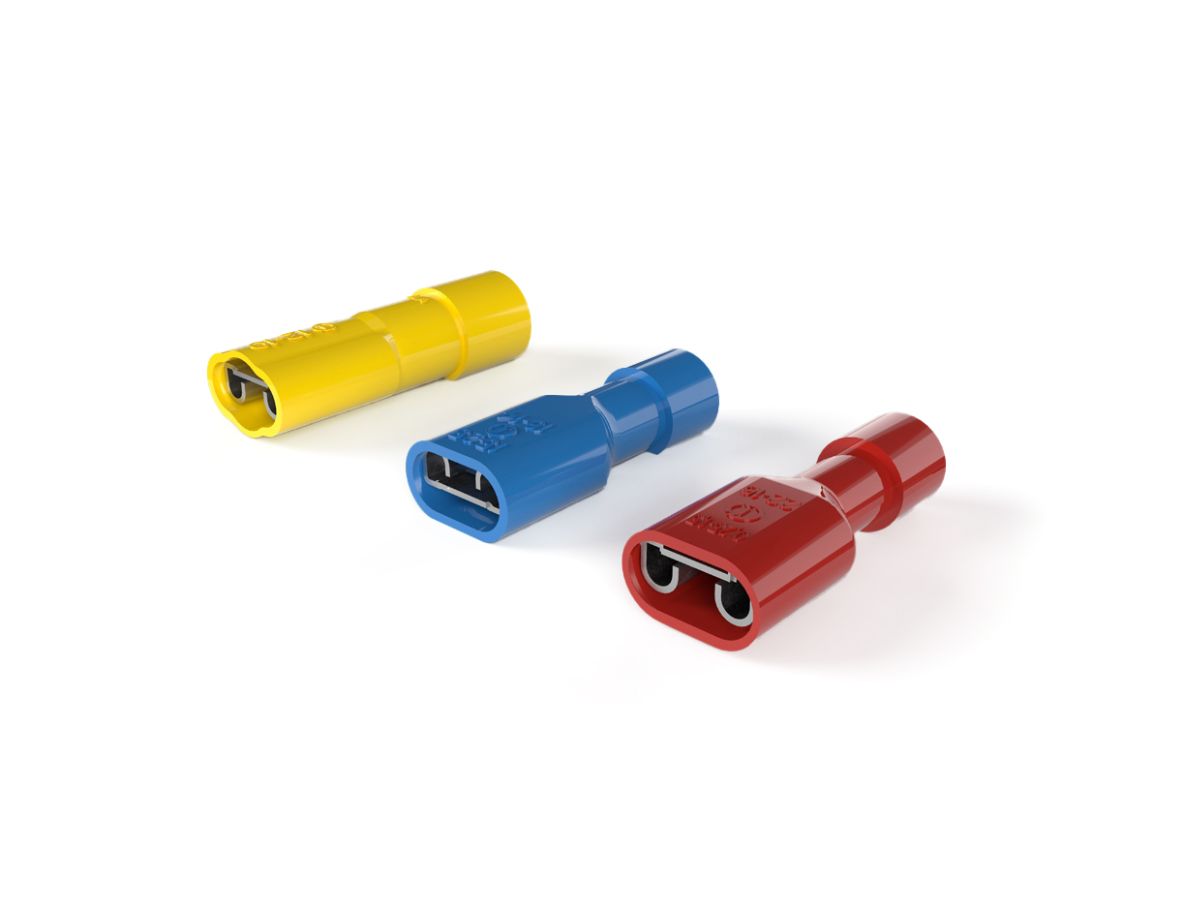

The Cembre RF-F308P is a pre-insulated female quick-connect terminal designed for terminating copper conductors. The terminal features a brass conductor body with electrolytic tin plating and a polycarbonate insulating sleeve, specified as halogen-free and self-extinguishing (UL 94 V0). The RF-F308P variant comes with a 2.8 × 0.8 mm flat tab and a red insulating sleeve.Function and Construction
The terminal provides an electrical connection between a stripped conductor and a flat tab connector. The internal barrel is rifled for improved contact with the conductor's braid during crimping. Materials specified in the manufacturer's documentation include brass (conductor) with tin plating and polycarbonate insulation.Installation and Mounting Notes
Installation follows Cembre's instructions: select the correct terminal size for the conductor's cross-section, use the recommended stripping length and suitable crimping tool, and crimp according to the tool's service and maintenance manual. The datasheet specifies a recommended cable strip length of 6–7 mm for this size group. For field termination to electrical equipment, the manufacturer requires that the equipment be fitted with strain relief and marked with relevant instructions. See manufacturer's datasheetTypical Applications
- Field termination of copper conductors to electrical equipment, as specified in the manufacturer's installation instructions.
- Internal wiring connection in equipment using flat tab connectors (2.8 × 0.8 mm for RF-F308P).
Specifications
- Product: Cembre RF-F308P (Manufacturer part number: 2051580)
- Conductor cross-section: 0.25–1.5 mm² (AWG 22–16)
- Tab size: 2.8 × 0.8 mm
- Insulating sleeve: Polycarbonate, halogen-free, UL 94 V0 (self-extinguishing)
- Conductor material: Brass, electrolytically tin-plated
- Recommended cable strip length: 6–7 mm
- Electrical limitations (specified by manufacturer): 600 V max. for building wiring, 1000 V max. for signs and fixtures
- Max operating temperature specified: 105 °C
- Approval: UL listed for USA and Canada per UL310 (File no. E212000) — terminals for internal wiring
- Conductor type: For use with Cu (copper) conductors
