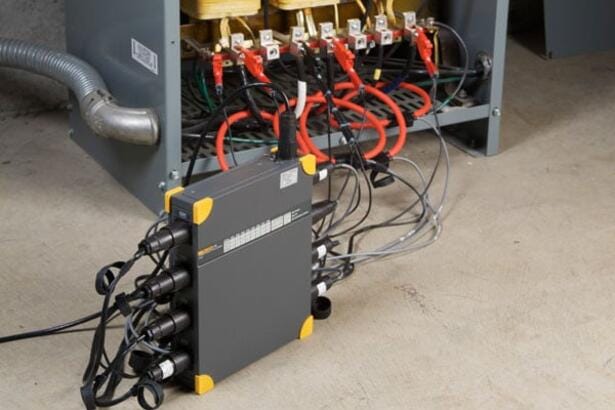

Fluke 1760TR Basic three-phase power quality recorder
The Fluke 1760TR Basic is a portable meter for monitoring voltage quality in three-phase electrical systems. It is used to determine what is happening in the network over time and to document faults, interruptions, or transient events afterwards.
The instrument is designed for use in utility and industrial networks, where it is often necessary to measure multiple phases simultaneously and obtain a comprehensive picture of load, voltage disturbances, and events. It is particularly useful that it is fully Class A according to IEC 61000-4-30, as this means that measurements follow a consistent method, making the results easier to compare and use in practice.
The galvanically isolated inputs allow measurements on multiple channels simultaneously without mixing signals. It can be set up as 4 current and 4 voltage channels or as 8 voltage channels, depending on the task. This makes it relevant for both troubleshooting and longer measurement campaigns where both voltage and current need to be monitored.
For fast events, there is also support for transient analysis up to 10 MHz and a measurement range of 6000 Vpk, so very short impulses can be captured. This is precisely the type of measurement needed when a fault only lasts a moment but still affects the equipment.
2 GB of internal flash memory provides space for longer recording periods, and GPS time synchronization makes it easier to correlate events from multiple measurement points. The internal battery supply lasts approximately 40 minutes during power outages, so recording does not immediately stop if the supply is lost.
Overall, it is a recorder for professionals who need to measure power quality, find the cause of operational disturbances, and document what is actually happening in the system.
You can read more here:
See datasheet from the manufacturer
Specifications
- Manufacturer: FLUKE
- MPN: 2637629
- IEC 61000-4-30 Class-A
- 8 galvanically isolated inputs
- Can be configured as 4 current and 4 voltage channels or 8 voltage channels
- 2 GB internal flash memory
- Fast transient analysis up to 10 MHz
- 6000 Vpk measurement range
- GPS time synchronization
- Internal battery life: approx. 40 minutes
