Product Overview
The Fluke 87V IMSK is an industrial multimeter service kit from FLUKE, assembled around the Fluke 87V multimeter and the Fluke i400 400 A AC current clamp. The kit includes accessories designed for measurement tasks on electrical systems: 80BK-A temperature probe, TL75 test leads, and AC175 threaded alligator clips.Features

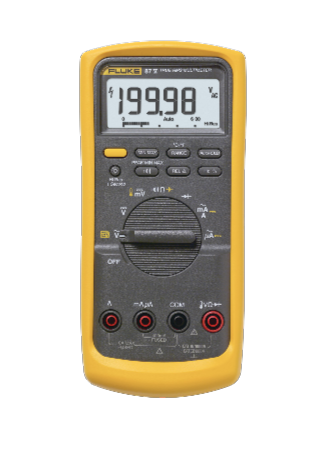

- Fluke 87V multimeter: true-RMS measurements, manual and automatic range selection, Display Hold, Auto Hold, Min/Max-Average recording, low-pass filter for VFD measurements, and peak transient capture down to 250 µs.

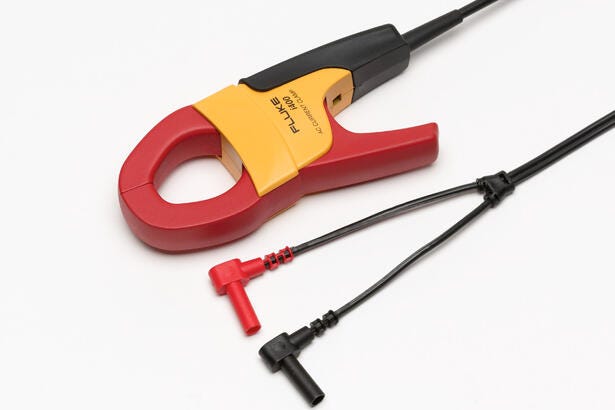

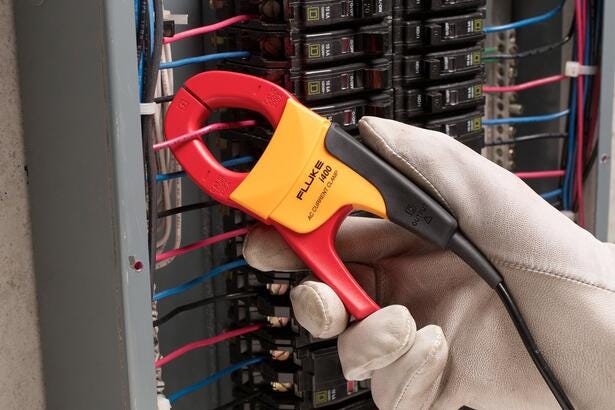

- Fluke i400 current clamp: output 1 mA/A, measures up to 400 A AC, and has safety rating CAT IV 600 V / CAT III 1000 V.
- The kit includes the 80BK-A temperature probe, TL75 test leads, and AC175 threaded alligator clips.

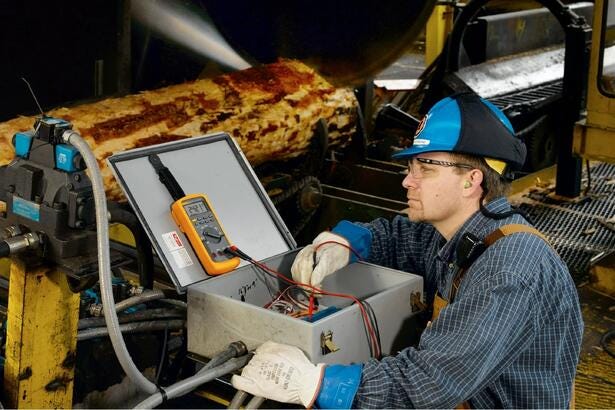

Typical Applications
- Used for troubleshooting motor controls.
- Used for troubleshooting plant automation.
- Used for troubleshooting power distribution.
- Used for troubleshooting electromechanical equipment.
Documentation
Additional technical data and details can be found in the manufacturer's datasheet: View manufacturer's datasheet.
Specifications

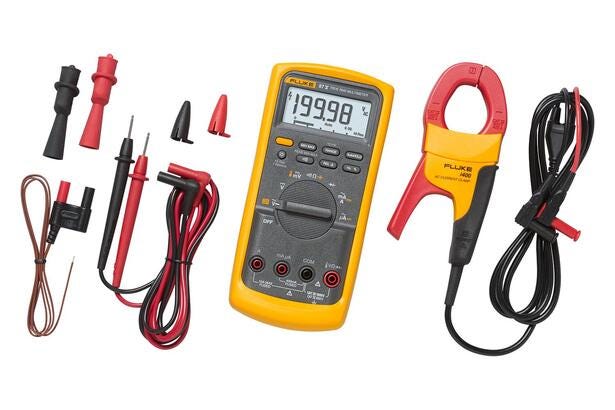

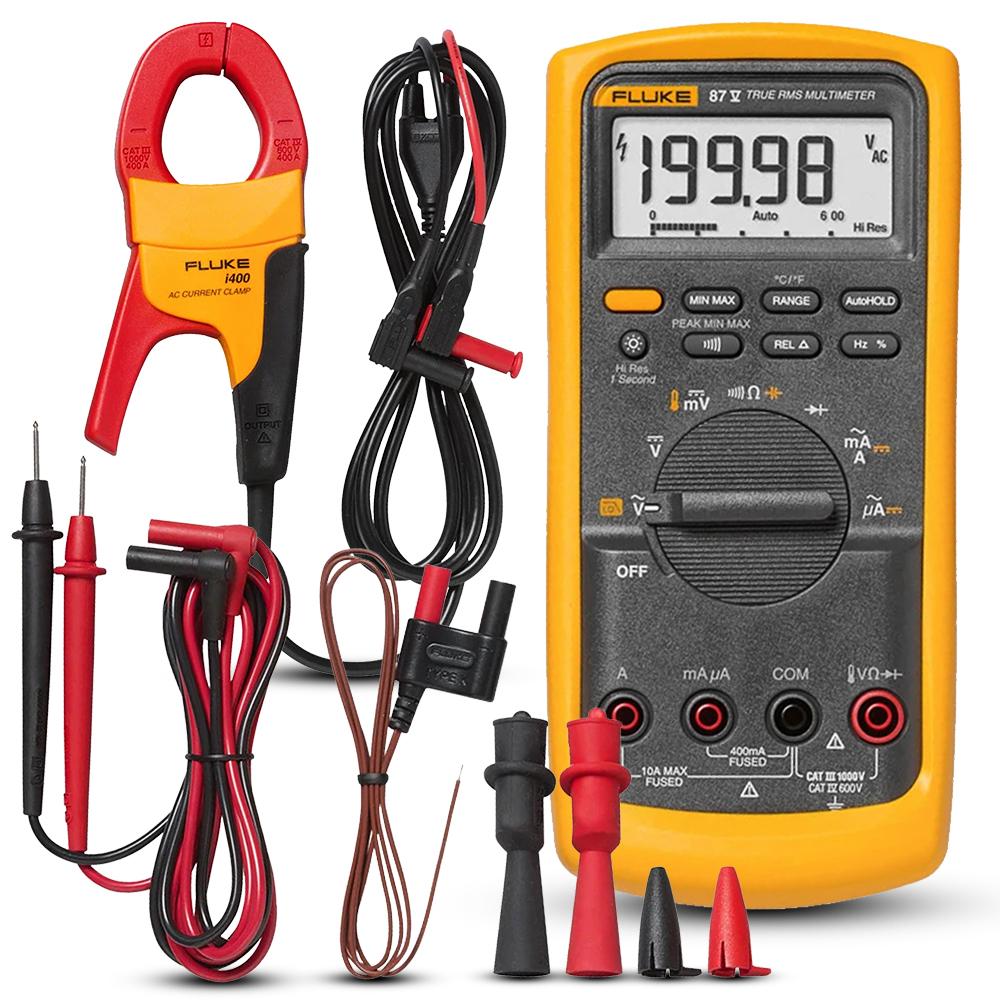

- Included in the kit: Fluke 87V Industrial Multimeter; Fluke i400 400 A AC Current Clamp; 80BK-A DMM Temperature Probe; TL75 Hard Point Test Lead Set; AC175 Threaded Alligator Clip Set.
- Safety Rating: CAT IV 600 V, CAT III 1000 V (kit and meter as stated by the manufacturer).
- i400 Current Clamp: nominal range 400 A; continuous 1 A–400 A; maximum non-destructive 1000 A; lowest measurable current 1 A; basic accuracy 2% + 0.06 A (45–400 Hz); usable frequency 5 Hz–20 kHz; output 1 mA/A; lead length 1.5 m; maximum conductor diameter 32 mm.
- Fluke 87V Electrical Specifications (selected): DC voltage 0.1 mV–1000 V (±(0.05% + 1)); AC voltage 0.1 mV–1000 V True-rms (±(0.7% + 2)); AC bandwidth 20 kHz with low-pass filter; DC current 0.1 µA–10 A (20 A for up to 30 s); AC current 0.1 µA–10 A True-rms.
- Other 87V data: peak transient capture 250 µs; display up to 19,999 counts (high-resolution); IP rating 30; power supply three AA batteries (~400 hours without backlight); size 201 x 98 x 52 mm (with holster); weight 355 g (624 g with holster).
- Temperature Range for 80BK-A Probe: -40 °C to 260 °C (±2.2 °C or 2% where applicable).
- Warranty: limited lifetime warranty for 87V; 1-year warranty for accessories (as stated in manufacturer's documentation).
