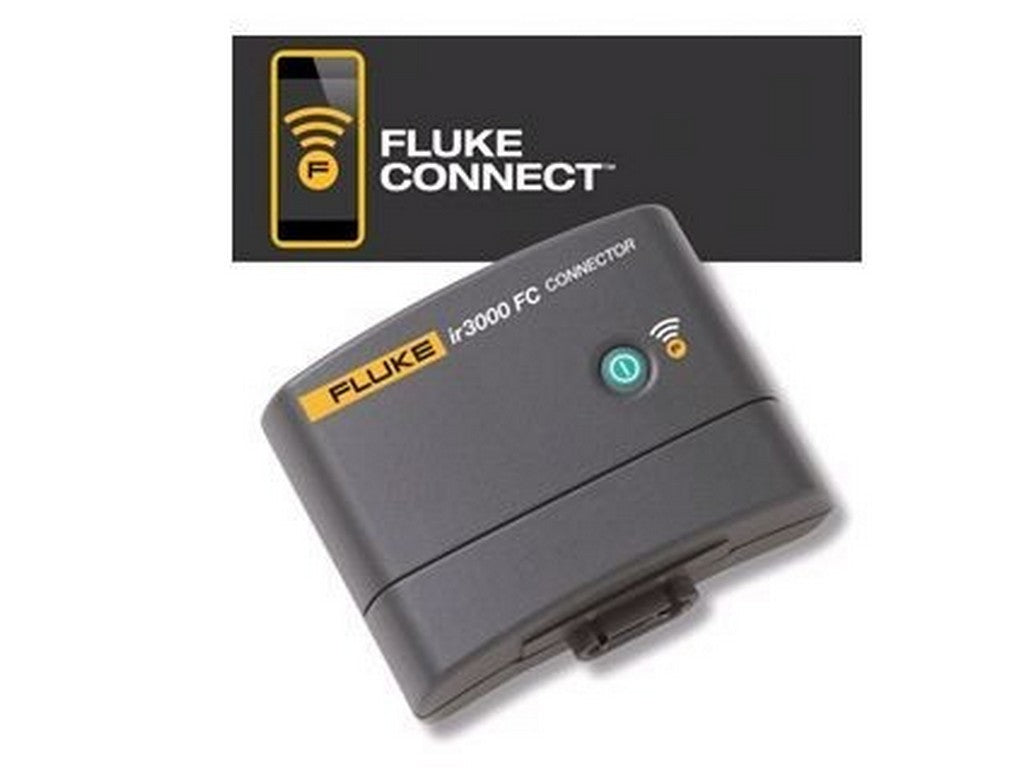

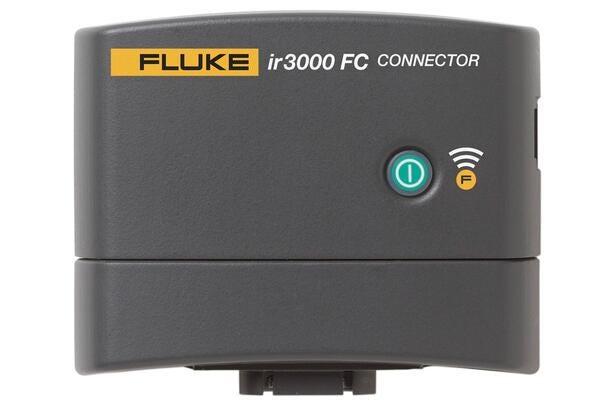

Fluke ir3000 FC Connector
The Fluke ir3000 FC Connector is a small adapter that connects Fluke measuring equipment with the Fluke Connect app. It is used when the measuring instrument needs to send measurements wirelessly via Bluetooth Low Energy and infrared connection. In practice, this means that data can be transferred from the instrument to the app without needing a cable between the instrument and a phone or tablet.
The connector is placed over the IR port of supported Fluke instruments. It is relevant when working with measuring equipment that can already be used with Fluke Connect but lacks the wireless connection. Here, it acts as a link between the instrument and the app.
It is listed as compatible with Fluke 287, 289, and 789, and there is also information about its use with 189, 1550C, and 1555. This makes it most relevant if you already own one of the supported instruments and want a simple way to get measurement data into your digital workflow.
It uses two AAA batteries, so it can operate without a fixed power connection. Battery operation and wireless transmission make it practical for field work and service tasks where you want to read and share measurements more flexibly. The range is up to 20 m in open air, so it is designed for general close-range communication around the instrument.
You can read more here:
See datasheet from the manufacturer
See product video from the manufacturer
Specifications
- Manufacturer: FLUKE
- MPN: 4460436
- Connects Fluke test tools with the Fluke Connect app
- BLE-to-infrared radio interface
- Fits over the IR port of supported Fluke instruments
- Compatible with Fluke 287, 289, and 789
- Uses 2 x AAA batteries (IEC-LR03)
- Approx. 6 hours of continuous transmission
- Wireless communication on the 2.4 GHz ISM band
- Range up to 20 m in open air
- Operating temperature: -10 °C to 50 °C
- 3-year limited warranty
