Fluke current clamp iFlex 1500A 3 pack

Product Overview

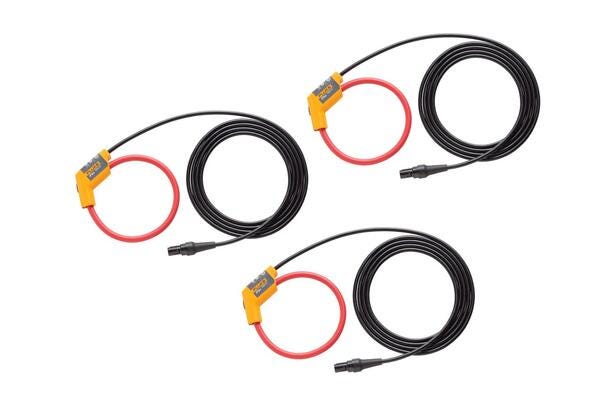

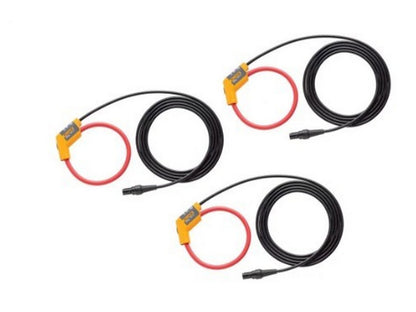

This description covers the I17XX-FLEX1500/3PK from FLUKE, a set of three flexible current probes (iFlex) designed as external current clamps for measurement. The product is a 3-pack of Fluke iFlex flexible current clamps and is supplied under model I17XX-FLEX1500/3PK (Part#: 4637337).

Technical Functionality

The I17XX-FLEX1500/3PK consists of 12" (approx. 305 mm) flexible current probes that extend the measurement range of Fluke 17XX energy loggers or power loggers to 1500 A AC. The probes connect directly to the energy logger and display current measurements without the need for separate scaling factors. Each probe has a 1.8 m (6 ft) connection cable, allowing physical separation between the measurement point and the logger.

Typical Applications

• Extension of the measurement range of Fluke 17XX energy loggers for measurements up to 1500 A AC.
• Direct connection to Fluke 17XX loggers for readings without additional scaling.

Documentation

Source: Fluke product page for I17XX-FLEX1500/3PK

Specifications

• Model: I17XX-FLEX1500/3PK.
• Manufacturer: FLUKE.
• Manufacturer Part Number: 4637337.
• Package: 3 pcs. iFlex flexible current probes (3-pack).
• Probe length: 12" (12-inch) flexible probe (specified in product text).
• Measurement range (in conjunction with Fluke 17XX energy loggers): up to 1500 A AC.
• Connection cable: 1.8 m (6 ft) per probe.
• iFlex cable lengths for the Fluke 17XX family are available in 12", 24", and 36" variants (specified as available lengths in the product information).

Content generated using AI – we reserve the right to make corrections.
Contact HIN for further information about the product.
