Product Overview

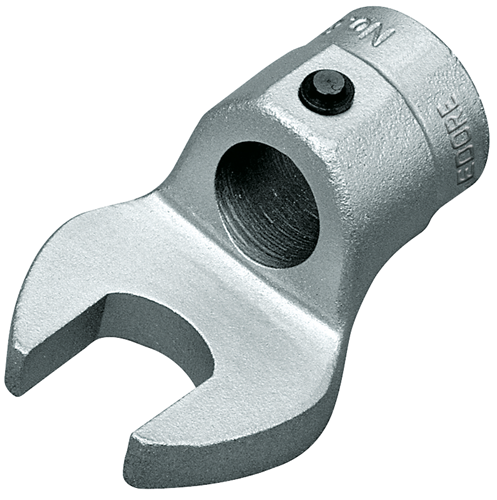

This open-ended spanner insert for torque wrenches is GEDORE 8791-17 (7710740). The product is an interchangeable open-ended spanner insert, designed for mounting on a 16 mm drive connector pin and with a width across flats of 17 mm. GEDORE 8791-17 (7710740) is supplied as a single insert and is specified by the manufacturer.
Material and Finish
- Forged in chrome-vanadium steel.
- Matt chrome-plated.
- Includes locking pin.
Typical Applications
The product is used as an insert in torque tools that accept a 16 mm drive connector pin. This description is based on the manufacturer's stated purpose of use as an insert for torque tools.
Physical Dimensions and Weight
- Overall width: 41.5 mm.
- Head height: 9 mm.
- Depth gauge: 32.0 mm.
- Weight: 0.144 kg.
Documentation
Further product information can be found on the manufacturer's product page.
Specifications
- Manufacturer: GEDORE.
- Product name/code: 8791-17 (Code no. 7710740).
- EAN: 4002805871171.
- Drive connector pin: 16 mm.
- Width across flats: 17 mm.
- Material: Chrome-vanadium steel (forged).
- Surface: Matt chrome-plated.
- Included: Locking pin.
- Overall width: 41.5 mm.
- Head height: 9 mm.
- Depth gauge: 32.0 mm.
- Weight: 0.144 kg.
- Delivery contents: 1 pc.
