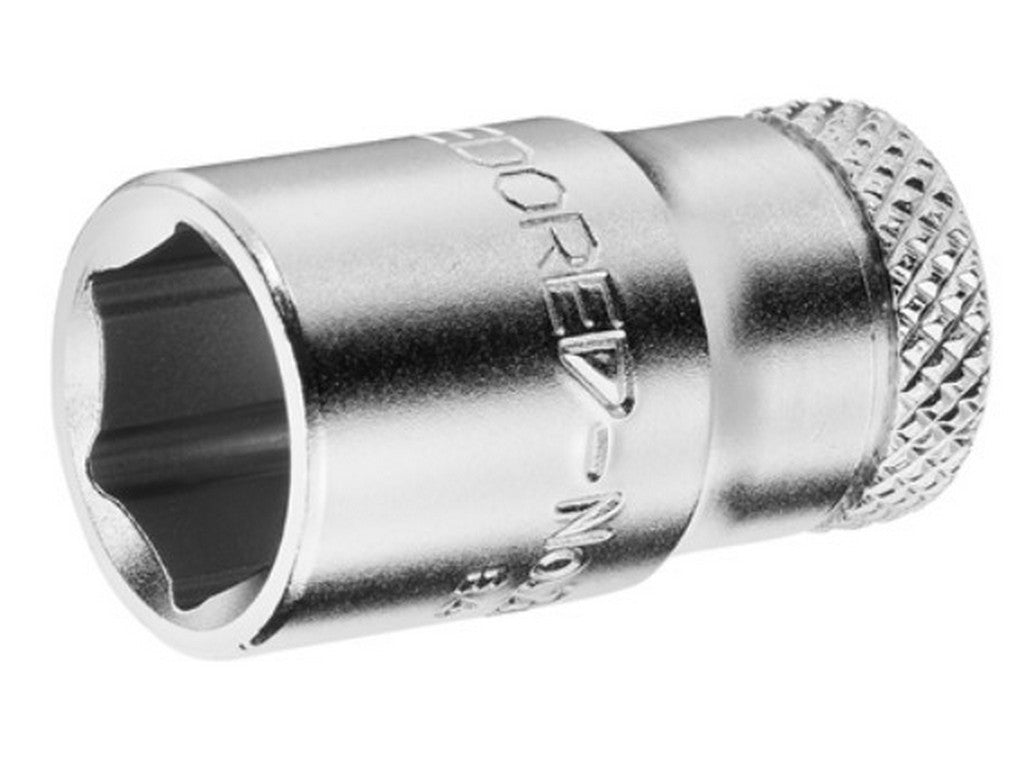

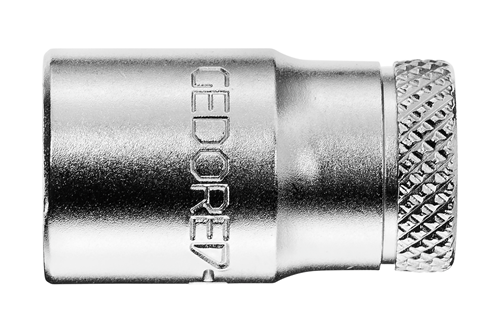

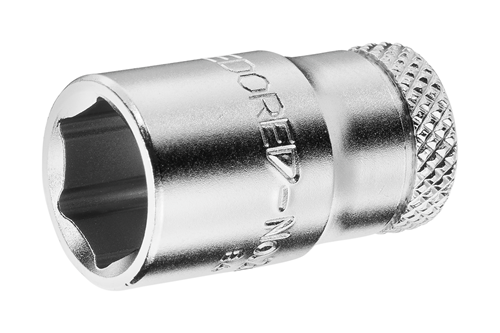

GEDORE socket 1/4" hex 10 mm
Here is a 1/4" 10 mm socket for hand tools, when a hexagonal nut or bolt needs to be securely gripped and tightened or loosened. It belongs to the smaller end of the socket range and is typically used with a 1/4" ratchet or other tool with a square drive.
The socket is manufactured according to DIN 3124 and ISO 2725-1, and the square drive follows DIN 3120 - C 6.3 (1/4") and ISO 1174. There is also a ball retaining groove, which helps to keep the socket firmly on the tool during use. It is knurled for a better grip and is intended for manual use.
GEDORE has manufactured it from vanadium steel 31CrV3, and it is ground and chrome-plated. This provides a robust socket that is also easy to clean and find in the toolbox. With a length of 25 mm and a weight of only 0.02 kg, it is compact and easy to carry in a kit where space is often limited.
Typical applications
- Assembly and service with 1/4" tools
- Work where a 10 mm hex socket is required
- Tasks in screwdrivers where a compact socket system is practical
Specifications
- Manufacturer: GEDORE
- MPN: 6166210
- Product code: 6166210
- Socket size: 10 mm
- Drive: 1/4" square
- Standard: DIN 3124
- Standard: ISO 2725-1
- Square drive: DIN 3120 - C 6.3 (1/4")
- Square drive: ISO 1174
- With ball retaining groove
- Manual use
- Knurled grip
- Material: GEDORE vanadium steel 31CrV3
- Surface: ground and chrome-plated

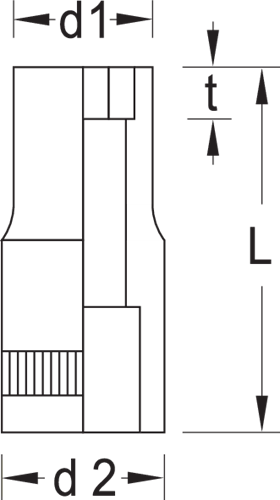

- Length: 25 mm
- Socket diameter: 14.7 mm
- Total width/height: 14 mm
- Weight: 0.02 kg
- Supplied as 1 piece
- GTIN/EAN: 4010886616620
See datasheet from the manufacturer
