Product Overview

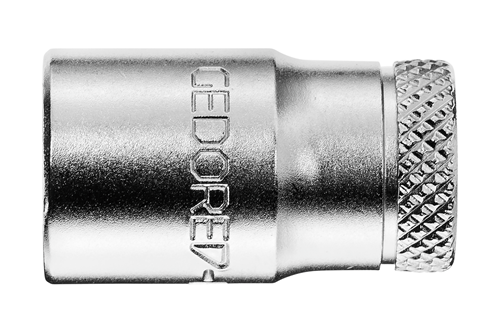

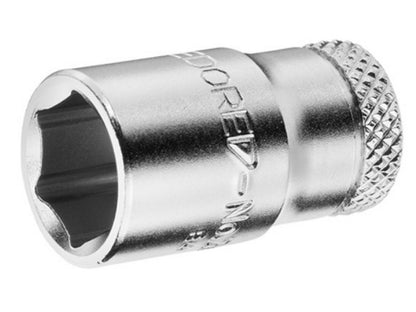

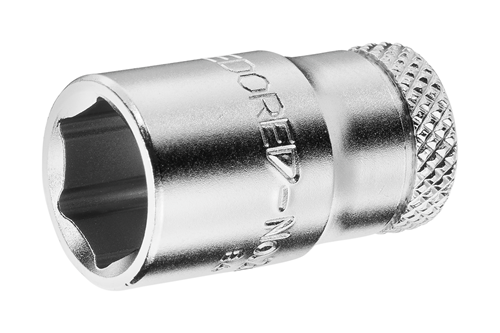

The GEDORE 6165670 (20 5) is a 1/4" drive hexagonal socket with a 5 mm dimension across the flats. The manufacturer specifies that the socket is made from GEDORE vanadium steel (31CrV3), ground and matte chrome-plated. The product is clearly identified by the manufacturer's item number 6165670.Design and Mechanical Properties
- Drive: 1/4" (inch) square drive / 6.3 mm metric square drive.
- Material: GEDORE vanadium steel (31CrV3).
- Surface Finish: matte chrome plating (as stated by the manufacturer).
- Construction: includes ball retention groove on the square drive.
Standards and Compliance
The manufacturer states that the socket complies with the following standards: DIN 3124 and ISO 2725-1 for hexagonal sockets; the square drive complies with DIN 3120 - C 6.3 and ISO 1174. These specifications are taken directly from the manufacturer's product information.Typical Applications
Not included. No specific application cases are mentioned in the verified product information, and therefore no usage scenarios are described here.
Specifications
- Product Name: GEDORE 6165670 (20 5).
- Width across flats: 5 mm.
- Drive mount (square, metric): 6.3 mm.
- Drive connector (square, inch): 1/4".
- Material: 31CrV3 (GEDORE vanadium steel).
- Surface: Matte chrome-plated (manufacturer's information).
- Standards: DIN 3124; ISO 2725-1; DIN 3120 - C 6.3; ISO 1174.

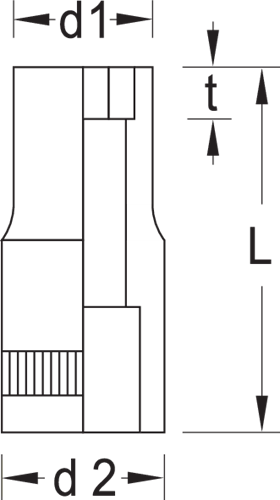

- Overall length: 25.0 mm.
- Overall width: 12.0 mm.
- Overall height: 12.0 mm.
- Working/effective length: 25.0 mm.
- Operating depth: 6.0 mm.
- Insert-Ø 1: 8.2 mm; Insert-Ø 2: 12.0 mm.
- Weight: 0.01 kg.
- Quantity in delivery: 1 piece.
- Manufacturer's item number: 6165670.
Source
Product information verified on the manufacturer's product page: Manufacturer's product page.
