Product Overview

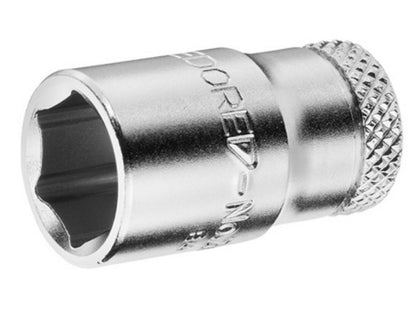

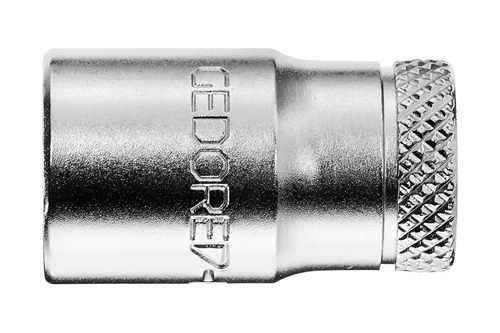

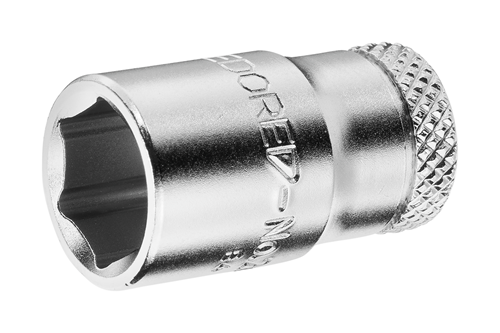

This 1/4" drive 6-point socket from GEDORE, designated as GEDORE 20 9 (item number 6166130), is a 1/4" (6.3 mm) hexagonal socket with a 9 mm width across flats. The product category can be confirmed from the manufacturer's product page as part of GEDORE's series of 1/4" hex sockets.Technical Details
- Product name: GEDORE 20 9 (6166130).
- Function: 1/4" drive 6-point socket with 9 mm width across flats.
- Drive mount / square: 6.3 mm (1/4").
- Material: GEDORE vanadium steel 31CrV3.
- Surface: Polished and chrome-plated.
- Internal square drive: in accordance with DIN 3120 – C 6.3 / ISO 1174.
- Standards: DIN 3124 and ISO 2725-1 (product line designation).
- Fastening: Integrated ball retention groove.
- Design: Hand-operated, knurled for better grip (indicated on the manufacturer's product page).
Sources
Product data and technical specifications verified on the manufacturer's product page for GEDORE's 20 series (variant 20 9, item number 6166130).
Specifications
- Manufacturer: GEDORE
- Manufacturer item number: 6166130
- Type: 1/4" drive, 6-point hex socket
- Width across flats: 9 mm
- Drive mount (square): 6.3 mm / 1/4"
- Material: 31CrV3 (vanadium steel)
- Surface: Polished, chrome-plated
- Standards: DIN 3124; ISO 2725-1; DIN 3120 – C 6.3 / ISO 1174
- Fastening function: Ball retention groove
