Product Overview

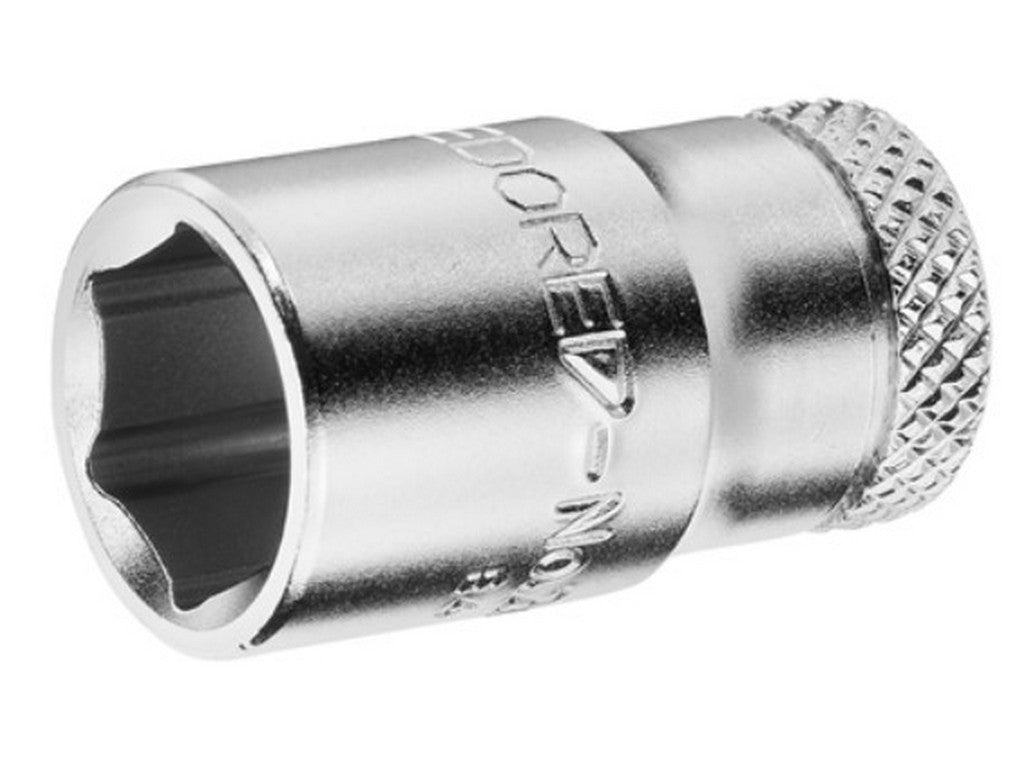

The GEDORE Socket 3/8 inch hex 14 mm, code 6234150, is a 3/8" drive hex socket with a 14 mm width across flats. The product is specified by the manufacturer and supplied as a single piece. The description below is based solely on information verified in the manufacturer's product text.Construction and Function
- Type: 3/8" drive hex socket (14 mm).
- Drive mount (square metric): 10.0 mm; drive connector square [inch]: 3/8".
- Design: manually operated with non-slip cross knurling for manual use.
- Integrated retention function: square drive with ball retention groove as stated in the manufacturer's specification.
Material and Surface
- Material: GEDORE vanadium steel 31CrV3 (listed as chrome-vanadium steel 31CrV3).
- Surface: polished, chrome-plated.
The product name "GEDORE Socket 3/8 inch hex 14 mm" is used in this text in accordance with the manufacturer's verified product designation.
Documentation
Further product information and all technical data are provided by the manufacturer. Please refer to the manufacturer's product page for original data.
Product information from the manufacturer
Specifications
- Manufacturer: GEDORE.
- Product name: GEDORE Socket 3/8 inch hex 14 mm (code 6234150).
- Width across flats: 14 mm.
- Standards: DIN 3124; ISO 2725-1; square drive: DIN 3120 - C 10; ISO 1174 (with ball retention groove).
- Material: 31CrV3 (chrome-vanadium steel).
- Surface: polished, chrome-plated.
- Total length: 29 mm.
- Working length: 29.0 mm.
- Insert diameters (Insert-Ø 1 / Insert-Ø 2): 19.7 mm / 18.4 mm.
- Drive mount, square (metric): 10.0 mm.
- Drive mount, square (inch): 3/8".
- Operating depth: 11.0 mm.
- Total width: 20 mm; total height: 20 mm.
- Weight: 0.04 kg.
- Delivery: includes 1 pc. (Qty: 1).
Sources
Product data verified on the manufacturer's product page.
