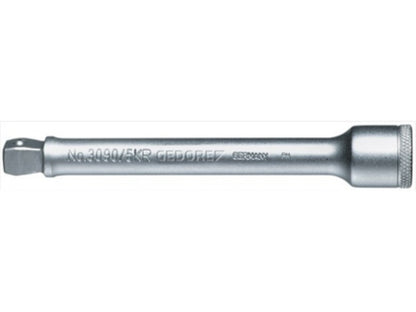

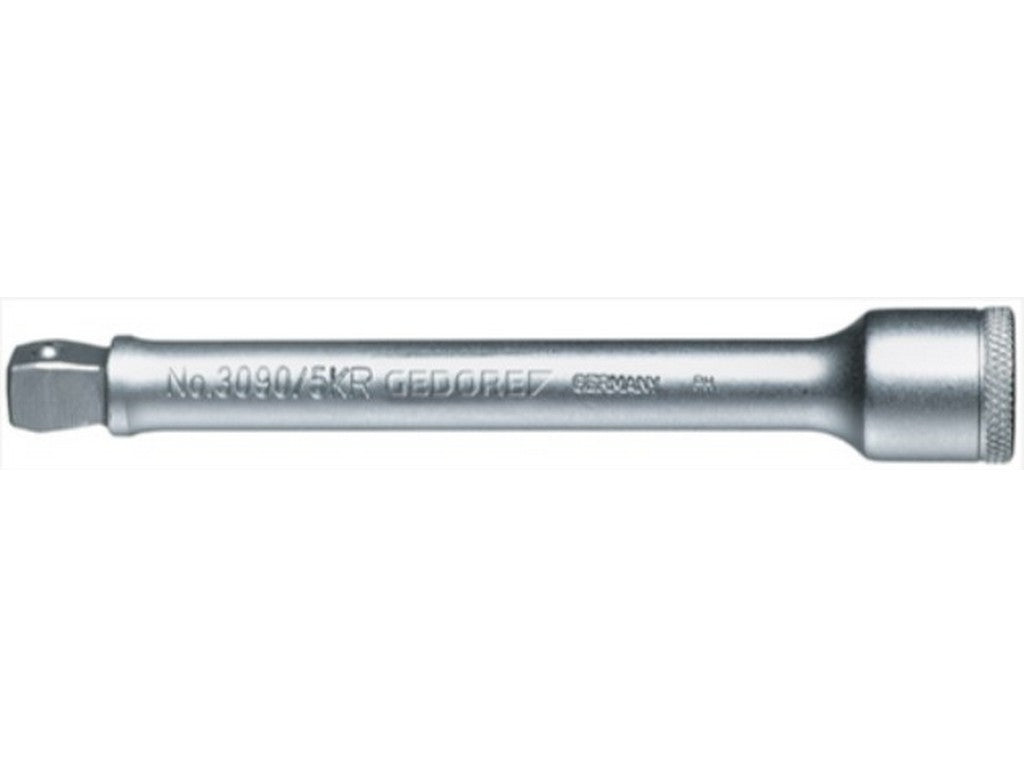

Gedore extension 3/8 125mm long

Product Overview

The GEDORE universal extension 3/8" 125 mm (3090 KR-5) is an extension piece with a universal joint designed for hand-operated sockets and accessories with a square drive. The product is designated as model 3090 KR-5 with item number 1845756 and features a ball end locking mechanism that holds sockets and adapters in place.

Material and Finish

• Material: vanadium steel 31CrV3.
• Surface: polished, chrome-plated.
• Construction: ball end with locking function.

Typical Applications

The product is specified for use with hand-operated sockets and accessories with a square drive, in accordance with DIN 3120 and ISO 1174, where a ball-locking device is used to secure the socket and extension piece.

Functional Properties

• Universal joint allowing up to 15° rotation between the extension piece and the socket/accessory.
• Drive connector square: 10 mm (3/8").

Product information and technical data are provided by the manufacturer GEDORE and can be found in the manufacturer's product documentation.

Specifications

• Product name: GEDORE universal extension 3/8" 125 mm (3090 KR-5).
• Item number / manufacturer's article number: 1845756.
• Total length: 125 mm.
• Net weight: 0.11 kg.
• Drive connector square: 10 mm (3/8").
• Material: vanadium steel 31CrV3 (Chrome-vanadium steel).
• Surface: polished, chrome-plated.
• Ball end with locking function (ball end / ball locking device).
• Operation method: hand-operated (for sockets and accessories with square drive according to DIN 3120 and ISO 1174).
• Angle capacity: can rotate/pivot up to 15°.
• Contents: 1 pc. (specified as quantity on the manufacturer's product page).

Source: Product information from GEDORE's product page (model 3090 KR-5, item no. 1845756).
