Product Overview

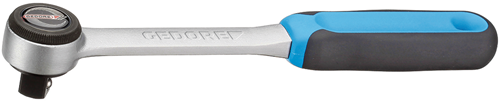

This reversible ratchet from GEDORE, GEDORE 3093 U-3 (art. no. 6237090), is a 3/8" drive ratchet with a total length of 200 mm. The product is specified by the manufacturer as particularly suitable for working in confined spaces and meets the stated standards.
Design and Mechanical Properties

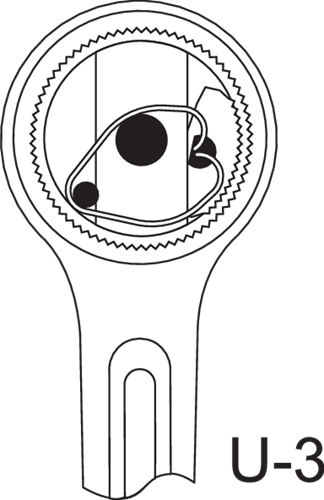

- Reversible mechanism with fine-toothed metal gear (72 teeth) and return angle of 5°.

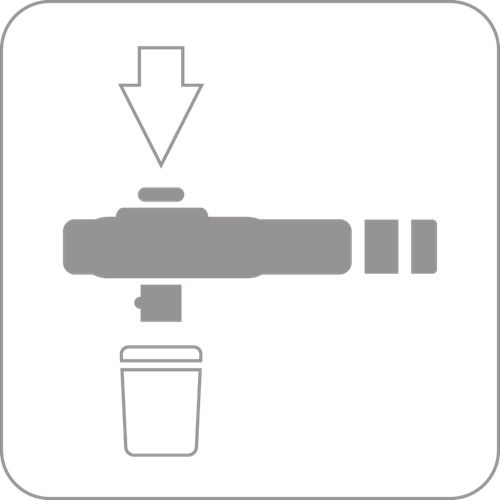

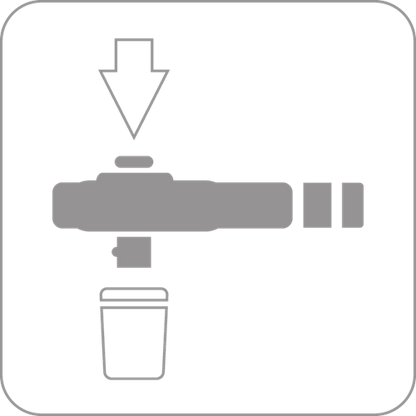

- Ball locking device for holding sockets.
- Ratchet head height: 33.5 mm.
- Handle: non-slip 2-component grip with suspension hole.
- Material: chrome-vanadium steel 31CrV3, chrome-plated surface.
Typical Applications
According to the manufacturer's product text, the GEDORE 3093 U-3 is characterized as particularly suitable for working in confined spaces. This feature is directly indicated by the manufacturer and is reproduced here without further generalization.
Standards and Compatibility
- Manufactured in accordance with DIN 3122 and ISO 3315.
- Suitable for hand-operated sockets and accessories with square drive as described by the manufacturer (drive square 3/8").
Documentation
The manufacturer's product description contains the technical specifications used in this text. Source: GEDORE product page for 3093 U-3 (art. no. 6237090).
Specifications
- Product name: GEDORE 3093 U-3 (art. no. 6237090).
- Drive: 3/8" (drive square inch).
- Drive connector square: 10 mm.
- Total length: 200 mm.
- Total width: 35 mm.
- Total height: 33 mm.
- Ratchet head height: 33.5 mm.
- Number of teeth: 72 (fine-toothed metal disc).
- Return angle: 5°.
- Material: Chrome-vanadium steel 31CrV3, chrome-plated.
- Handle: 2-component, non-slip with suspension hole.
- Locking function: Ball locking device.
- Weight: 0.27 kg.
- Standards: DIN 3122, ISO 3315.
- Source: GEDORE product page for 3093 U-3 (art. no. 6237090).
