GEDORE VDE 30 12
The GEDORE VDE 30 12 is an insulated 3/8" socket for 12 mm hexagon screws. It is used with hand tools when working with fasteners in electrical panels, installations, or other tasks where VDE protection is required. The point here is not just to grasp the bolt, but to be able to work with a socket designed for electrical work while also fitting standard 3/8" drive tools.
The socket is made of chrome-vanadium steel 31CrV3 and has a 6-point grip on the workpiece. This provides a classic and secure gripping surface on hexagon screws. At the same time, it is insulated up to 1000 V according to EN 60900/IEC 60900, and GEDORE specifies two-layer Check-Tool insulation and 16–18 mm insulation overhang. These are precisely the types of details that matter in practice because they support work in environments close to live voltage when the tool is used correctly by trained electricians.
With an overall length of 44 mm and a width of 23 mm, it is compact enough for many tasks where space is limited. ISO 1174 is also indicated in the product data, so it fits into a professional 3/8" system where uniform and reliable connection is expected.
Specifications
- Manufacturer: GEDORE
- MPN: 2946432
- EAN: 4010886947463
- Type: VDE 3/8" hexagon socket insert
- Size: 12 mm
- Grip: 6-point

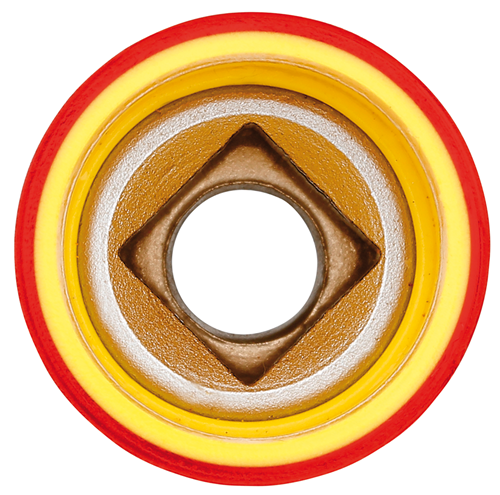

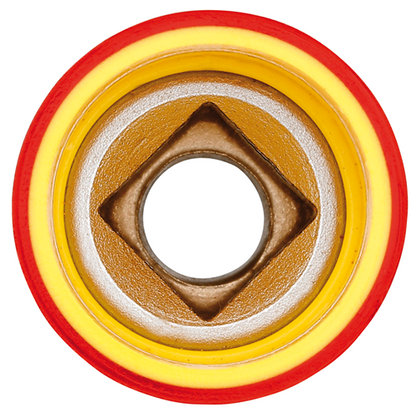

- Drive square: 10.0 mm (3/8")
- Material: chrome-vanadium steel 31CrV3
- Insulation: up to 1000 V according to EN 60900/IEC 60900
- Check-Tool insulation: two-layer
- Insulation overhang: 16–18 mm

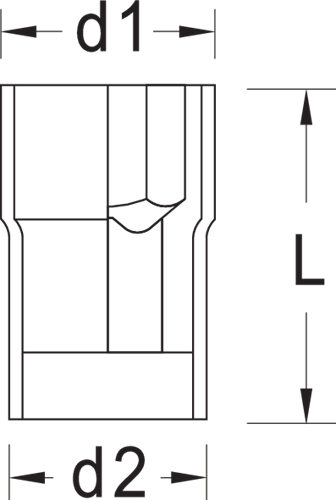

- Length: 44.0 mm
- Width: 23 mm
- Weight: 0.04 kg
- ISO 1174
- See datasheet from the manufacturer
