Product Overview
The GEDORE VDE 30 16 (code 2946475) is a VDE-insulated 6-point hexagon socket for 3/8" square drive. The product is made from GEDORE vanadium steel 31CrV3 (chrome vanadium steel) and features VDE protection up to 1000 V in accordance with EN 60900/IEC 60900.Materials and Standards
- Material: GEDORE vanadium steel 31CrV3 (chrome vanadium steel).
- Electrical insulation: Protective insulation up to 1000 V according to EN 60900/IEC 60900 with 2-fold Check-Tool insulation.
- Drive and tolerances: Square drive in accordance with DIN 3120 - C 10 and ISO 1174.
Functional Characteristics
The GEDORE VDE 30 16 is a 6-point (hexagon) socket intended for manual use on a 3/8" (0.375") square drive. The insulation design includes an insulation overhang of 16–18 mm and 2-layer Check-Tool insulation to ensure the stated electrical protection.Documentation
Source: Product information at GEDORESpecifications
- Product: GEDORE VDE 30 16 (code 2946475).
- Type: 6-point hexagon socket for 3/8" square drive.
- Width across flats: 16 mm.

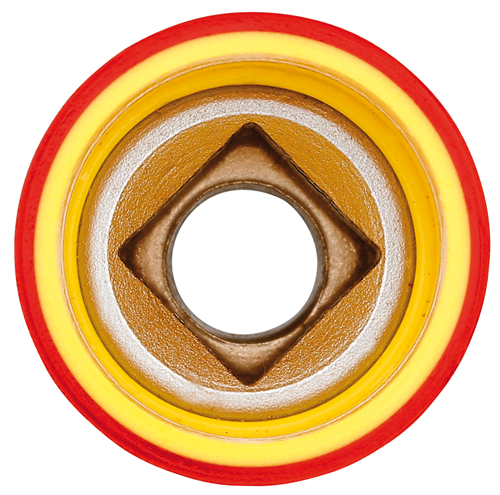

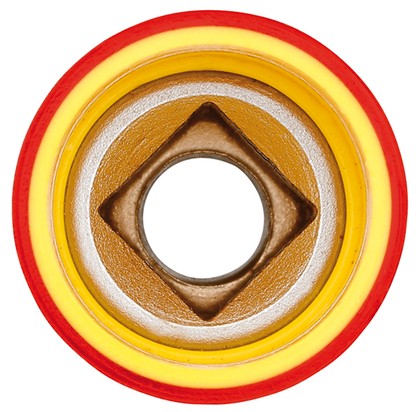

- Drive mount, square (metric): 10.0 mm.

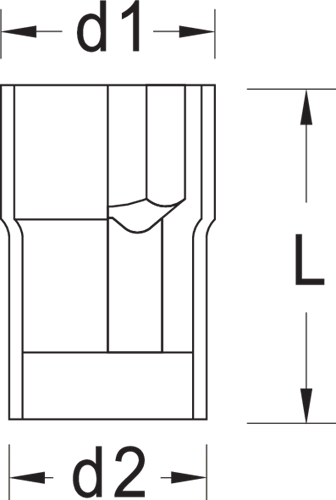

- Insert-Ø 1: 26.2 mm; Insert-Ø 2: 23.0 mm.
- Working/total length: 46.0 mm (total length specified as 46 mm).
- Total width: 26.2 mm.
- Weight: 0.06 kg.
- Material: Chrome-vanadium steel 31CrV3.
- Surface/insulation: 2-fold Check-Tool insulation, VDE-insulated up to 1000 V.
- Standards: ISO 1174; EN 60900/IEC 60900.
- Safety: Ball retention groove (specified by the manufacturer).
