VDE 30 17 — VDE socket from GEDORE
Product Overview

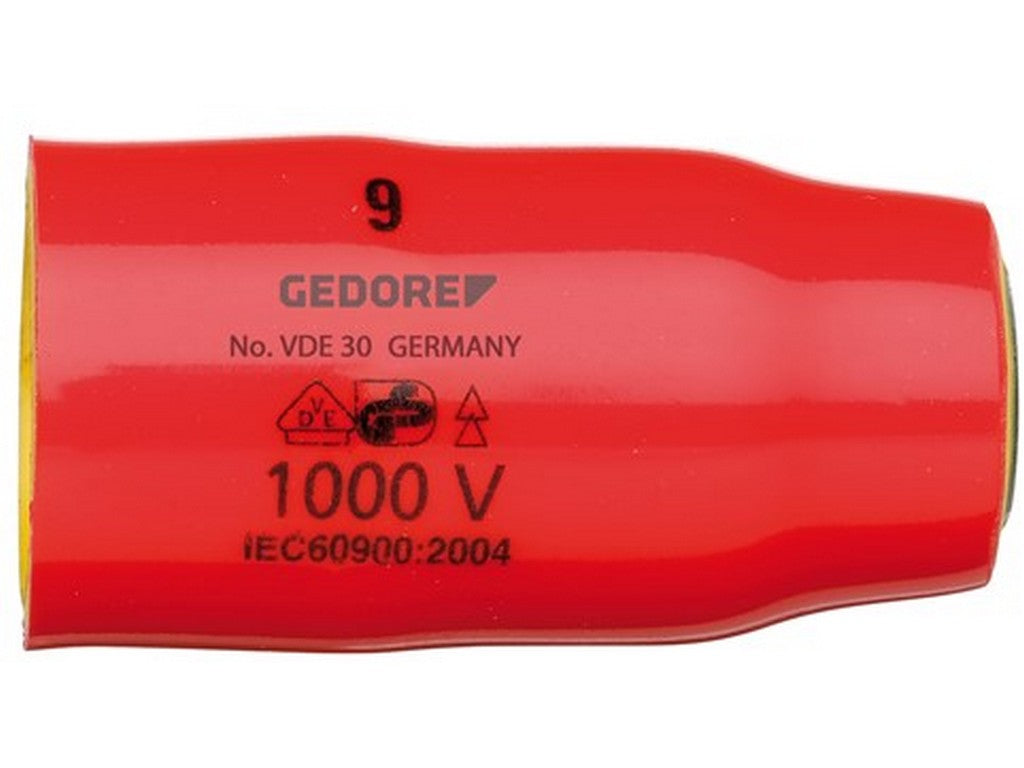

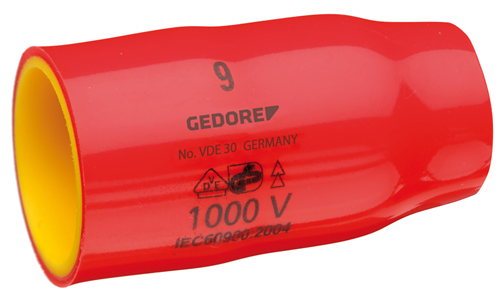

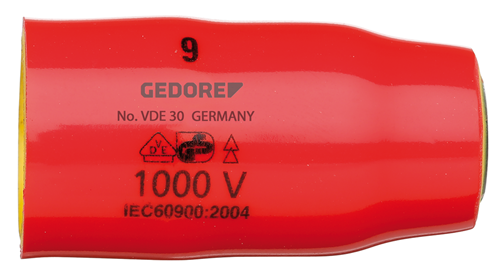

The VDE 30 17 (GEDORE item no. 2946483) is a VDE-insulated 6-point socket with a 17 mm width across flats. This is a manually operated socket with a 3/8" square drive (drive mount 10.0 mm), manufactured from GEDORE vanadium steel 31CrV3 (chrome-vanadium steel). The VDE 30 17 comes with two-layer Check-Tool insulation and protects up to 1000 V in accordance with EN 60900 / IEC 60900. The working length is stated as 46.0 mm.Technical Characteristics
The information below follows the technical data published by the manufacturer and is based on GEDORE's product information for item no. 2946483.Specifications
- Product name: VDE 30 17 (GEDORE item no. 2946483)
- Type: VDE-insulated socket, 6-point (hex)
- Width across flats: 17 mm

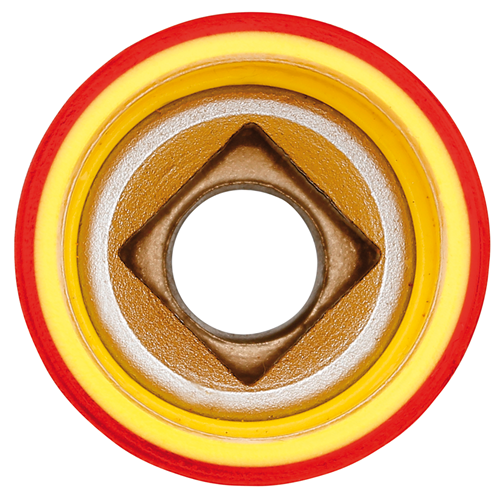

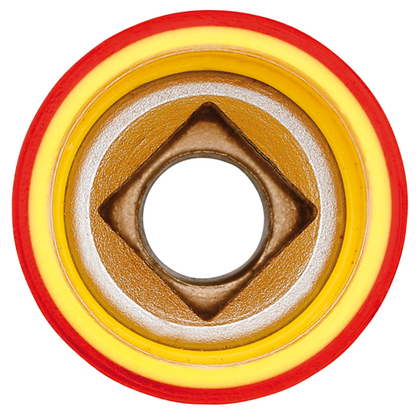

- Drive mount / square drive: 10.0 mm (3/8")
- Material: Chrome-vanadium steel 31CrV3
- Working length: 46.0 mm
- Protective insulation: up to 1000 V in accordance with EN 60900 / IEC 60900
- Insulation overhang: 16–18 mm
- Insulation system: 2-fold Check-Tool insulation
- Standards / compliance: DIN 3120 - C 10; ISO 1174; EN 60900 / IEC 60900
- Dimensions (stated): total width 27.5 mm; total length 46 mm
- Insert-Ø1 / Ø2: 27.5 mm / 23.0 mm
- Weight: 0.065 kg
- Surface: VDE insulation (2-fold Check-Tool insulation)
- Delivery contents: 1 pc.
Sources
- GEDORE product information for item no. 2946483 (official manufacturer data).
