VDE Socket Wrench Insert: GEDORE VDE 30 22 (2946521)
This VDE socket wrench insert GEDORE VDE 30 22 (Code no. 2946521) is a 3/8" 6-point hex socket for manual use with a width across flats of 22 mm. The product is specified by the manufacturer GEDORE and is clearly identified on the manufacturer's product page.
Function and Construction
The GEDORE VDE 30 22 is designed as a hex socket wrench insert with a 3/8" square drive intended for manual rotation. The material is chrome-vanadium steel (31CrV3) and the surface features double-sided Check-Tool insulation, VDE-insulated up to 1000 V in accordance with the specified standards on the manufacturer's website.
Typical Applications
- Used for manual tightening and loosening of 22 mm 6-point nuts/screws with a 3/8" square drive.
Documentation
The manufacturer's product page contains the technical data, dimensions, and standard specifications for GEDORE VDE 30 22 (2946521). See the manufacturer's product page for GEDORE VDE 30 22.
Specifications
- Product Name: GEDORE VDE 30 22 (Code no. 2946521)
- Type: VDE socket wrench insert, 3/8" square drive
- Width across flats: 22 mm
- Number of points: 6-point (hex)
- Material: Chrome-vanadium steel 31CrV3
- Surface/insulation: 2-fold Check-Tool insulation, VDE-insulated up to 1000 V

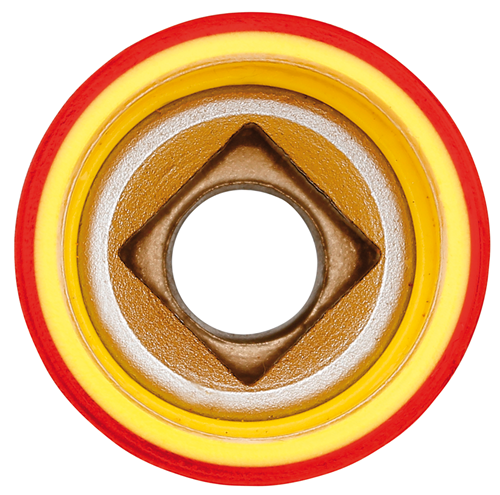

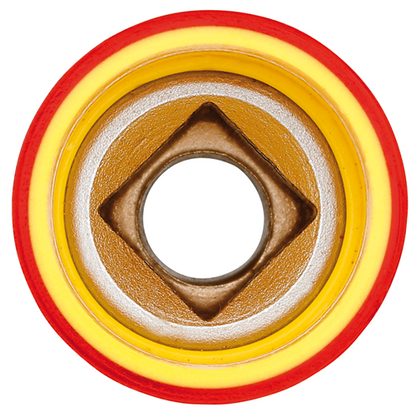

- Square drive (metric): 10.0 mm
- Square drive (inch): 3/8"
- Working length: 44.0 mm
- Total length: 48 mm
- Overall width: 33.7 mm

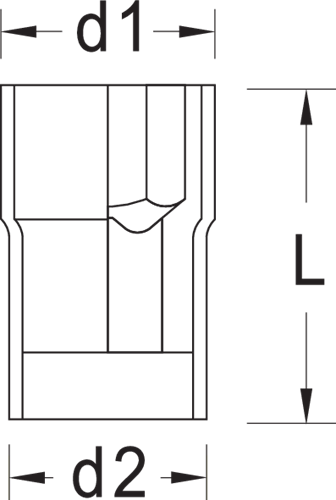

- Insert diameters: Ø1 = 33.7 mm, Ø2 = 23.0 mm
- Insulation overlap: 16 - 18 mm
- Weight: 0.105 kg
- Standards specified: ISO 1174, EN 60900/IEC 60900 (specified by manufacturer)
- Safety: Ball catch groove (specified by manufacturer)
- Content: 1 pc.
Source: Manufacturer information from GEDORE (product range and technical data on the manufacturer's site).
