GEDORE VDE 30 3/8" Socket, 6 mm
This is a manual socket for 3/8" square drive, designed for hexagon head screws with a 6 mm wrench size. It is used when working with a standard socket setup, but also requiring VDE-approved insulation for work on electrical installations.
The socket is made of GEDORE vanadium steel 31CrV3 and features protective insulation up to 1000 V according to EN 60900/IEC 60900. It is equipped with two-layer Check-Tool insulation and an insulation protruding length of 16–18 mm. This provides clear and controllable protection around the tool, which is relevant in professional electrical work where safety and fit must be in order.
With a length of 44 mm and a weight of 0.03 kg, it is compact and easy to carry in both a tool bag and a socket set. It is a small spare part in the assortment, but it belongs where precise work with insulated sockets is required in daily operation.
See datasheet from the manufacturer
Specifications
- Manufacturer: GEDORE
- MPN: 2946386
- Product name: VDE 30
- Type: 3/8" socket, manual
- For hexagon head screws with 6 mm wrench size
- Square drive: 3/8"
- Square holder: 10.0 mm
- Material: chrome-vanadium steel 31CrV3
- Insulation: up to 1000 V
- Standard: EN 60900 / IEC 60900
- Check-Tool insulation: yes, two-layer
- Insulation protrusion: 16–18 mm

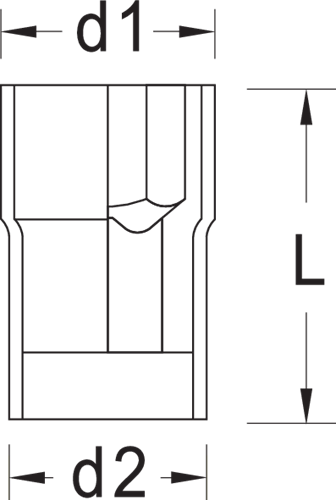

- Total length: 44 mm
- Total width: 23 mm
- Working/insertion length: 44.0 mm
- Socket diameters: 13.7 mm and 23.0 mm
- Weight: 0.03 kg
