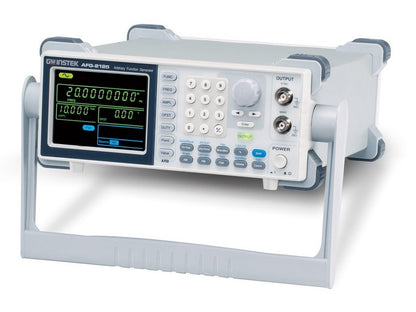

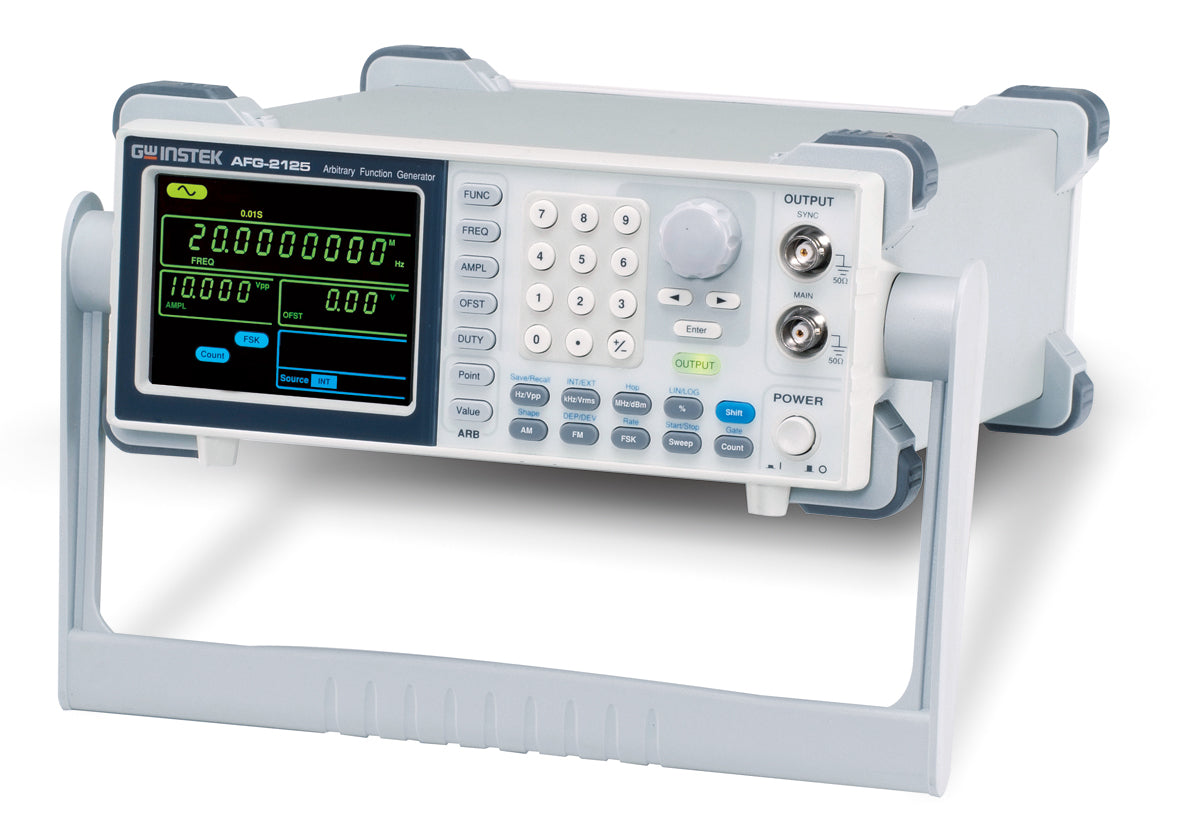

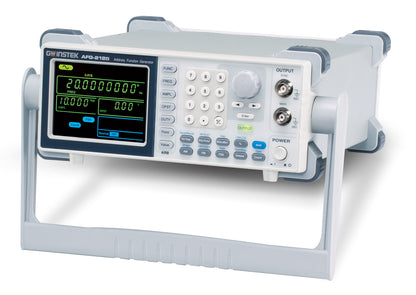

AFG-2125 – Arbitrary Function Generator (25 MHz)
The AFG-2125 is GW-INSTEK's 25 MHz model in the AFG-2100 series of DDS-based arbitrary function generators. The product generates standard waveforms and arbitrary traces via digital input or PC software, and displays parameter information on a 3.5" LCD. The AFG-2125 provides the basic measurement and signal output capabilities specified for the AFG-2100 series.
What the product does
The AFG-2125 generates sine, square (pulse), ramp/triangle, noise, and arbitrary waveforms with a 20 MSa/s sample rate and 10-bit vertical resolution. The unit includes internal memory for arbitrary waveforms (4k points) and supports adjustable duty cycle for square pulses. As an AFG-2100 model, it also offers AM/FM/FSK modulation, sweep, and a built-in frequency counter.
Key features
- Digital DDS architecture with 0.1 Hz resolution
- Waveform types: Sine, Square (pulse), Ramp (Triangle), Noise, Arbitrary
- 20 MSa/s sampling, 10-bit vertical resolution, 4k points arbitrary memory
- AM/FM/FSK modulation, sweep, and frequency counter (AFG-2100 models)
- USB device interface for remote control and waveform import from PC
Typical applications
- Measuring frequency characteristics of audio products
- Pulse signal as trigger or synchronization signal in electronic product testing
- Reference clock signal for electronic vibration signal simulation
- Noise simulation for communication systems and educational laboratories
- Pulse noise simulation
Further technical information and the manufacturer's complete data can be found in the manufacturer's datasheet:
See datasheet from the manufacturer
Specifications
- Model: AFG-2125 (AFG-2100 series, 25 MHz)
- Frequency range: 0.1 Hz ~ 25 MHz
- Sampling rate: 20 MSa/s
- Vertical resolution: 10 bit
- Arbitrary waveform memory: 4k points
- Waveforms: Sine, Square, Ramp, Noise, Arbitrary
- Adjustable duty cycle for square: 1% ~ 99% (series specification)
- Modulation and measurement functions: AM/FM/FSK, Sweep, Frequency counter (AFG-2100 models)
- USB Device interface; PC arbitrary waveform editing software (available)
- Amplitude (25 MHz): 1 mVpp ~ 5 Vpp (into 50 Ω); 2 mVpp ~ 10 Vpp (open-circuit)
- Display: 3.5" LCD
- Power: AC 100~240 V, 50~60 Hz; Power consumption: 25 VA
- Dimensions & weight: 266 × 107 × 293 mm; approx. 2.5 kg
