Digital Storage Oscilloscope — GDS-2304A

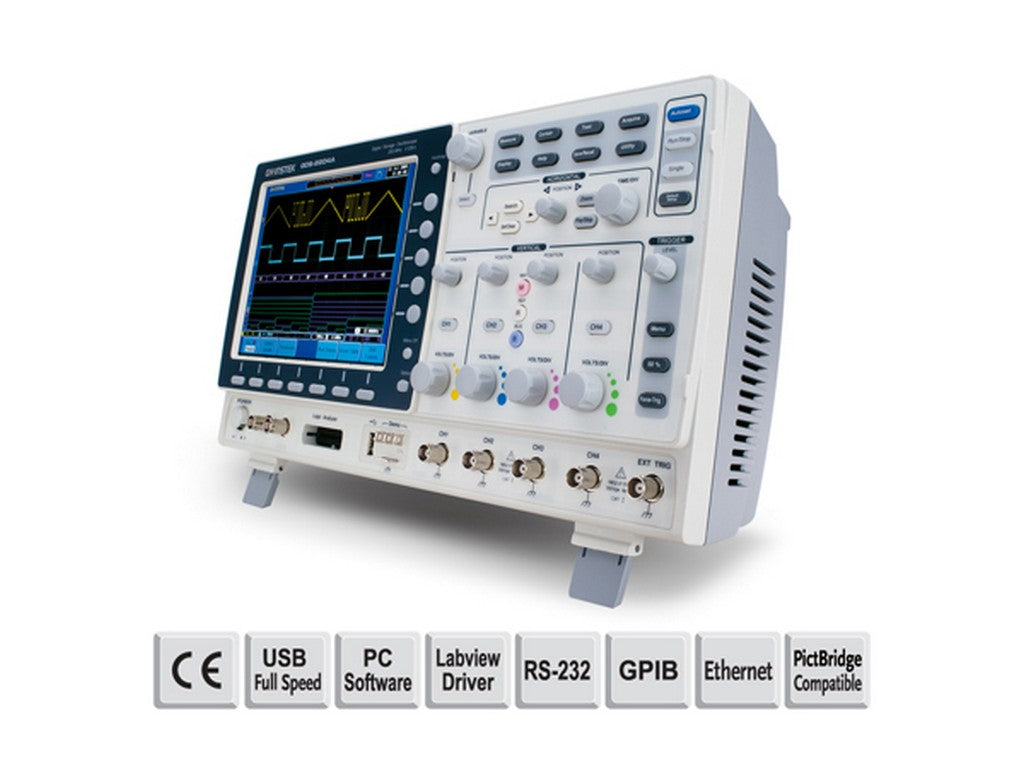

The GDS-2304A is a 4-channel digital storage oscilloscope from GW-INSTEK. The instrument offers up to 300 MHz bandwidth and is designed for signal acquisition and analysis with multiple simultaneous inputs. The GDS-2304A is used for displaying, measuring, and triggering electrical signals with multiple effective acquisition and analysis functions.
Features and Measurements
The GDS-2304A supports core oscilloscope functions such as real-time and equivalent-time sampling, a range of trigger types, and integrated analysis tools. The following features are explicitly documented:
- Real-time sampling: 1CH: 2 GSa/s; 2CH: 1 GSa/s
- Equivalent-time sampling: up to 100 GSa/s
- Memory length: 1CH: 2 Mpts; 2CH: 1 Mpts
- Bandwidth: DC–300 MHz (-3 dB)
- Stated rise time: approx. 1.17 ns
- Waveform update rate: up to 80,000 waveforms/s
- Vertical resolution: 8 bit
- Input impedance: 1 MΩ // 16 pF
Trigger, Analysis, and User Interface
The instrument offers several trigger and analysis functions, which are specified in the manufacturer's documentation. Examples from the datasheet include edge, pulse width, video, and logic or bus-related triggers (expandable with options), FFT analysis with various windows, as well as automatic measurements and cursors for amplitude and time analysis.
Display and Accessories
The GDS-2304A features an 8" SVGA TFT LCD display with 800 × 600 pixels. As standard, the instrument comes with GTP-350A-2 passive probes, as specified by the manufacturer.
Documentation
View datasheet from manufacturer
Specifications
- Manufacturer: GW-INSTEK
- Model: GDS-2304A (4 channels)
- Type: Digital Storage Oscilloscope
- Bandwidth: DC–300 MHz (-3 dB)
- Stated rise time: approx. 1.17 ns
- Real-time sampling: 1CH: 2 GSa/s; 2CH: 1 GSa/s
- Equivalent-time sampling: up to 100 GSa/s
- Memory length: 1CH: 2 Mpts; 2CH: 1 Mpts
- Display: 8" TFT LCD (800 × 600 SVGA)
- Waveform update rate: up to 80,000 waveforms/s
- Input impedance: 1 MΩ // 16 pF
- Vertical resolution: 8 bit
- Standard accessories: GTP-350A-2 passive probes
- Number of channels: 4
- Max. input voltage: 300 V (DC + AC peak), CAT I
- Physical dimensions (stated): 380 mm × 220 mm × 145 mm; weight: 4.2 kg
