Product Overview

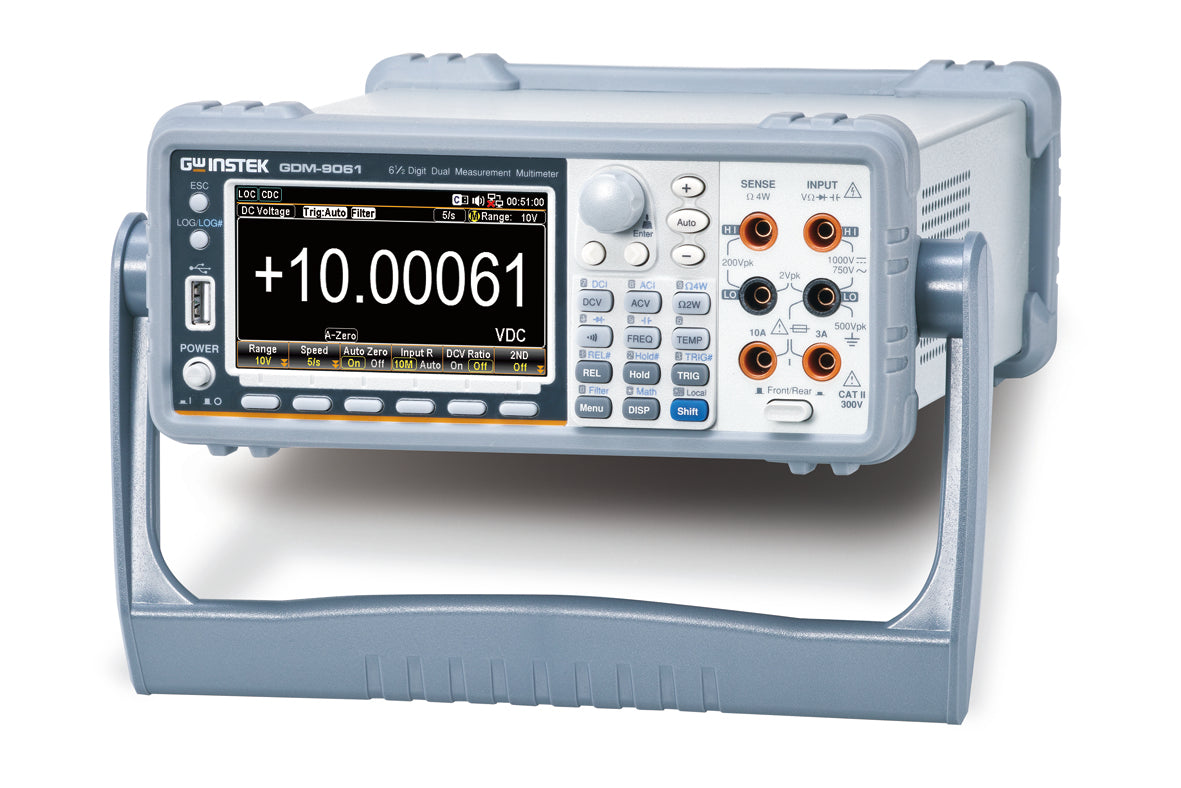

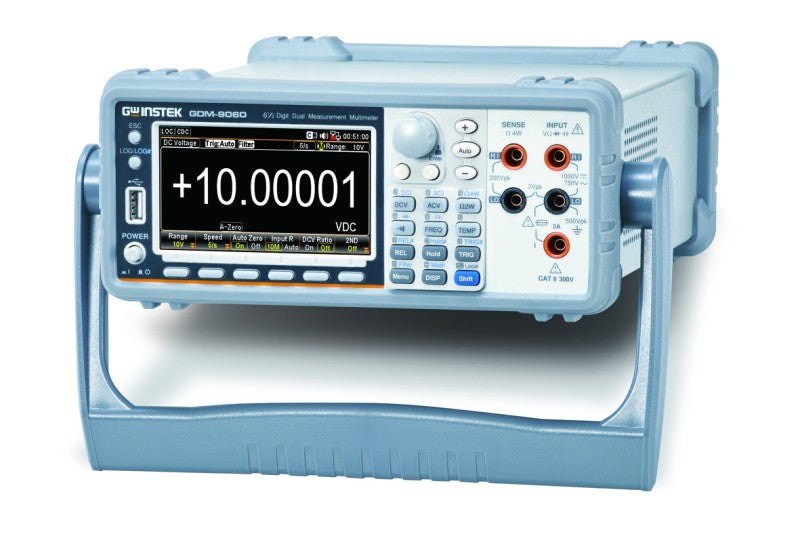

The GDM-906x is a 6 1/2-digit dual-measurement benchtop multimeter series from GW-INSTEK. The series offers 1,200,000 counts and includes two models, GDM-9061 and GDM-9060, with documented differences in DC voltage accuracy. The product description focuses on the instrument's measurement functions, connectivity, and provided documentation.Measurement Functions and Capabilities
The GDM-906x series offers 12 explicitly stated measurement functions: DC/AC voltage, DC/AC current, 2-wire/4-wire resistance, frequency, period, diode, continuity, temperature, and capacitance. The two models have stated DC voltage basic accuracy of 0.0035% for the GDM-9061 and 0.0075% for the GDM-9060, respectively.Interfaces and Operation
The instrument comes with standard interfaces: USB host/device, RS-232C, LAN, and digital I/O. GPIB is available as an option via a module (GDM-90G1), and the datasheet also specifies a 4.3" color TFT screen (WQVGA, 480 x 272) for display.Power Supply, Dimensions, and Supplied Accessories
The GDM-906x is specified with an AC 100/120/220/240 V ±10% mains voltage and a maximum power consumption of approximately 25 VA. The instrument's dimensions and weight are stated as 267(W) x 107(H) x 302(D) mm and approx. 3.5 kg. It comes with the following accessories: Safety Instructions x1, power cord x1, USB cable GTL-246 x1, test lead GTL-217 x1, and a CD with a user manual, upgrade program, and DMM-Viewer2 PC software.Documentation
See datasheet from the manufacturerSpecifications
- Product Name: GDM-906x (series)
- Manufacturer: GW-INSTEK
- Manufacturer's Part Number: 01DM906000GS
- Resolution: 6 1/2 digits (dual-measurement)
- Counts: 1,200,000
- Models: GDM-9061, GDM-9060
- DC Voltage Basic Accuracy: 0.0035% (GDM-9061), 0.0075% (GDM-9060)
- Measurement Functions: DC/AC voltage, DC/AC current, 2-/4-wire resistance, frequency, period, diode, continuity, temperature, capacitance
- Standard Interfaces: USB host/device, RS-232C, LAN, Digital I/O
- Option: GPIB card (GDM-90G1)
- Display: 4.3" color TFT WQVGA (480 x 272)
- Power Supply: AC 100/120/220/240 V ±10%
- Power Consumption: Max. 25 VA
- Dimensions and Weight: 267 x 107 x 302 mm, approx. 3.5 kg
- Included Accessories: Safety Instructions x1, Power cord x1, USB cable GTL-246 x1, Test lead GTL-217 x1, CD with user manual and software
