GW‑INSTEK GCT-9040 — AC ground bond tester
The GCT-9040 from GW‑INSTEK is an AC ground bond tester designed to measure ground bond resistance using AC test current. The instrument specifies a maximum AC test current of 40 A and measures resistance in the range of 1 mΩ to 650 mΩ. The GCT-9040 uses a PWM switching amplifier architecture and provides measurement and control functions via the front panel and external interfaces.
Functionality and Design

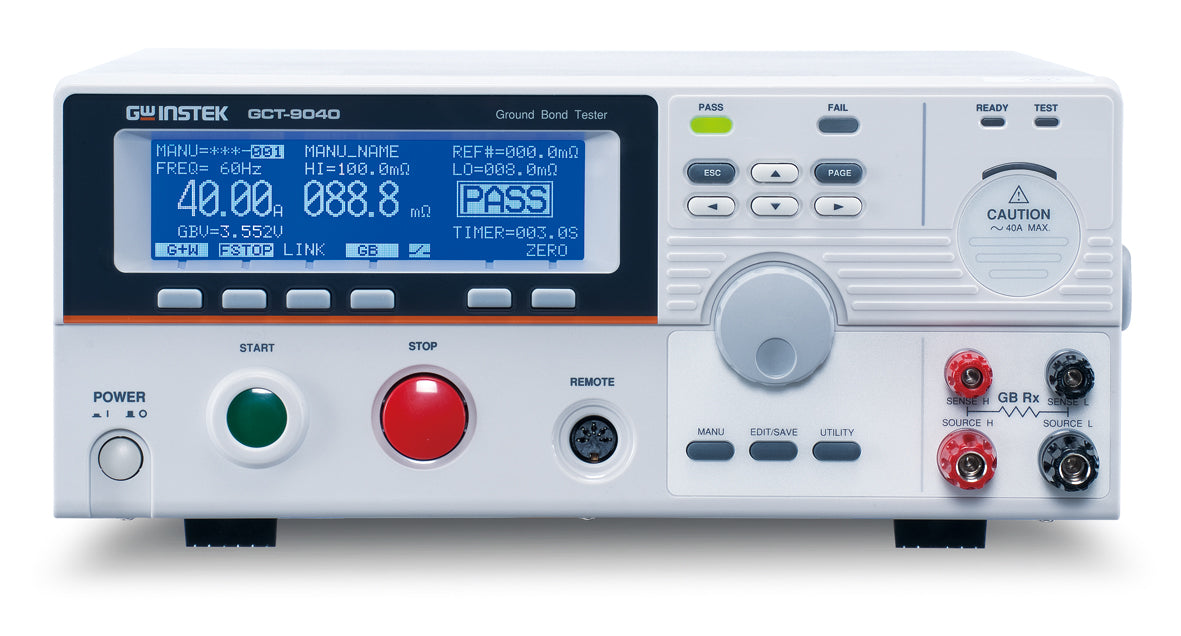

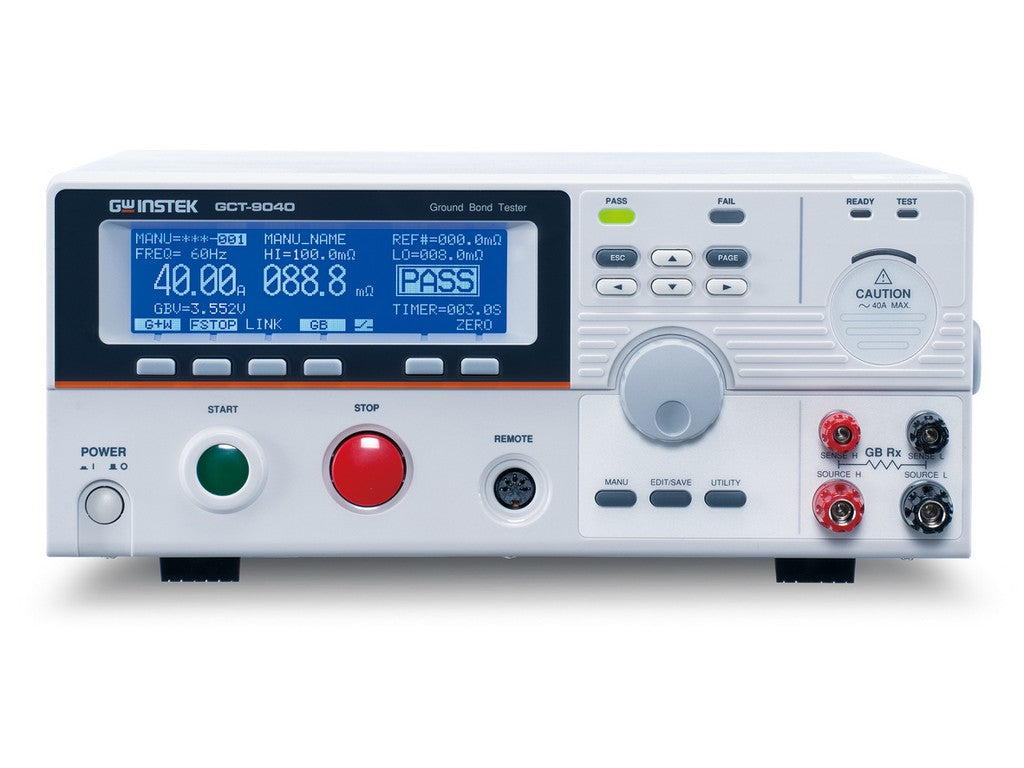

The GCT-9040 performs ground bond tests by supplying a controlled AC current and measuring the resulting resistance. The unit features a 240 x 64 ice-blue dot-matrix LCD for displaying measurement values and settings. The front panel includes a REMOTE terminal for starting/stopping test cycles, and the instrument can store up to 100 memory blocks with test conditions.
- Resistance measurement: 1 mΩ to 650 mΩ
- Maximum AC test current: 40 A
- PWM switching amplifier design
- 240 x 64 ice-blue dot-matrix LCD
- Front-panel REMOTE terminal (start/stop)
- Up to 100 memory blocks for test setups
- USB device interface; option for GPIB
- Can be connected to GW Instek GPT-9800/9900 series to form multi-functional or simultaneous test systems
Documentation
Specifications
- Manufacturer: GW‑INSTEK
- Model: GCT-9040
- Type: AC ground bond tester
- Maximum AC test current: 40 A
- Resistance range: 1 mΩ to 650 mΩ
- Amplifier design: PWM switching amplifier
- Display: 240 x 64 ice-blue dot-matrix LCD
- Front-panel REMOTE terminal for start/stop
- Up to 100 memory blocks for test conditions
- Interfaces: USB device; optional GPIB
- Compatibility: Can be connected to GPT-9800/9900 series for multi-functional/simultaneous test systems
