GW-INSTEK GPE-1323
The GW-INSTEK GPE-1323 is a single-channel linear DC power supply for tasks requiring a stable and adjustable DC voltage. It delivers up to 32 V and 3 A, with a total output power of 96 W. This makes it suitable as a laboratory and workshop power supply when precise voltage and current settings are needed, along with continuous monitoring on the display.

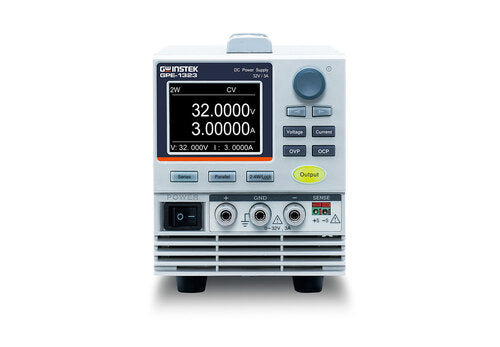

On the front, there is a 2.4" TFT LCD and an encoder, allowing direct setting and reading. This is a practical solution for quickly adjusting values and monitoring both voltage and current without external equipment.
Several protection functions are built-in, including OVP, OCP, and OTP. Additionally, it features an output switch and key lock on the front panel. This is useful in a professional work environment where unwanted changes during measurements or tests should be avoided.
The power supply can also be connected in series or parallel with other units of the same model. In series, it can provide up to 64 V, and in parallel, up to 6 A. This offers more flexibility if the task requires different voltage or current conditions than a single unit can provide alone.
Output quality has also been considered. Ripple and noise are specified at ≤ 0.5 mVrms, and the response time is ≤ 100 µs for load changes. These are relevant characteristics when the supply is used in test setups where a quiet and fast-responding voltage source is important.
Typical applications
- Electronics workshops and laboratories
- Testing and troubleshooting circuits
- Adjustment and commissioning of equipment
- Powering applications that require stable DC voltage
See datasheet from the manufacturer
Specifications
- Manufacturer: GW-INSTEK
- MPN: GPE-1323
- Single-channel linear DC power supply
- Output: 0 V to 32 V
- Output current: 0 A to 3 A
- Max. output power: 96 W
- Display: 2.4" TFT LCD
- Ripple & noise: ≤ 0.5 mVrms (5 Hz to 1 MHz)
- Response time: ≤ 100 µs (50% load change, minimum load 0.5 A)
- Protection: OVP, OCP, OTP
- Output On/Off switch
- Front-panel key lock
- Series and parallel connection with units of the same model
- Input voltage: AC 100 V, 120 V, 220 V, 240 V ± 10 %, 50 Hz or 60 Hz
- Power consumption: 300 VA
- Dimensions: 107 mm x 124 mm x 313 mm (W x H x D)
- Weight: approx. 5.2 kg
- GTIN/EAN: not verified in the provided data
