Product Overview

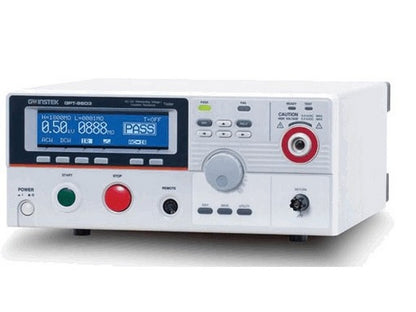

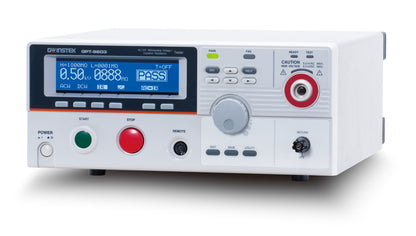

The GPT-9601 is the AC withstanding voltage model in the GW Instek GPT-9600 series. The unit performs AC withstanding (hipot) tests from 0.10 kV to 5.00 kV AC with a test capacity of 100 VA and provides True RMS measurement of AC current. The GPT-9601 is designed for routine testing of components and products requiring controlled high-voltage application and measurement.Key Features
- AC withstanding (hipot) test range: 0.10 kV–5.00 kV AC
- 100 VA AC test capacity
- True RMS AC current measurement
- ARC detection and zero-crossing turn-on
- PWM switching for stable output and efficiency
- Safety interlock and remote terminal/signal I/O
- 240 x 48 dot-matrix LCD for status and measured values
Typical Applications
- Information technology equipment
- Consumer products
- R.L.C. components
- Other AC/DC withstanding test tasks where the cut-off is lower than 20 mA AC or 5 mA DC
Documentation
Specifications
- Manufacturer: GW‑Instek
- Model: GPT-9601
- Function: AC withstanding-voltage tester
- AC output voltage range: 0.10 kV ~ 5.00 kV AC
- Output resolution: 10 V
- Output accuracy: ±(1.5% of setting + 2 counts) with no load
- Maximum test capacity: 100 VA (5 kV / 20 mA)
- Maximum test current: 20 mA (0.5 kV < V ≤ 5 kV); 5 mA (0.1 kV ≤ V ≤ 0.5 kV)
- Output waveform: Sine wave
- Output frequency: 50 Hz / 60 Hz selectable
- RMS current measurement: True RMS
- Current measurement range: 0.01 mA ~ 20.0 mA
- Current resolution: 0.01 mA / 0.1 mA
- ARC detection: Yes
- Zero-crossing turn-on: Yes
- Display: 240 x 48 dot-matrix LCD
- Standard accessories: Power cord x1; Interlock Key x1; Remote Cable GHT-119 x1; Test lead GHT-114 x1
