AC/DC Withstanding Voltage Tester
Product Overview
The GPT-9602 from GW-INSTEK is an AC/DC withstanding voltage tester designed to perform controlled withstand voltage tests. The device is part of the GPT-9600 series and offers both AC and DC withstand testing functions as confirmed by the manufacturer's documentation.What it Does
The GPT-9602 generates a regulated high-voltage output to verify insulation durability and withstand voltage capabilities. The device supports AC output in the range of 0.10 kV to 5.00 kV and DC output in the range of 0.10 kV to 6.00 kV, and the platform specification indicates an AC test capacity of 100 VA. The instrument includes features such as RMS current measurement, ARC detection, zero crossing turn-on, and a PWM switching amplifier for stable output.Operation and Connectivity

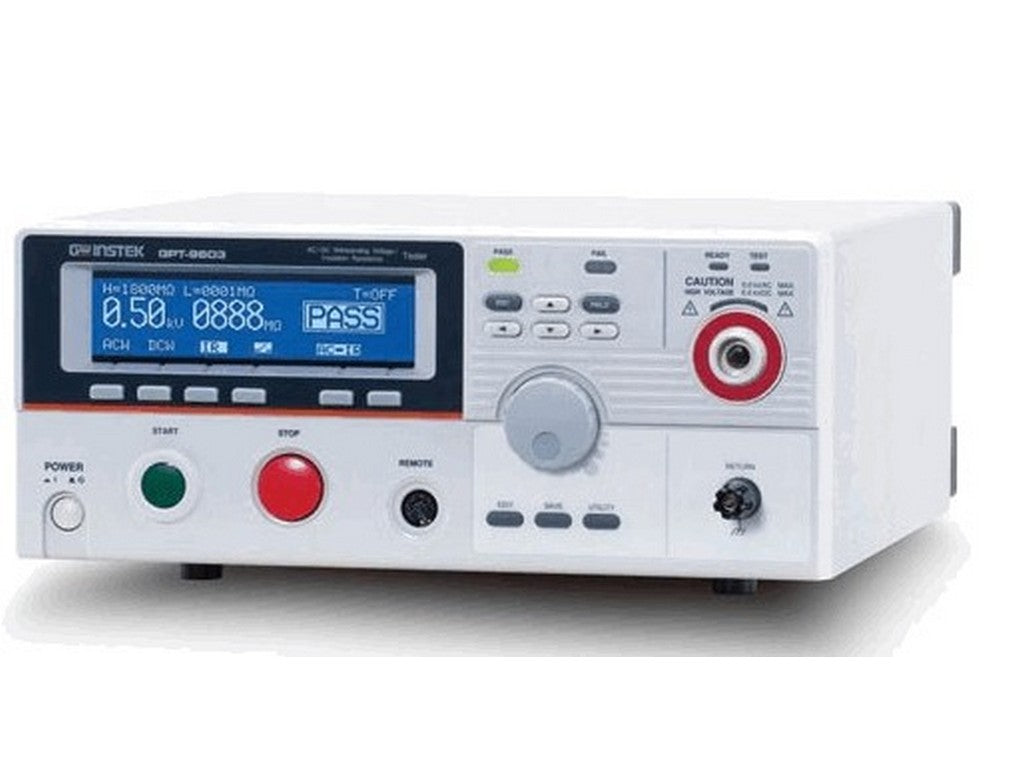

The front panel features a 240 x 48 dot matrix LCD for displaying test parameters and measured values, as well as colored LED indicators for status. There is an interlock function, a remote terminal on the front panel, and signal I/O on the rear for remote control, as documented in the manufacturer's specifications. Standard accessories include a power cord, interlock key, remote terminal cable, and a test lead. See manufacturer's datasheetTypical Applications
- Information Technology Equipment (indicated in manufacturer's documentation)
- Consumer Products (indicated in manufacturer's documentation)
- R.L.C. Component Testing (indicated in manufacturer's documentation)
- Other AC/DC Withstanding tests where cutoff current is lower than 20 mA AC or 5 mA DC (indicated in manufacturer's documentation)
Specifications
- Manufacturer: GW-INSTEK
- Model: GPT-9602
- Function: AC and DC withstanding voltage tester
- AC output range: 0.10 kV ~ 5.00 kV (AC)
- DC output range: 0.10 kV ~ 6.00 kV (DC)
- AC test capacity: 100 VA
- Display: 240 x 48 Ice Blue dot matrix LCD
- RMS current measurement: indicated in manufacturer's documentation
- ARC detection: yes (indicated in manufacturer's documentation)
- Zero crossing turn-on: yes (indicated in manufacturer's documentation)
- PWM switching amplifier for enhanced efficiency and stability control: indicated in manufacturer's documentation
- Universal input: AC 100V~120V / 220V~240V ±10%, 50/60 Hz
- Standard accessories: power cord, interlock key, remote terminal cable, and test lead (indicated in manufacturer's documentation)
