AC/DC Withstanding Voltage and Insulation Resistance Tester

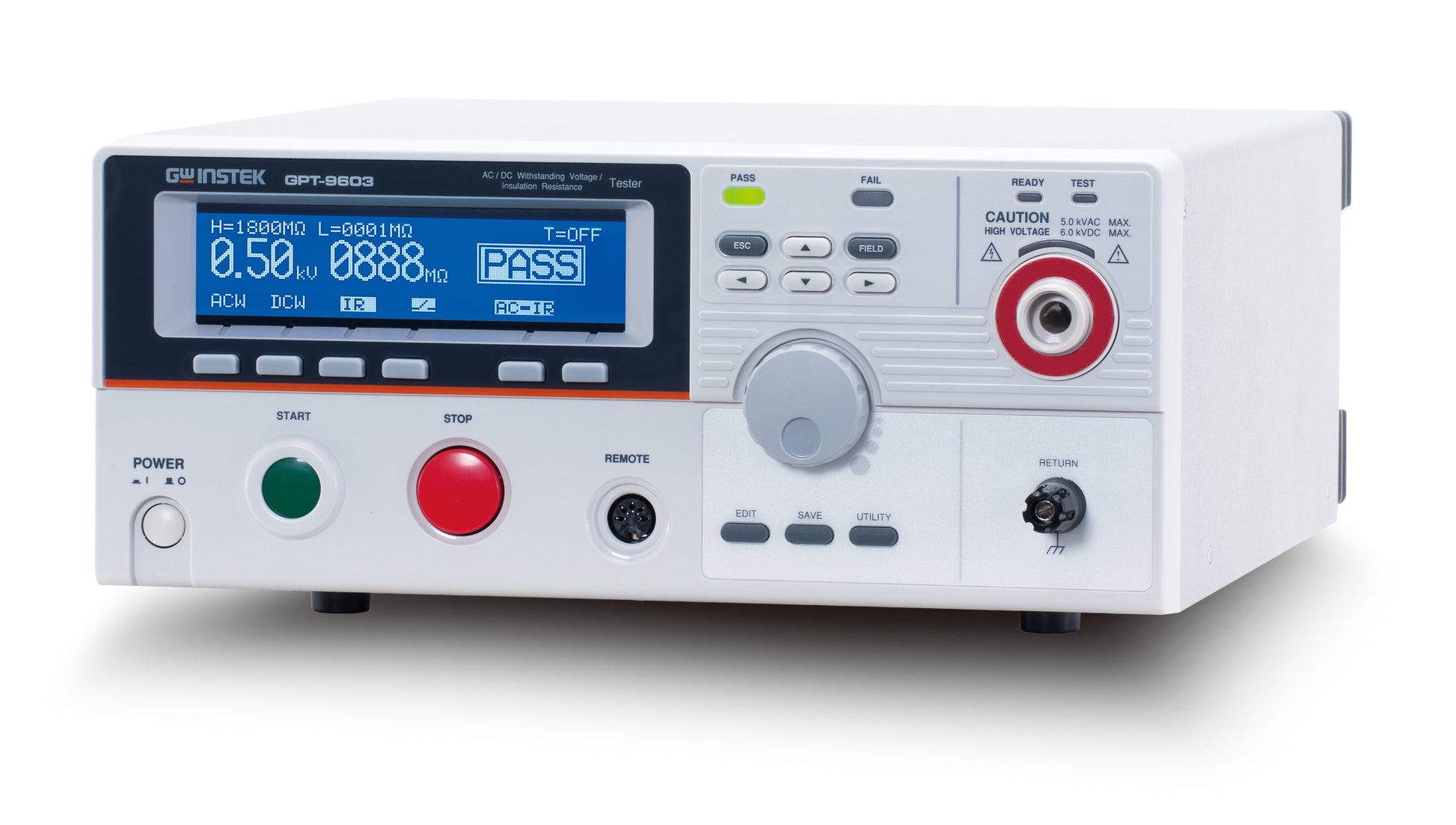

The GW-Instek GPT-9603 is an AC/DC withstanding voltage and insulation resistance tester designed to perform AC withstand, DC withstand, and insulation resistance tests. The GPT-9603 provides verified output ranges and measurement functions for systematic safety testing, with a panel display and features that support repetitive test sequences.
Function and Application
The unit can select between AC and DC test functions and offers both manual start and automated sequences (AC-IR, IR-AC, DC-IR, IR-DC). The display continuously shows test parameters, measured values, and result status, while status LEDs and an indicator above the output terminal show active output. The GPT-9603 supports remote control via the front panel remote terminal and signal I/O in the rear panel, and has an interlock function for safety management.
- AC output range 0.10 kV to 5.00 kV AC, maximum load 100 VA, maximum AC current 20 mA.
- DC output range 0.10 kV to 6.00 kV DC, maximum DC current 6 mA.
- 240 x 48 dot-matrix LCD, RMS current measurement, and ARC detection.
The GPT-9603 uses a PWM switching amplifier for improved efficiency and stability control of the output, as well as zero crossing turn-on to reduce impact on the test specimen during connection. AUTO-mode allows two test functions to be run in sequence without manual restart, which can reduce test time for combined test programs.
Typical Applications
- IT equipment
- Consumer products
- R.L.C. components
- Other testing tasks requiring AC/DC withstanding tests within the specified current limits
Standard accessories include power cord, interlock key, remote terminal cable GHT-119, and test lead GHT-114. For technical details and full specification set: See datasheet from the manufacturer.
Specifications
- Product: GW-Instek GPT-9603
- AC output range: 0.10 kV ~ 5.00 kV AC
- AC maximum rated load: 100 VA
- AC maximum current: 20 mA
- DC output range: 0.10 kV ~ 6.00 kV DC
- DC maximum current: 6 mA
- Display: 240 x 48 dot-matrix LCD
- RMS current measurement
- ARC detection
- Interlock function
- Standard accessories: power cord, interlock key, remote cable GHT-119, test lead GHT-114
- Other functions: PWM switching amplifier, zero crossing turn-on, AUTO test sequences (AC-IR, IR-AC, DC-IR, IR-DC)
