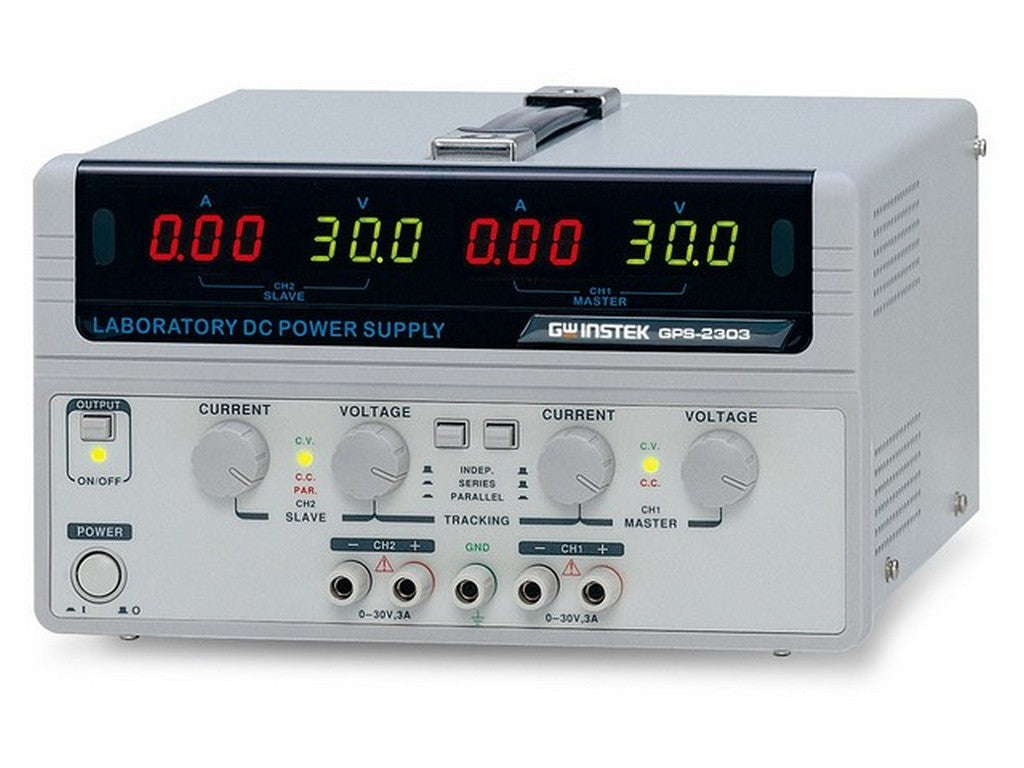

GW-INSTEK GPS-2303
The GW-INSTEK GPS-2303 is a linear DC power supply with two independent, isolated outputs. In practice, this means that you can work with two separate circuits on the same device without them unnecessarily affecting each other. Each channel can be adjusted from 0 to 30 V and from 0 to 3 A, making it suitable for many tasks in electronics work, testing, and development.
It is built for workbenches where stable power and a clear overview are needed. The front panel features three-digit LED displays that show voltage and current, and the output can be switched on and off with a separate ON/OFF switch. This makes it easier to set the values before applying voltage to the item being worked on. Additionally, there is protection against overload and reverse polarity, so both the power supply and the load are better protected against incorrect connections.
The unit can also be used in series up to 60 V/3 A and in parallel up to 30 V/6 A, providing more flexibility when one channel is not enough. Automatic fan speed control helps keep noise down during operation. For some installations, optional European jack-type terminals can be chosen.
See datasheet from the manufacturer
Typical applications
- Electronics laboratories and development work
- Testing of circuits and prototypes
- Workstations requiring two separate DC outputs
Specifications
- Manufacturer: GW-INSTEK
- MPN: GPS-2303
- Type: Linear DC power supply with 2 channels
- Outputs: 2 independent, isolated outputs
- Voltage per channel: 0 to 30 V
- Current per channel: 0 to 3 A
- Rated power: 180 W
- Series operation: up to 60 V / 3 A
- Parallel operation: up to 30 V / 6 A
- Front panel: three-digit LED displays for voltage and current
- Operation: output ON/OFF switch
- Protection: overload and reverse-polarity protection
- Cooling: automatic fan speed control
- Connection: optional European jack-type terminals
