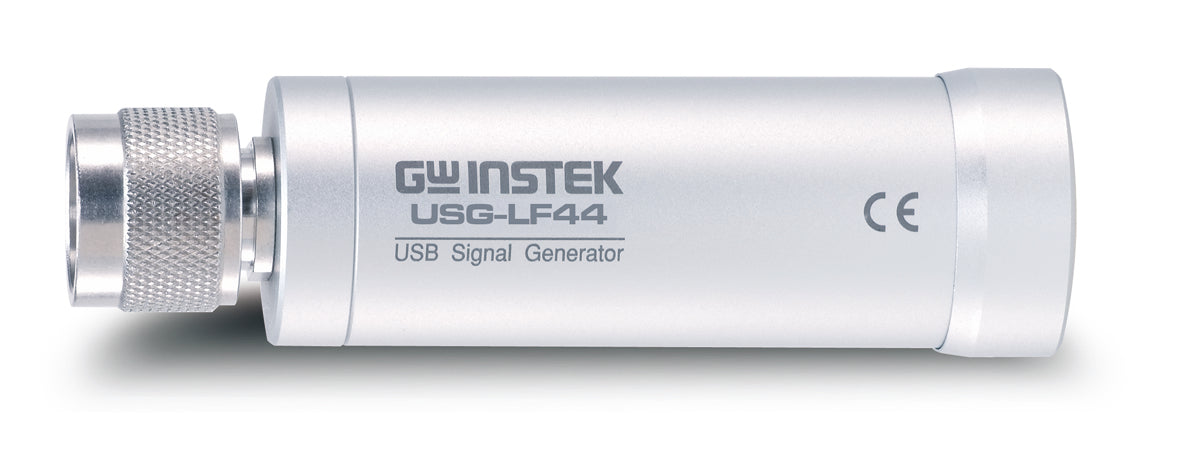

GW-INSTEK USG-LF44 RF signal generator
The GW-INSTEK USG-LF44 is a USB-powered RF signal generator for tasks requiring a stable signal in the range of 34.5 MHz to 4400 MHz. It is used to create a CW signal, i.e., a pure carrier signal without modulation, making it suitable for testing or adjusting RF equipment under controlled conditions.
It can operate in several modes, so you are not limited to a single fixed frequency. You can use fixed frequency, frequency sweep, frequency hopping, and power sweep. The output power can be set from -30 dBm to 0 dBm in 1 dB steps, allowing the signal level to be adjusted for specific measurement tasks.
Control is via USB 2.0 Mini B, and the unit is powered via USB. GW-INSTEK also provides PC software and an Android app for operation, allowing it to be flexibly integrated into both laboratory and development work.
The RF output uses a 50-ohm N-type male connector. A phase noise of -107 dBc/Hz at 100 kHz offset is specified, which is a relevant characteristic when the signal needs to be stable and useful for precision measurements.
A datasheet and product video from the manufacturer are included, which can be used to review technical details and practical operation.
See datasheet from the manufacturer
See product video from the manufacturer
Typical applications
- Testing and adjustment of RF equipment
- Sweep and hop measurements in development and laboratory environments
- Signal reference in tasks involving frequency conversion and IQ modulation
- Tracking generator function with GW-INSTEK GSP-730 spectrum analyzer
Specifications
- Manufacturer: GW-INSTEK
- MPN: USG-LF44
- Frequency range: 34.5 MHz to 4400 MHz
- Output power: -30 dBm to 0 dBm in 1 dB steps
- Operating modes: fixed frequency, single sweep/frequency sweep, frequency hopping, and power sweep
- Signal type: CW without modulation
- Phase noise: -107 dBc/Hz at 100 kHz offset
- Frequency resolution: 10 kHz
- Interface: USB 2.0 Mini B
- Power supply: 5 V nominal via USB
- Power consumption: 200 mA
- RF connector: N-type male
- Impedance: 50 ohm
- Supported operating systems: Windows, Linux, Mac, and Android
- Dimensions: 30 x 103 x 30 mm
- Weight: approx. 100 g
- EAN/GTIN: not specified in verified data
