STAUBLI SACR10-4N-39-TW

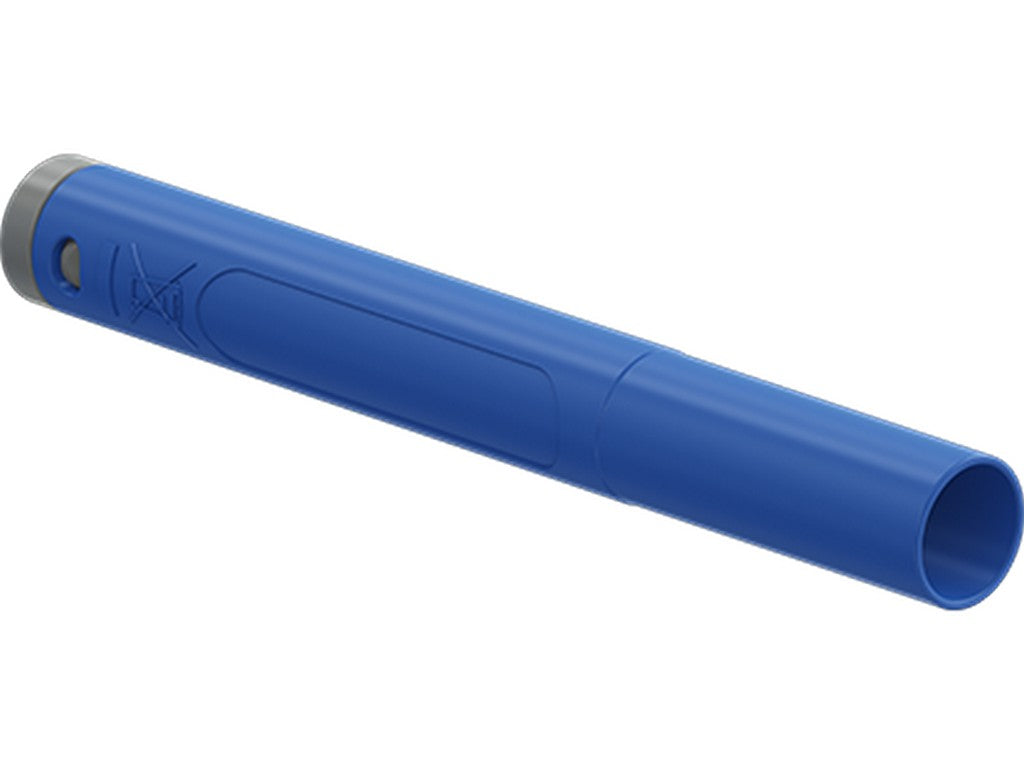

The STAUBLI SACR10-4N-39-TW is an extra-slim Ø4 mm plug for self-assembly of test leads. It is used when a test lead needs to be assembled with a secure and robust connection, and where the plug should take up as little space as possible.
The plug features a spring-loaded MULTILAM contact, which is the part of the design that ensures a stable contact surface. It is also designed with a rigid insulation sleeve and a crimp connection, making it suitable for professional assembly of test equipment. The electrical contact is based on CuZn with a nickel surface treatment.
In practice, this results in a plug designed for measurement and testing tasks where safety and correct connection are important. It is designated as test accessory according to IEC EN 61010-031 and has UR approval. The nominal values are 1000 V in CAT II and 600 V in CAT III, both at 19 A.
With an outer diameter of 8.0 mm, it is compact in design, yet still made for a standardized 4 mm plug world, which is common in testing and measurement work.
Typical applications
- Self-assembly of test leads
- Measurement and testing tasks in electrical engineering and electronics production
- Assembly of leads where a compact 4 mm connection is desired
Specifications
- Manufacturer: STAUBLI
- MPN: 662042-23
- Product name: SACR10-4N-39-TW
- Type: in-line, extra-slim Ø4 mm plug
- For self-assembly of test leads
- Spring-loaded MULTILAM contact
- Rigid insulation sleeve
- Crimp connection
- Electrical contact material: CuZn
- Surface treatment: nickel
- Outer diameter: 8.0 mm
- Nominal voltage: 1000 V, CAT II
- Nominal voltage: 600 V, CAT III
- Nominal current: 19 A
- Test accessory according to IEC EN 61010-031
- UR approval
See datasheet from the manufacturer
