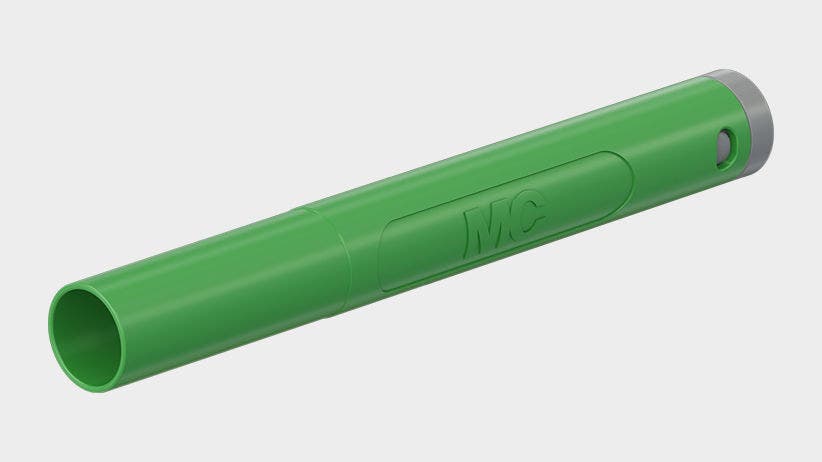

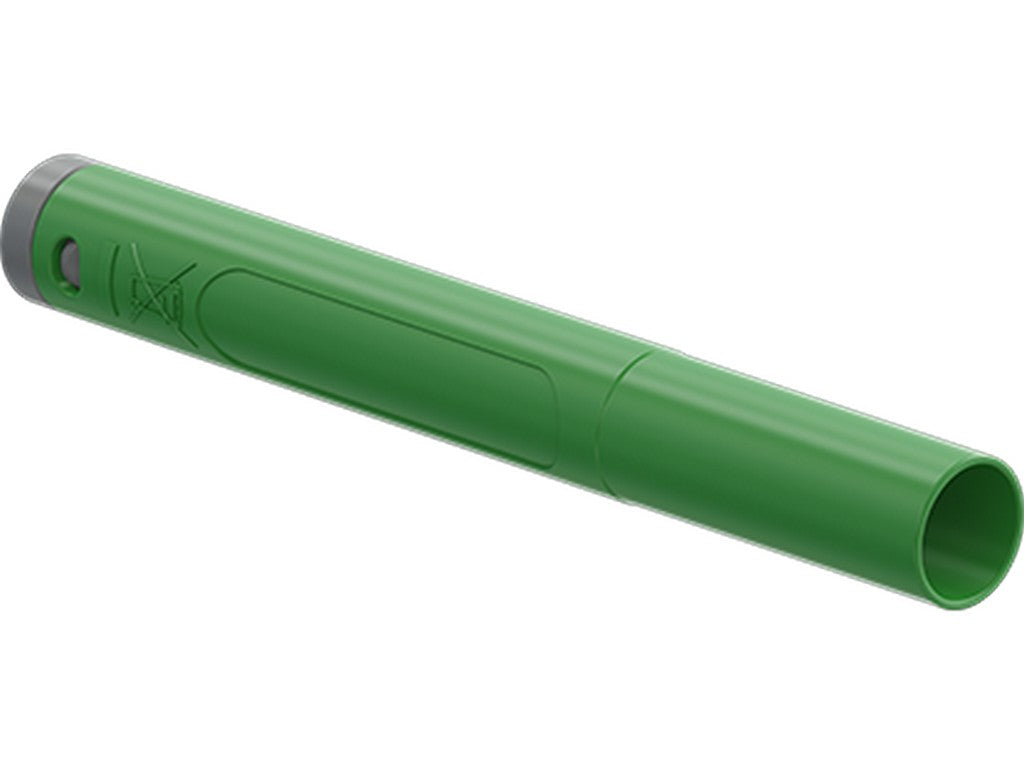

STAUBLI SACR10-4N-39-TW
The STAUBLI SACR10-4N-39-TW is an extra-slim 4 mm plug for test leads, designed for self-assembly. It is used when a test lead with a secure and reliable crimp connection is required, and where space around the connection is limited.
The plug features a spring-loaded MULTILAM contact and a rigid insulation sleeve. In practice, this means the contact is designed for a stable connection, while the solid sleeve protects and provides more robust handling in daily work. It is also rated for a maximum conductor diameter of 3.9 mm, equivalent to 1.0 mm², ensuring it fits the specified conductor size.
It is part of the classic 4 mm test technique, often used in electrical engineering, test equipment, and other professional measurement tasks where safe and standardized connections are required. It is specified according to IEC EN 61010-031 and has UR approval.
The electrical rating is 1000 V in CAT II and 600 V in CAT III, both at 19 A. The contact material is CuZn with a nickel surface, and the outer diameter is 8.0 mm.
Specifications
- Manufacturer: STAUBLI
- MPN: 662042-25
- 4 mm plug for self-assembly of test leads
- Inline, extra-slim design
- Spring-loaded MULTILAM contact
- Rigid insulation sleeve
- Crimp connection
- Rated voltage: 1000 V, CAT II
- Rated voltage: 600 V, CAT III
- Rated current: 19 A
- Contact material: CuZn
- Surface treatment: nickel
- Max. conductor diameter: 3.9 mm (1.0 mm²)
- Outer diameter: 8.0 mm
- Standard: IEC EN 61010-031
- Approval: UR
- See datasheet from the manufacturer
