STAUBLI SACR10-4N-39-TW

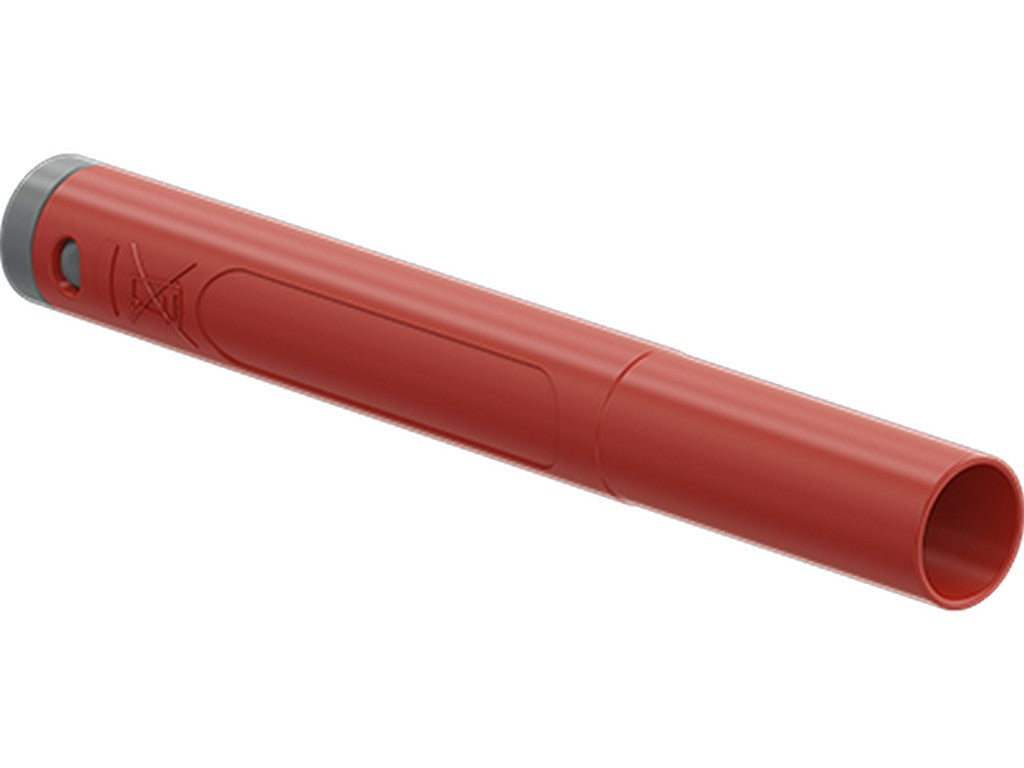

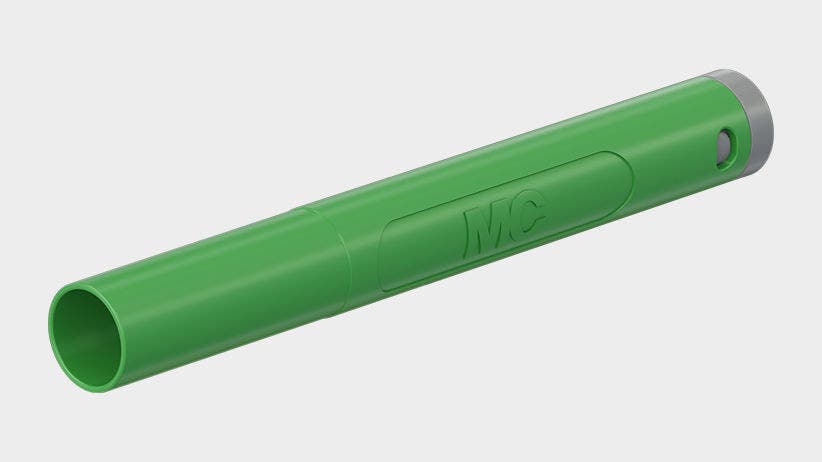

The STAUBLI SACR10-4N-39-TW is an extra-slim, in-line 4 mm plug for building test leads. It is used when assembling test leads for testing and measurement, and where a secure and compact connection is required. The spring-loaded MULTILAM contact is part of the electrical contact in the plug, while the rigid insulating sleeve helps make handling more robust.
The plug is designed for crimp connection, so the conductor is mechanically secured instead of soldered. This is relevant in professional workshop and laboratory work where a uniform and controlled assembly of test leads is desired. The outer diameter is 8.0 mm, and conductor cross-sections up to max. Ø 3.9 mm / 1.0 mm² can be used.
In practice, it is a component for measuring equipment where you build your own leads or replace a plug part in an existing setup. It is specified as test accessory according to IEC EN 61010-031, and it is rated for 1000 V CAT II and 600 V CAT III at 19 A.
Typical Applications
- Self-assembly of test leads
- Assembly of measurement and test cables
- Professional tasks in testing and measurement
Specifications
- Manufacturer: STAUBLI
- MPN: 662042-22
- Product Name: SACR10-4N-39-TW
- Connector System: Ø 4 mm
- Design: in-line, extra slim
- Contact: spring-loaded MULTILAM
- Connection: crimp
- Insulation: rigid insulating sleeve
- Rated values: 1000 V, CAT II, 19 A / 600 V, CAT III, 19 A
- Outer diameter: 8.0 mm
- Max. conductor: Ø 3.9 mm (1.0 mm²)
- Contact material: CuZn
- Surface treatment: nickel (Ni)
- Standard: IEC EN 61010-031
- Approval: UR
- Datasheet:
