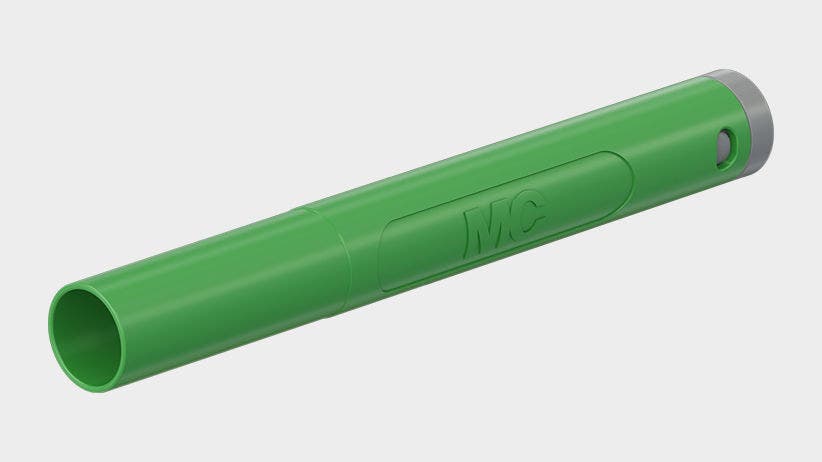

STAUBLI SACR25-4A-39-TW
The STAUBLI SACR25-4A-39-TW is an extra-slim 4 mm connector for building test leads. It is used when assembling your own test leads and requiring a compact connector with crimp termination. The rigid insulating sleeve and the spring-loaded MULTILAM contact help provide a stable connection in daily use.
The connector is designed for test and measurement tasks where space may be limited, but where safety and reliable contact are still required. The outer diameter is 8.0 mm, making it a relatively slim solution within the 4 mm system. The contact surface is Au plated, and the contact material is CuZn.
In practice, it fits well into professional test leads where one wants to build their own cable solution with a known connector type and documented ratings. It is specified as test accessory according to IEC EN 61010-031 and has UR approval.
For manufacturer's information, please use the datasheet here: See datasheet from manufacturer
Typical applications
- Building test leads
- Electrical measurement tasks in laboratory and service work
- Professional connections in 4 mm test systems
Specifications
- Manufacturer: STAUBLI
- MPN: 662045-24
- Product name: SACR25-4A-39-TW
- Connector system: 4 mm
- Outer diameter: 8.0 mm
- Termination: Crimp
- Contact: Spring-loaded MULTILAM
- Insulation: Rigid insulating sleeve
- Rated voltage/rated current: 1000 V, CAT II, 32 A
- Rated voltage/rated current: 600 V, CAT III, 32 A
- Contact material: CuZn
- Contact plating: Au
- Standard: IEC EN 61010-031
- Approval: UR
