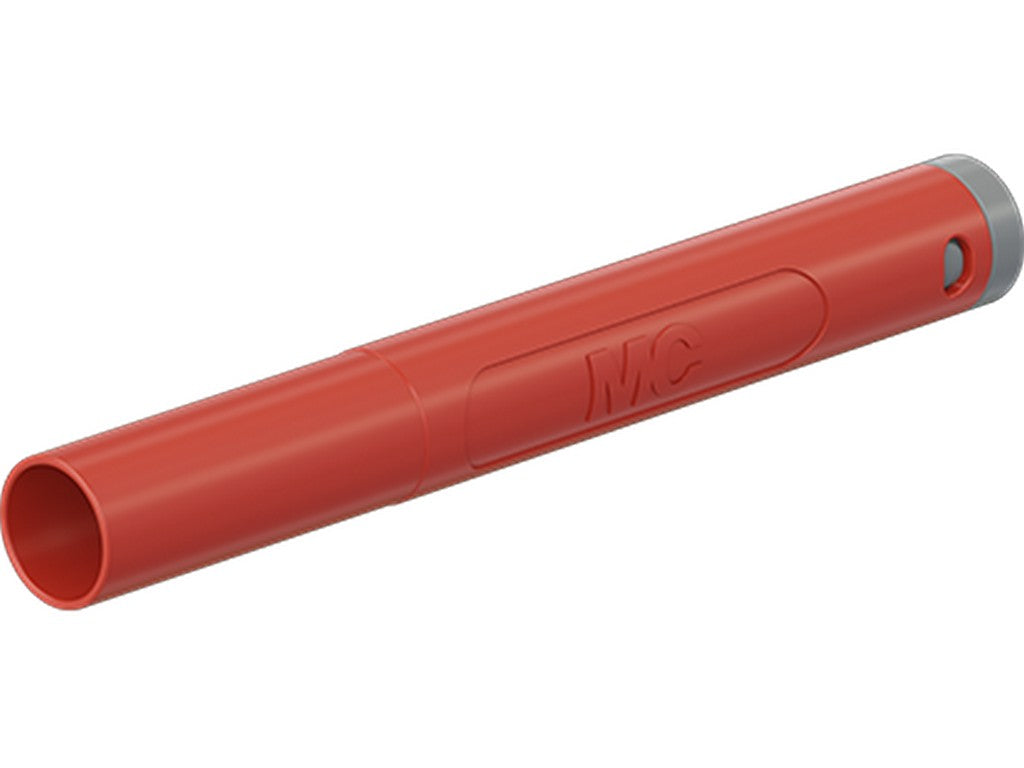

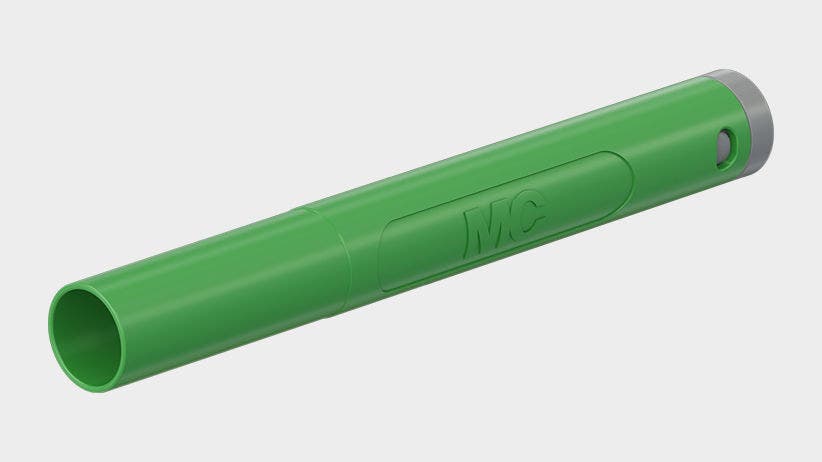

STAUBLI SACR25-4A-39-TW
The SACR25-4A-39-TW is a straight, extra-slim laboratory plug for 4 mm systems. It is used when you want to assemble test leads yourself with a crimp connection, and where you also want a compact plug with a fixed insulating sleeve.
In practice, it is a plug for measuring and test equipment where both safety and good contact are required. The spring-loaded MULTILAM contact helps to ensure a stable electrical connection, and the gold-plated contact surface is chosen for the electrical contact.
The plug is designed for conductors up to Ø 3.9 mm / 2.5 mm² and is rated with nominal values of 1000 V, CAT II, 32 A, and 600 V, CAT III, 32 A. This makes it suitable for professional test setups where work is carried out within the specified voltage and current limits.
Stäubli lists the item under item number 66.2045-* and documents it as a test accessory according to IEC EN 61010-031.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 662045-22
- Product designation: SACR25-4A-39-TW
- Type: in-line laboratory plug, extra slim
- Contact diameter: 4 mm
- For self-assembly of test leads
- Crimp connection
- Rigid insulating sleeve
- Spring-loaded MULTILAM contact
- Conductor cross-section: up to 2.5 mm²
- Conductor diameter: up to Ø 3.9 mm
- Rated voltage: 1000 V CAT II / 600 V CAT III
- Rated current: 32 A
- Contact material: CuZn
- Contact plating: Au
- Test accessory acc. to IEC EN 61010-031
- Manufacturer's datasheet: 66.2045_en.pdf
