STAUBLI 662045-21

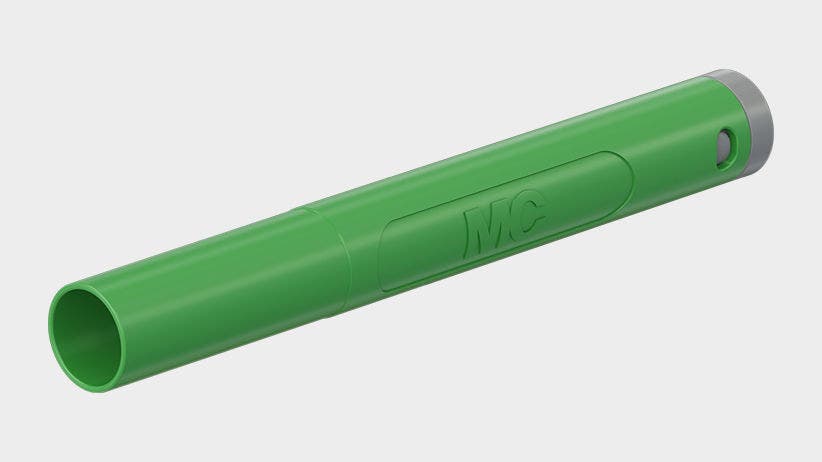

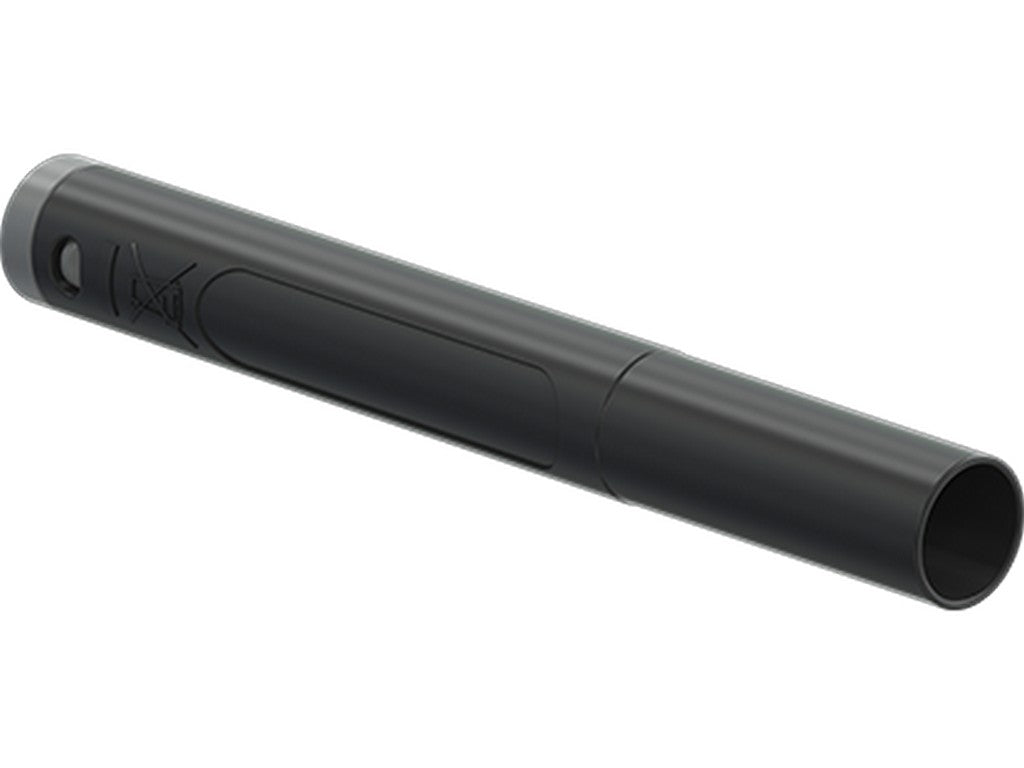

STAUBLI 662045-21 is a straight, extra-slim Ø4 mm plug for assembling test leads. It is used when assembling test leads yourself with a crimp connection, and where a firm and compact plug connection is needed in measuring equipment and test environments.
The plug is built with a spring-loaded MULTILAM contact and a rigid insulating sleeve. In practice, this means it is designed for a secure contact surface and more robust handling in daily use. The contact's base material is CuZn with a gold surface, which is relevant in contexts where a stable contact surface is desired in a test connection.
It belongs to test accessories according to IEC EN 61010-031 and has UR approval. The rated values are 1000 V, CAT II, 32 A and 600 V, CAT III, 32 A.
See datasheet from the manufacturer
Typical applications
- Self-assembly of test leads
- Test and measurement tasks in electrical engineering
- Connections where a Ø4 mm plug solution is desired
Specifications
- Manufacturer: STAUBLI
- MPN: 662045-21
- Product: SACR25-4A-39-TW
- Item number: 66.2045-*
- Type: in-line, extra-slim Ø4 mm plug
- Connection: crimp connection
- Insulation: rigid insulating sleeve
- Contact: spring-loaded MULTILAM
- Outer diameter: 8.0 mm
- Base material, electrical contact: CuZn
- Surface treatment, electrical contact: Au
- Rated data: 1000 V, CAT II, 32 A
- Rated data: 600 V, CAT III, 32 A
- Standard: IEC EN 61010-031
- Approval: UR
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
